2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE

Connector Locations

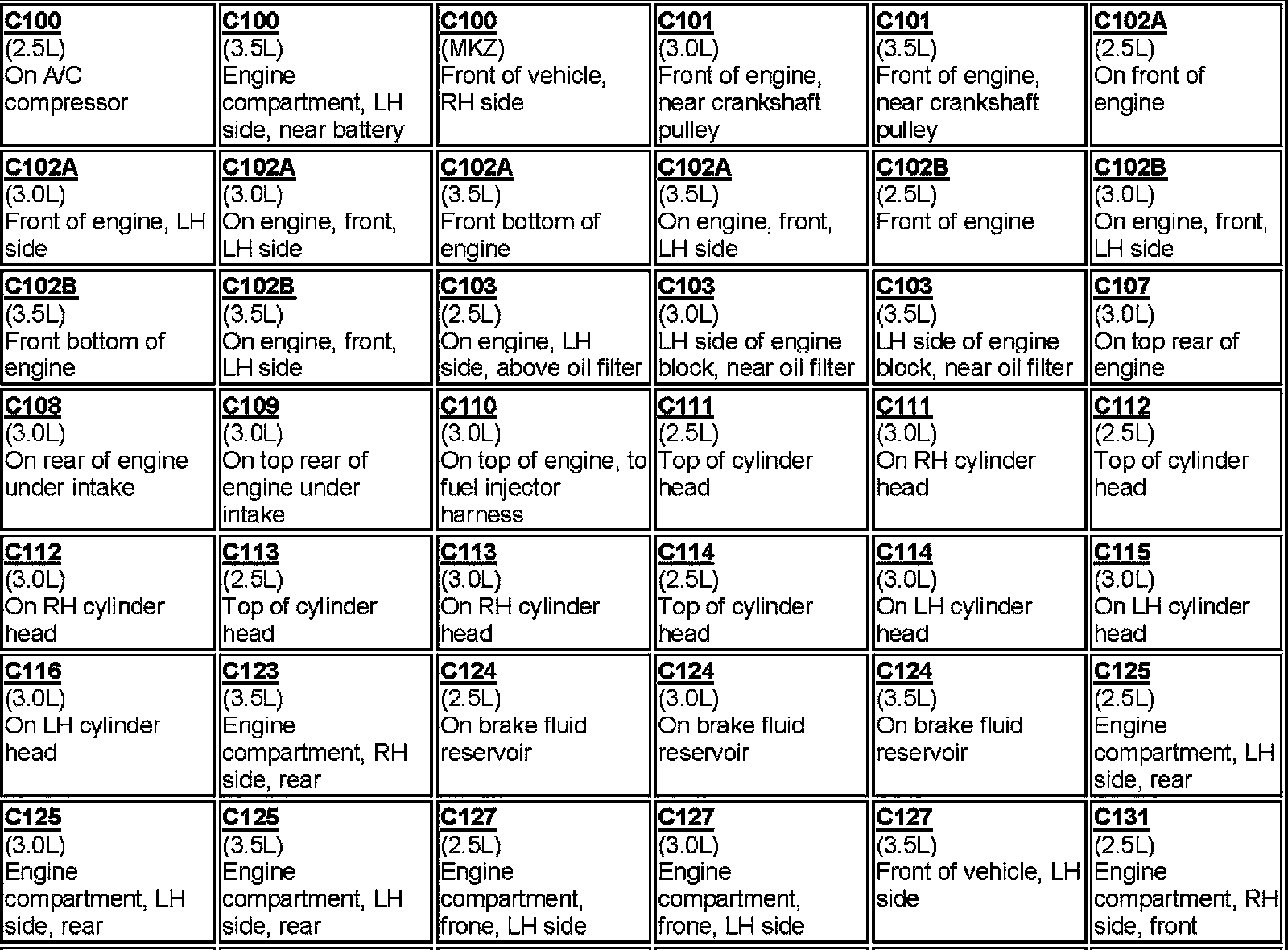

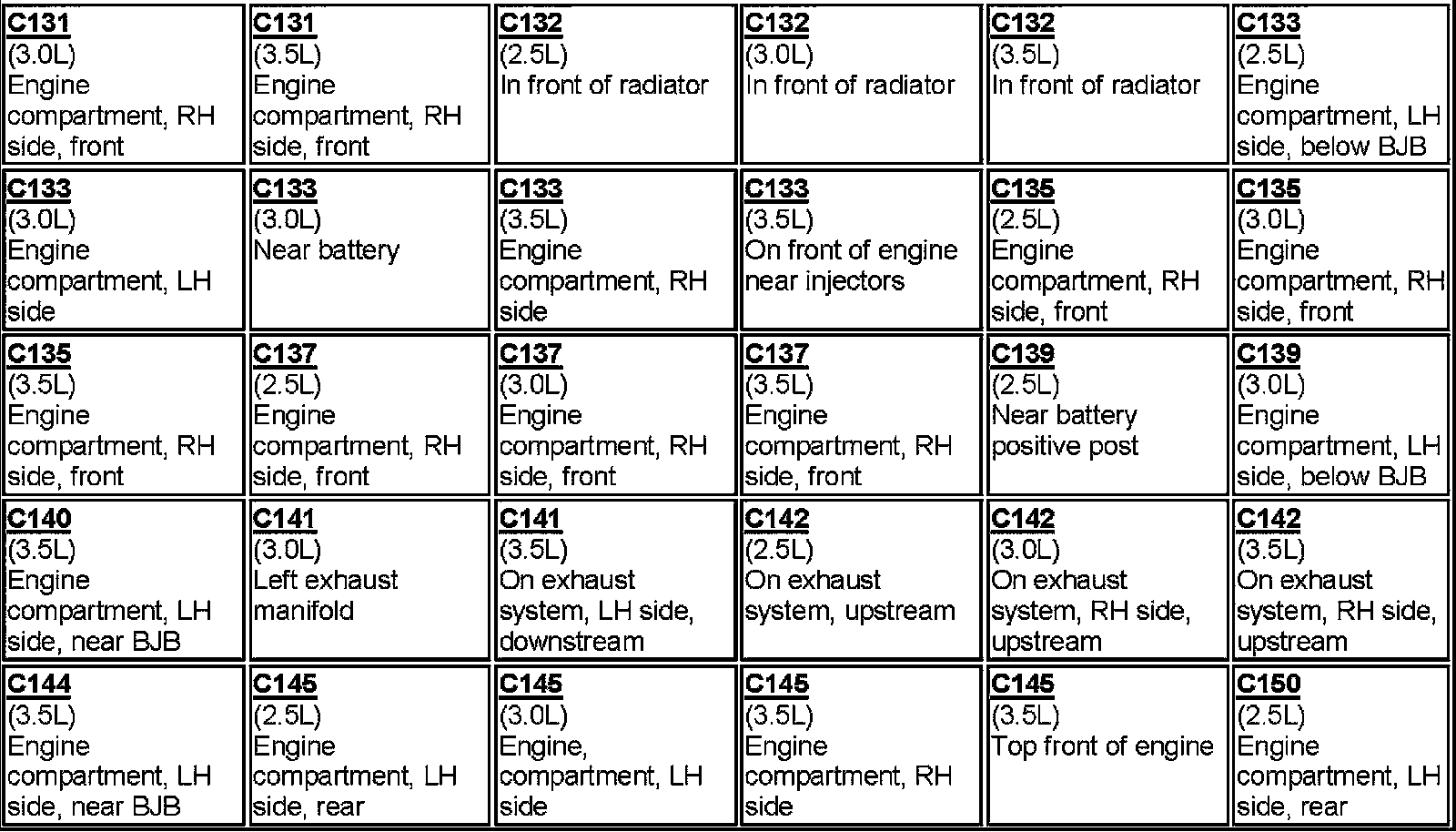

C100-C131:

Factory service manual diagram

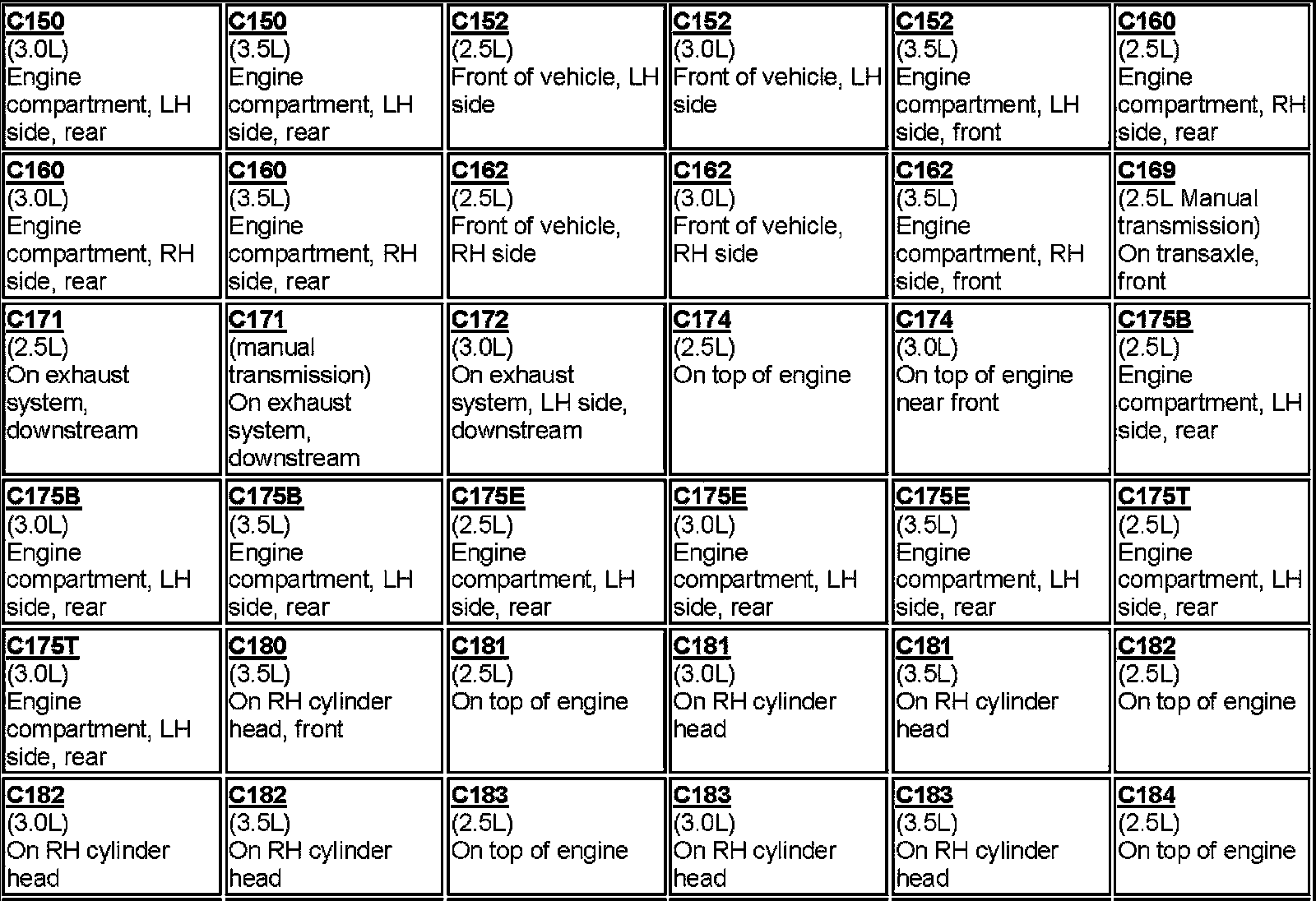

C131-C150:

Factory service manual diagram




C150-C184:

Factory service manual diagram

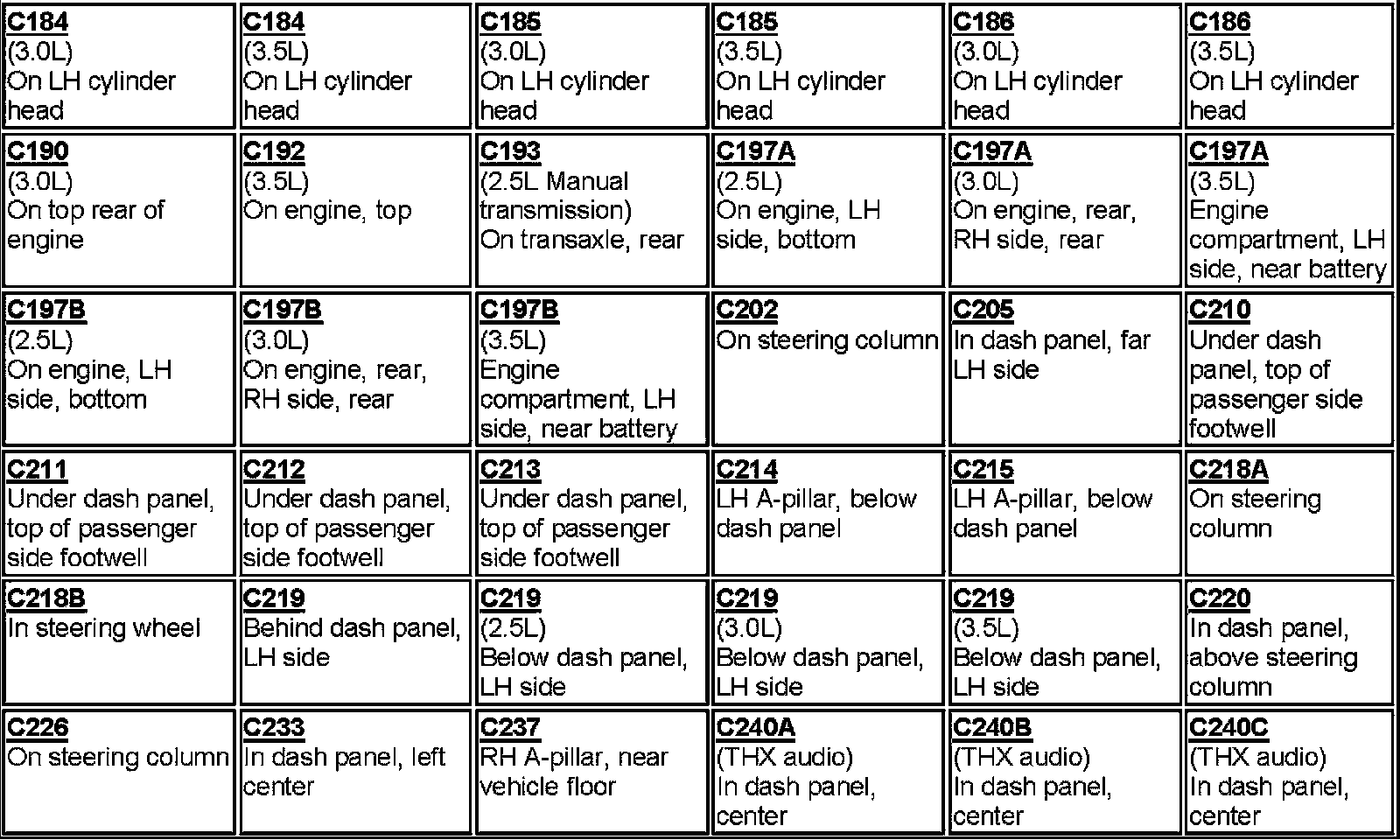

C184-C240C:

Factory service manual diagram

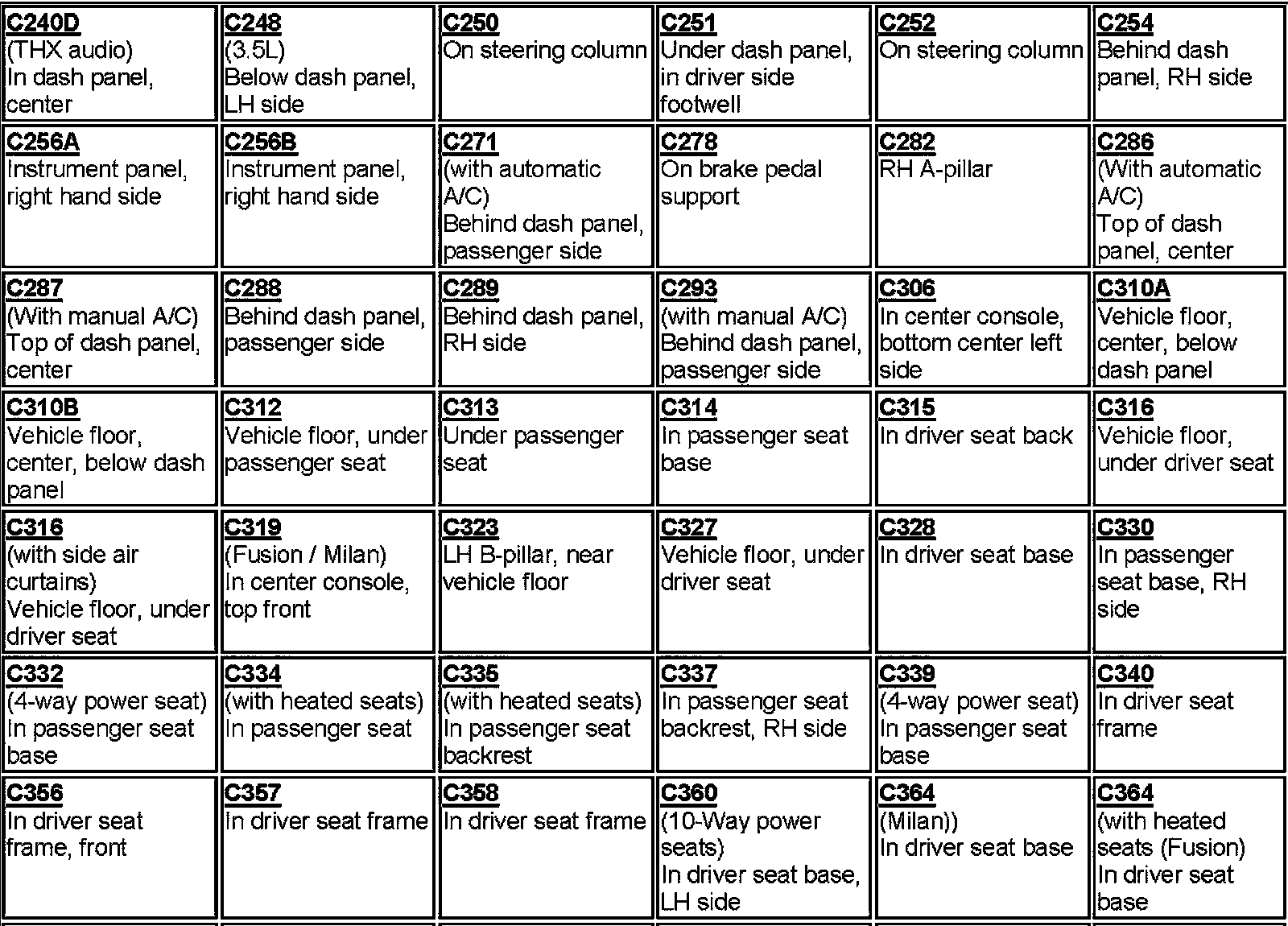

C240D-C364:

Factory service manual diagram

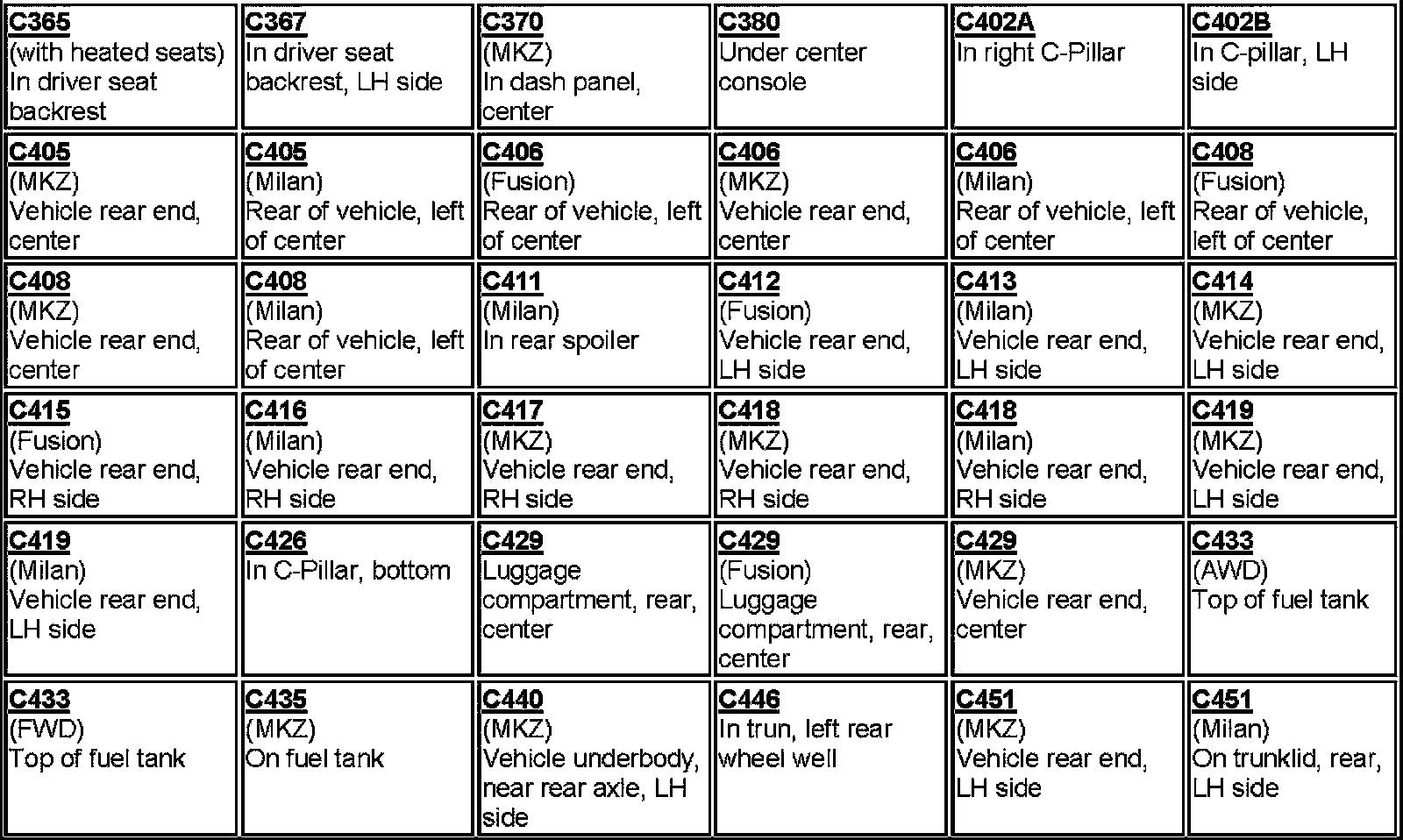

C365-C451:

Factory service manual diagram

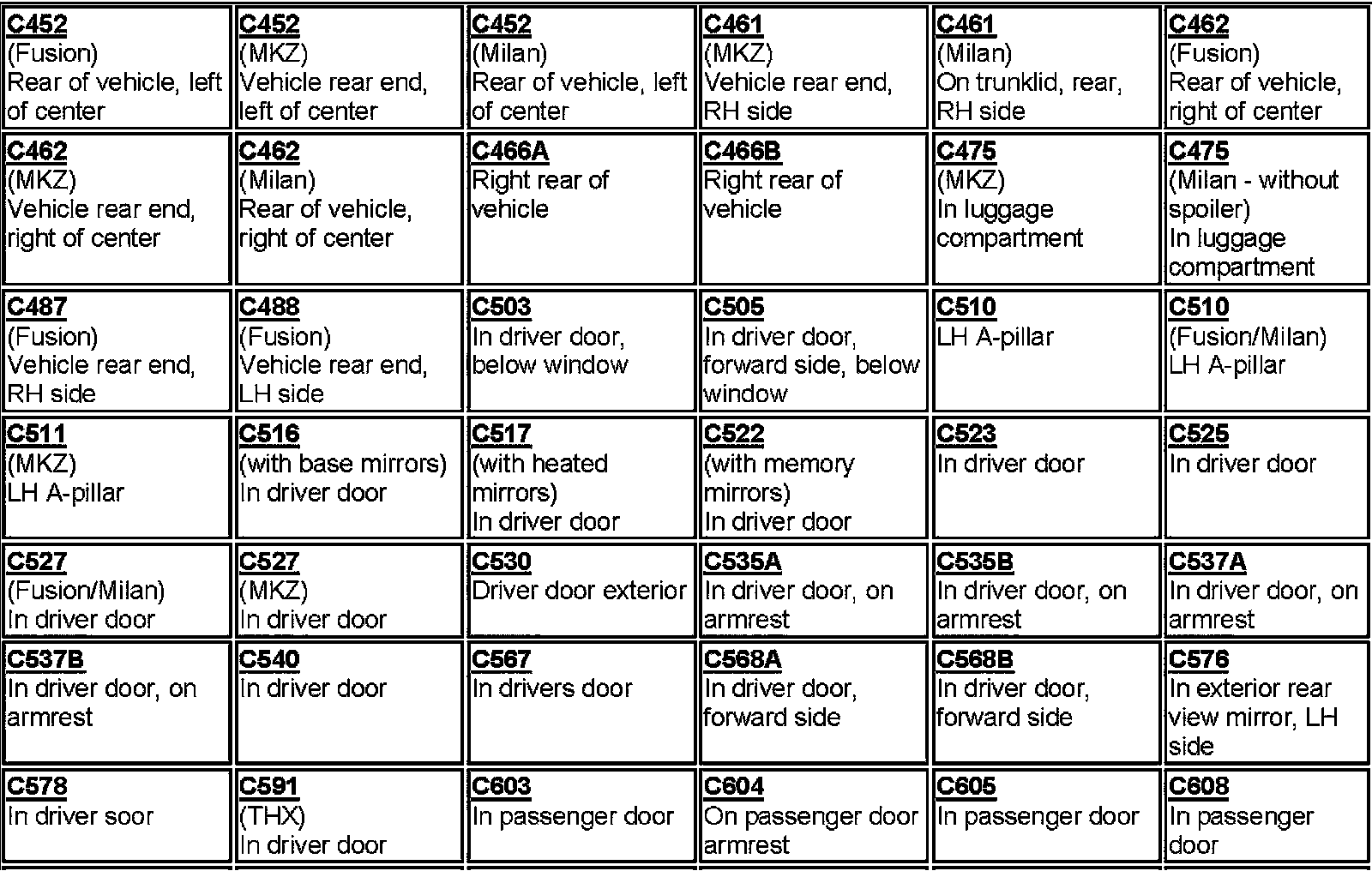

C452-C608:

Factory service manual diagram

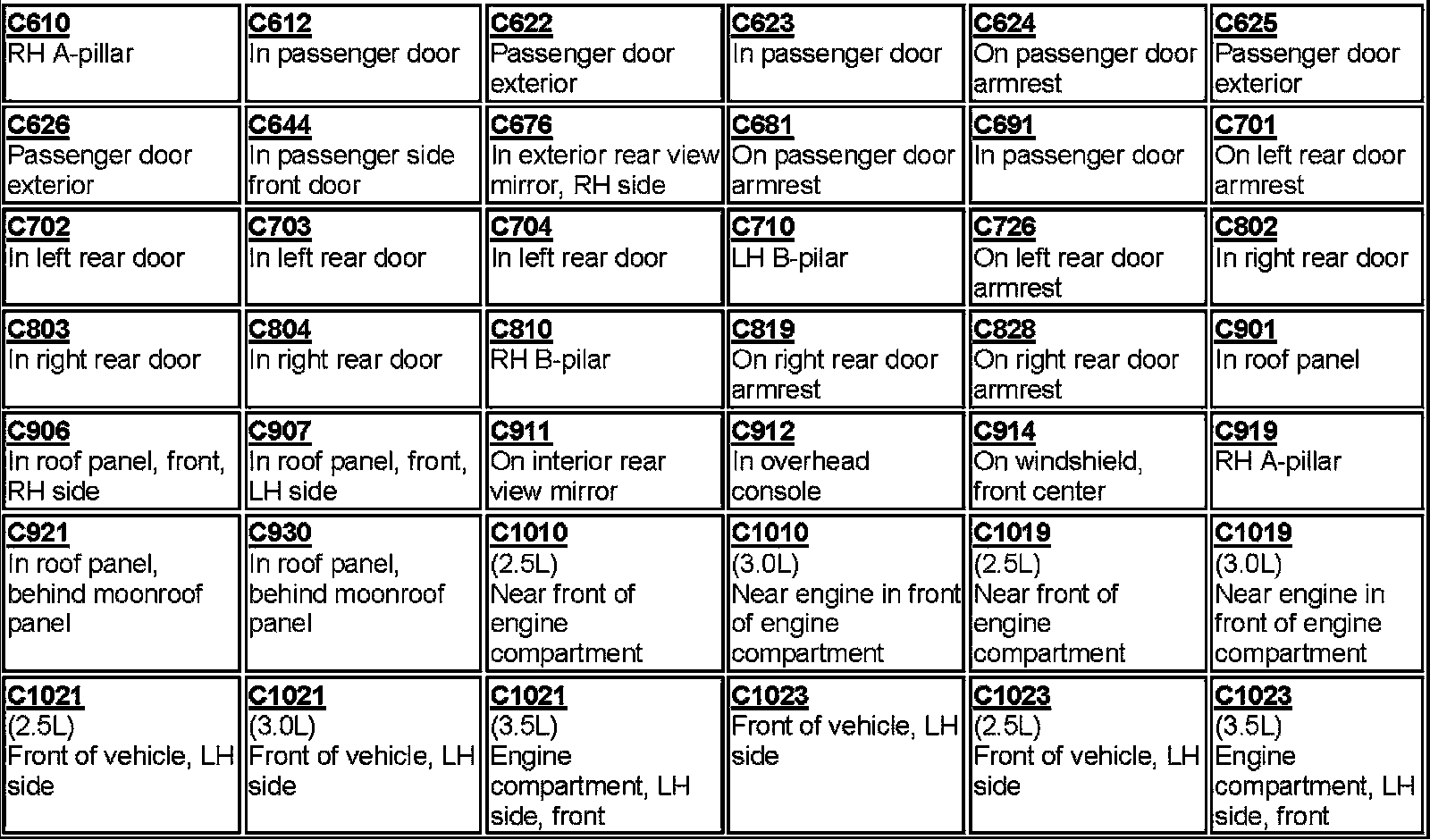

C610-C1023:

Factory service manual diagram

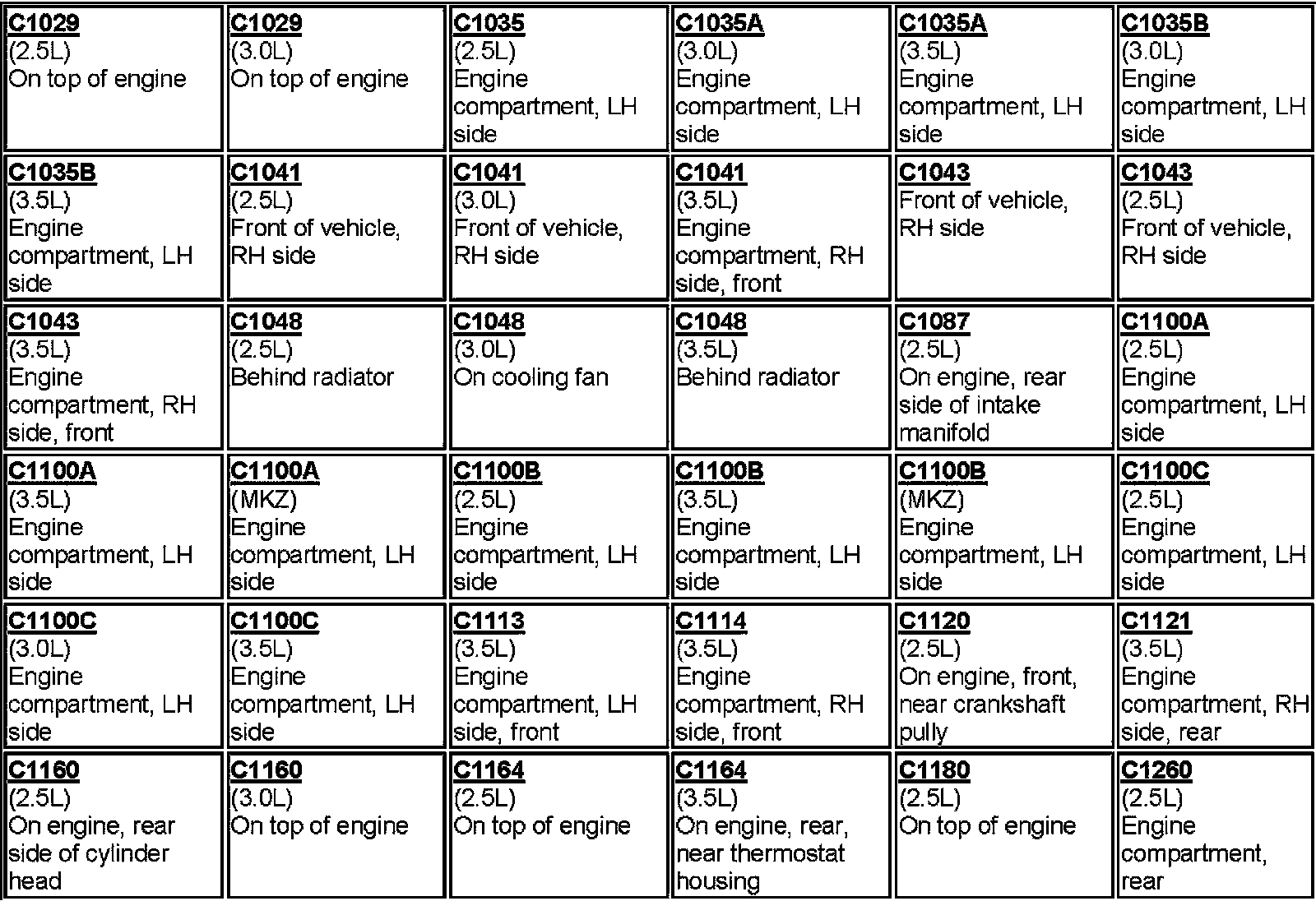

C1029-C1260:

Factory service manual diagram

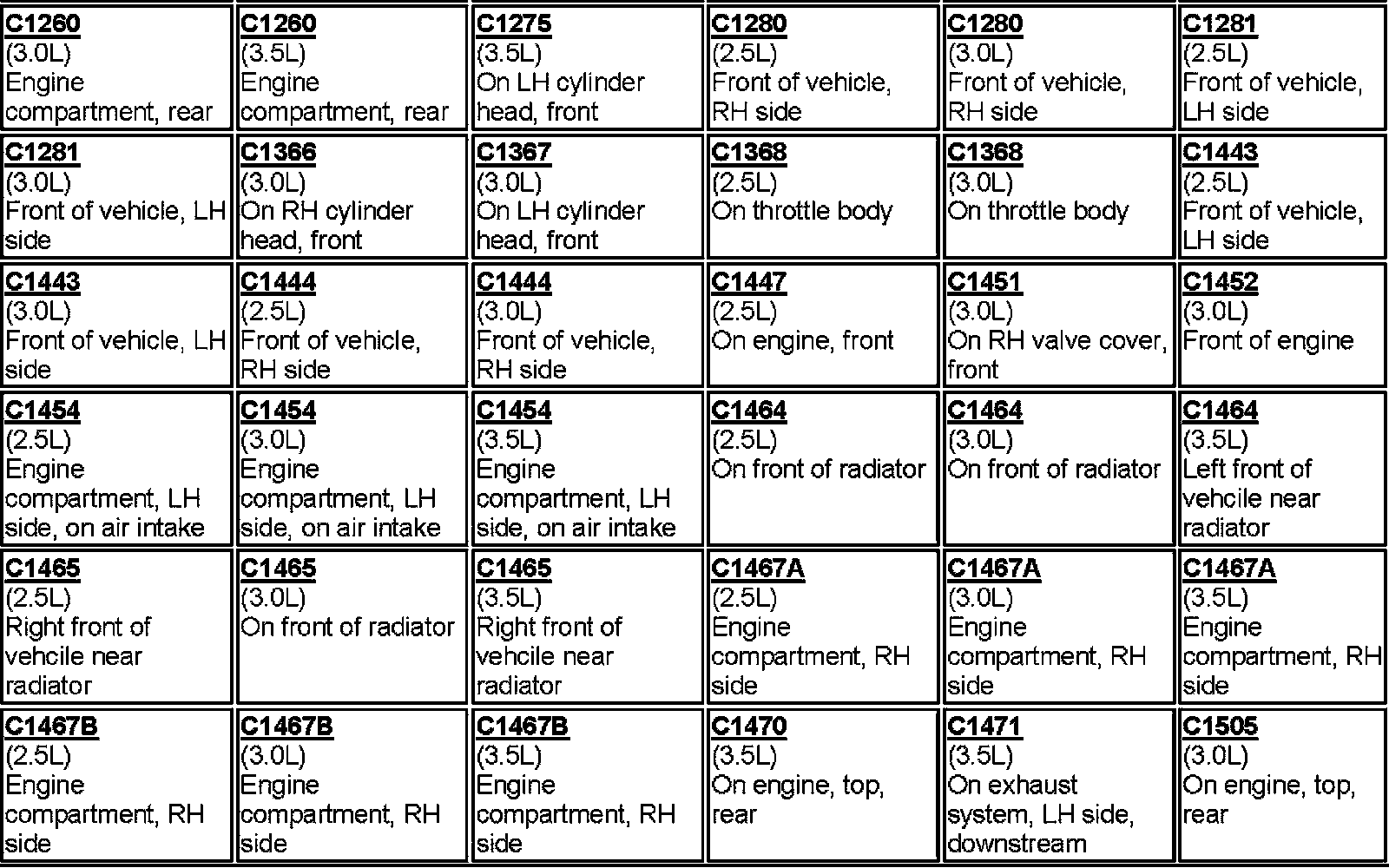

C1260-C1505:

Factory service manual diagram

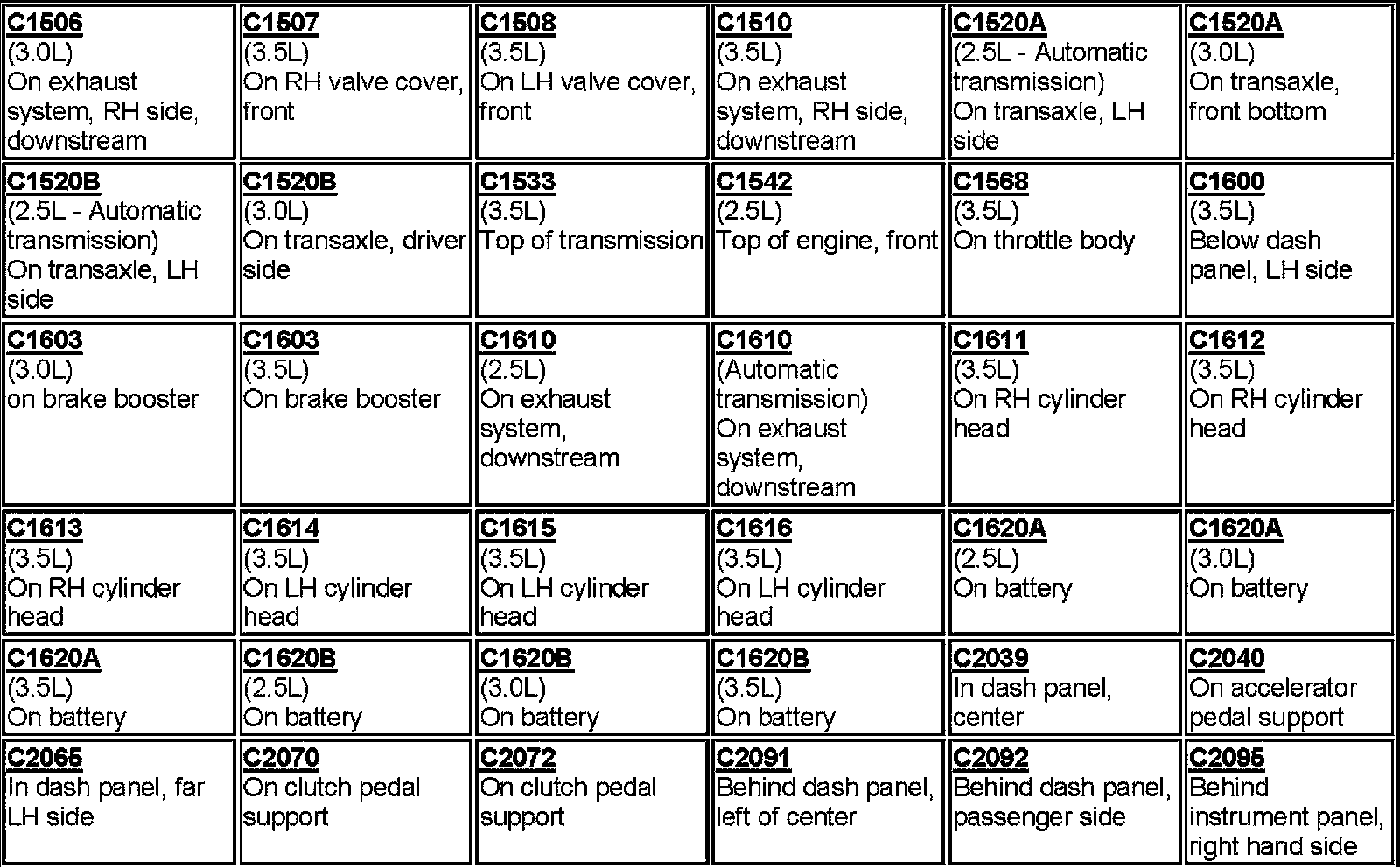

C1506-C2095:

Factory service manual diagram

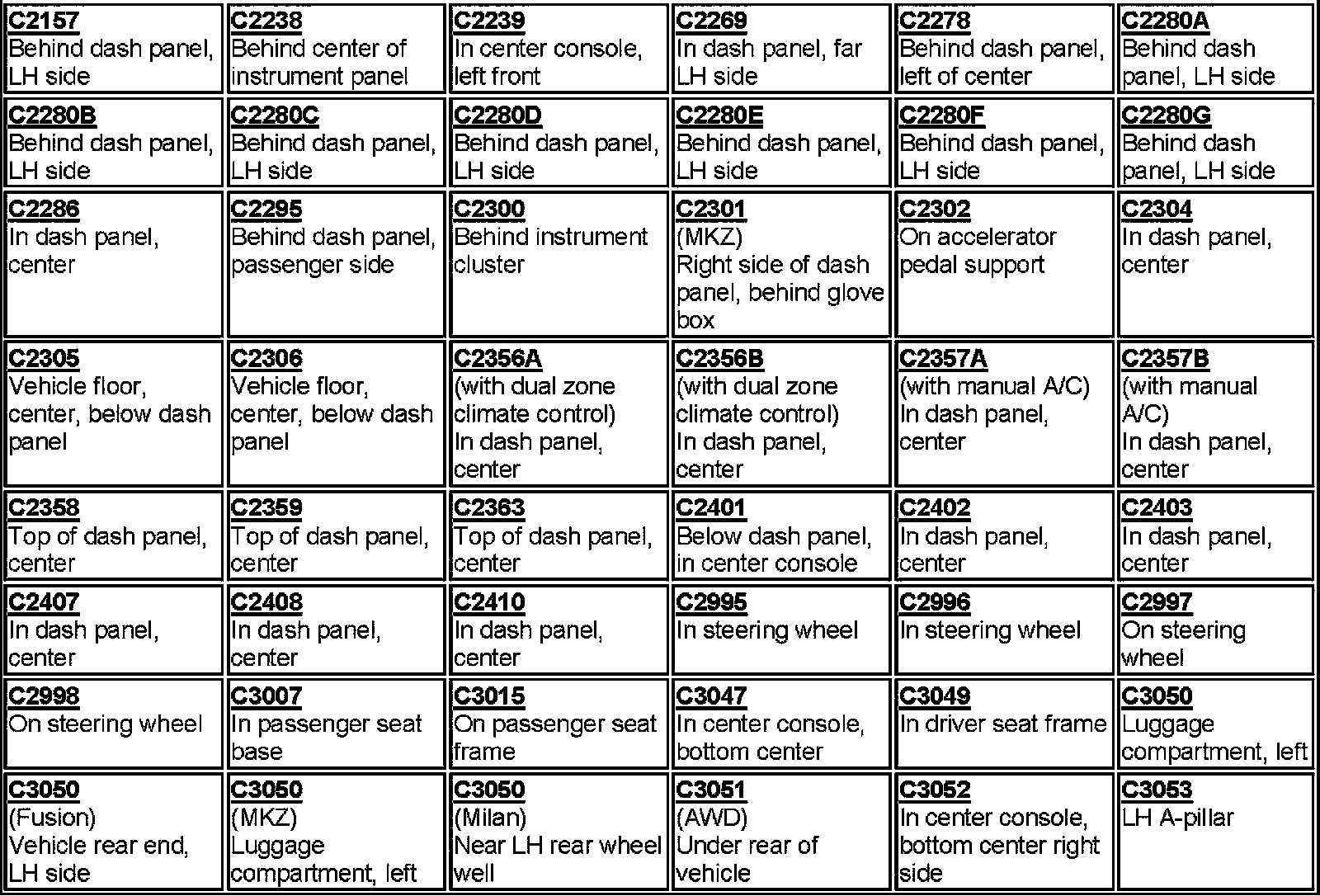

C2157-C3053:

Factory service manual diagram

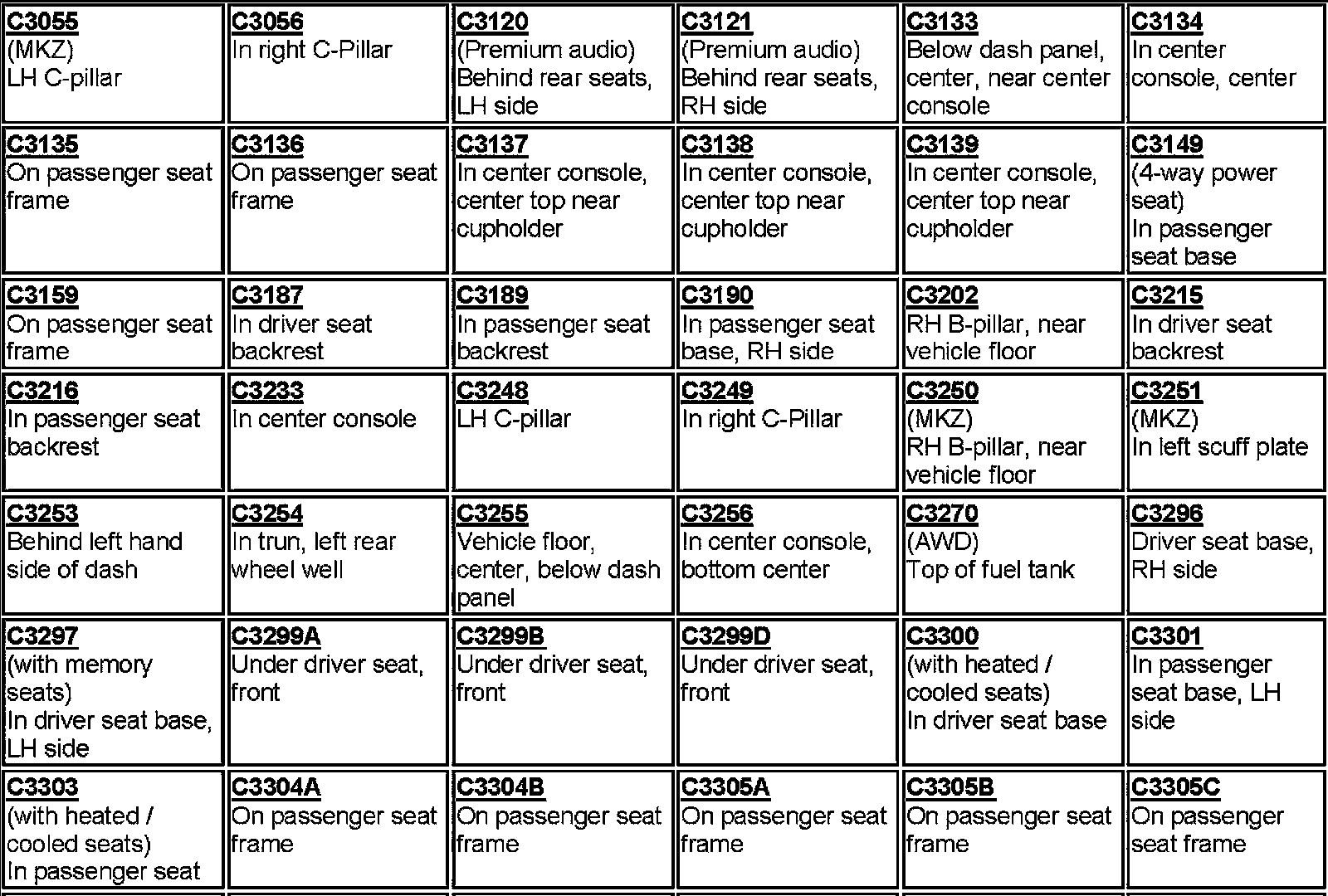

C3055-C3305C:

Factory service manual diagram

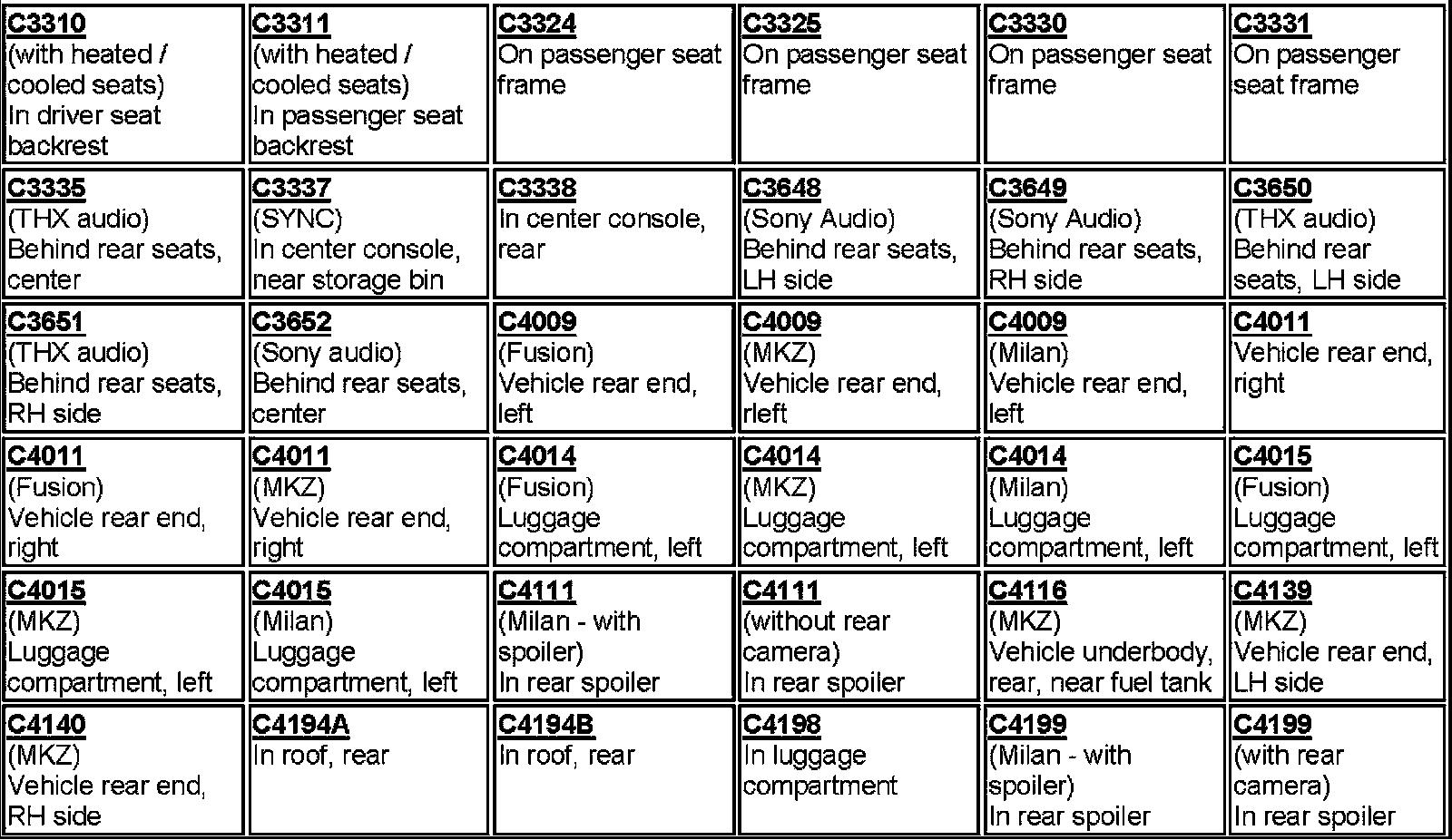

C3310-C4199:

Factory service manual diagram

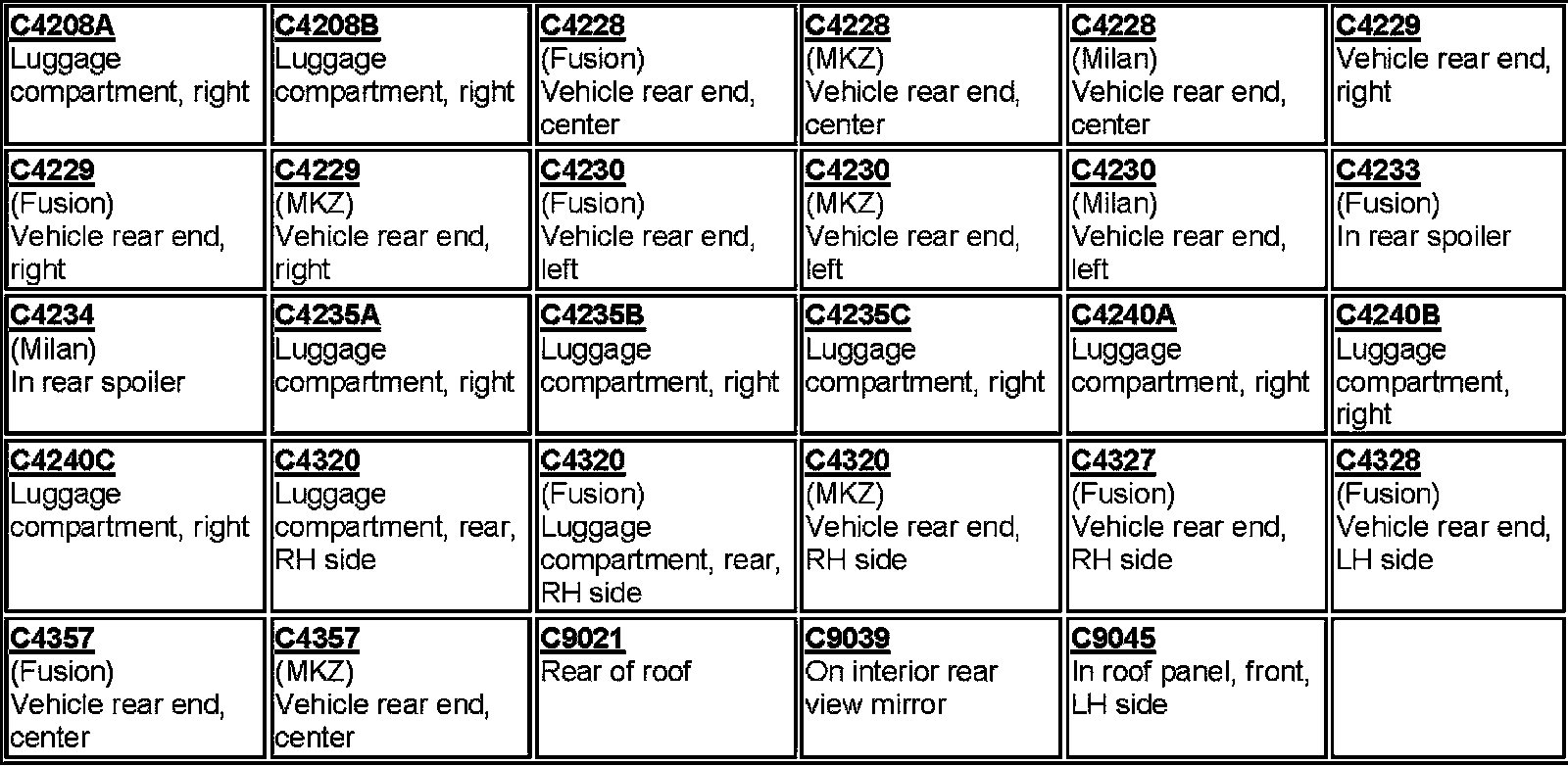

C4208A-C9045:

Factory service manual diagram
