2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Dual Climate Controlled Seat Module (DCSM)
Dual Climate Controlled Seat Module (DCSM)
Removal

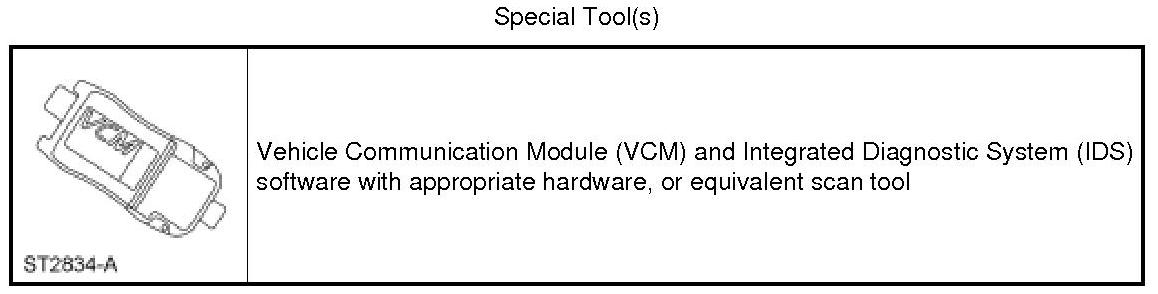

NOTE: When installing a new Dual Climate Controlled Seat Module (DCSM), it is necessary to carry out the Programmable Module Installation (PMI) procedure. For additional information, refer to Module Configuration [1][2]Initial Inspection and Diagnostic Overview. Programmable Module Installation (PMI)
1. Before removing the DCSM, carry out the appropriate steps in the Programmable Module Installation (PMI) procedure. For additional information, refer to Module Configuration [1][2]Initial Inspection and Diagnostic Overview. Programmable Module Installation (PMI)
2. Remove the front passenger seat. For additional information, refer to Seat - Front Seat - Front.
3. Remove the DCSM from the cushion electrical bracket.
- Release the locking wedges and disconnect the 3 DCSM electrical connectors.
- Remove the 2 rivets and DCSM.
Installation
1. Install the DCSM to the seat.
- Position the DCSM to the electrical bracket and install 2 new rivets.
- Connect the 3 DCSM electrical connectors and locking wedges.
2. Install the front seat. For additional information, refer to Seat - Front Seat - Front.
3. After installing the DCSM, carry out the appropriate steps in the Programmable Module Installation (PMI) procedure. For additional information, refer to Module Configuration [1][2]Initial Inspection and Diagnostic Overview. Programmable Module Installation (PMI)
