Power Seat Control Module: Service and Repair

Driver Seat Module (DSM)













Removal and Installation

NOTICE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

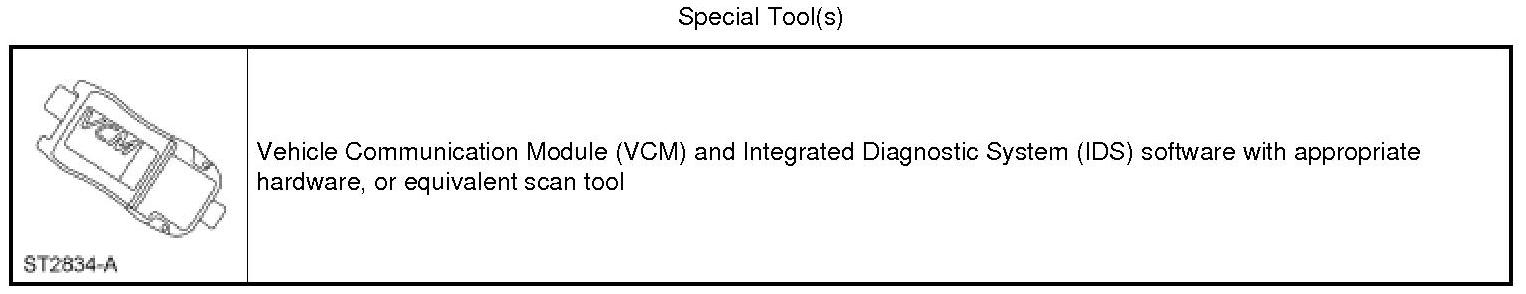

NOTE: Prior to the removal of the module, it is necessary to upload the module configuration information to the appropriate scan tool. This information needs to be downloaded into the new module once installed. For additional information, refer to Module Configuration [1][2]Initial Inspection and Diagnostic Overview.

1. NOTE: This step is necessary only if the Driver Seat Module (DSM) is being replaced.

Upload the module configuration information from the DSM into the scan tool. For additional information, refer to Module Configuration [1][2]Initial Inspection and Diagnostic Overview.

2. Remove the driver seat. For additional information, refer to Seating Seat - Front.

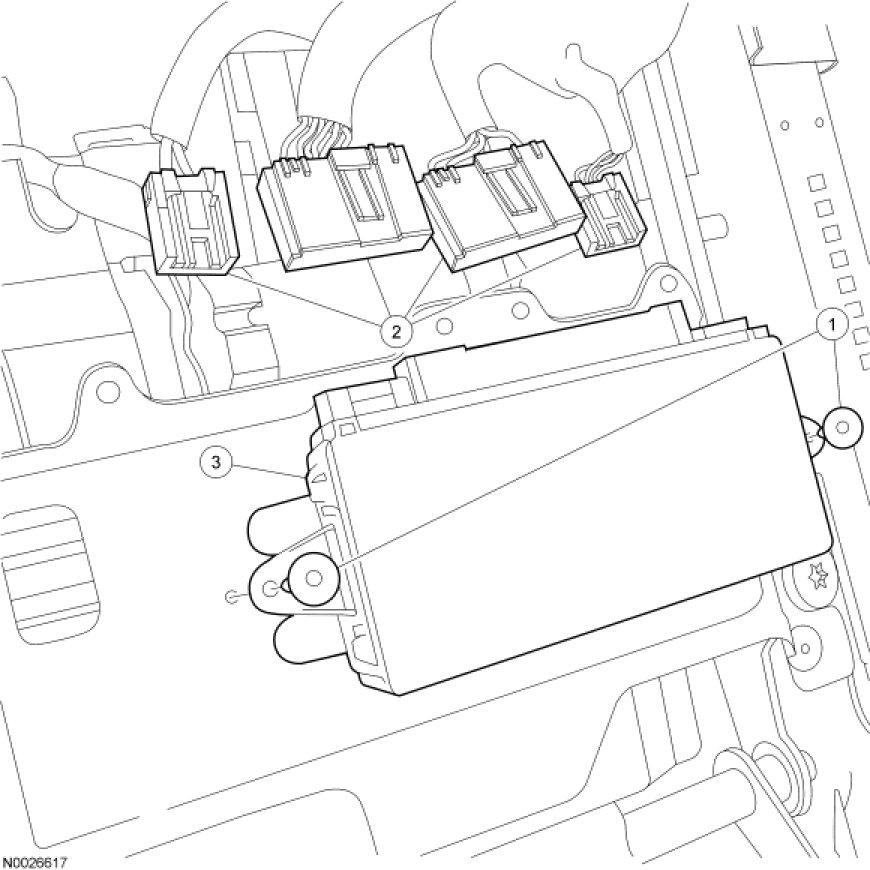

3. Drill out the 2 rivets.

4. Disconnect the 4 electrical connectors and remove the DSM.

5. To install, reverse the removal procedure.

- NOTE: If the DSM was not replaced, this substep is not necessary.

Download the DSM configuration from the scan tool into the new DSM. For additional information, refer to Module Configuration [1][2]Initial Inspection and Diagnostic Overview.
