Pinpoint Test KB: Fuel Pump Driver Module (FPDM): Introduction
This pinpoint test is intended to diagnose the following:

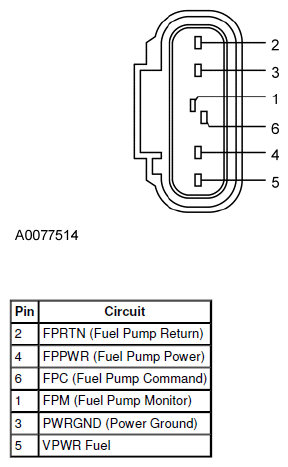

- fuel pump driver module (FPDM) (9D370) and (9D372)
- FPDM power supply relay
- inertia fuel shutoff (IFS) switch (9341)
- harness circuits: B+, GND, FPC, FPM, FPM2, FP PWR, FP2PWR, FP RTN, FP2RTN, VPWR Fuel, VPWR Fuel 2, and PWRGND
- powertrain control module (PCM) (12A650)
