2010 Mercury Mariner 2WD V6-3.0LFACTORY OEM SERVICE PROCEDURE
NVH Shield
NVH Shield
Transaxle NVH Shield

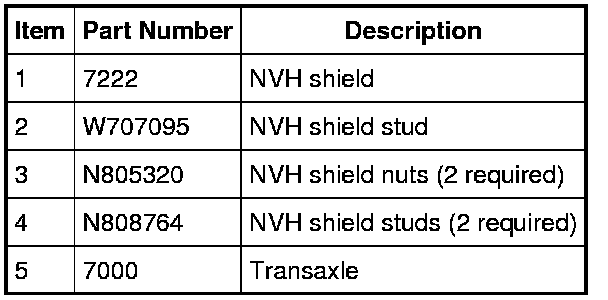

1. Disable the high voltage electrical system. For additional information, refer to Hybrid Drive Systems.

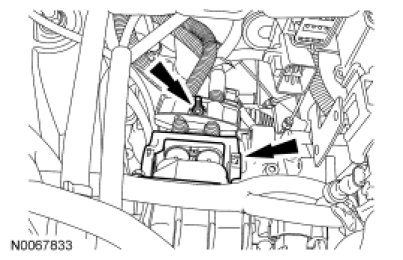

2. Remove the rear transmission insulator bracket. For additional information, refer to Transaxle Support Insulator - Rear Rear.

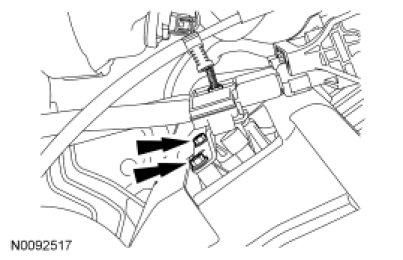

3. Remove the wiring harness retainer and selector lever cable from the studs.

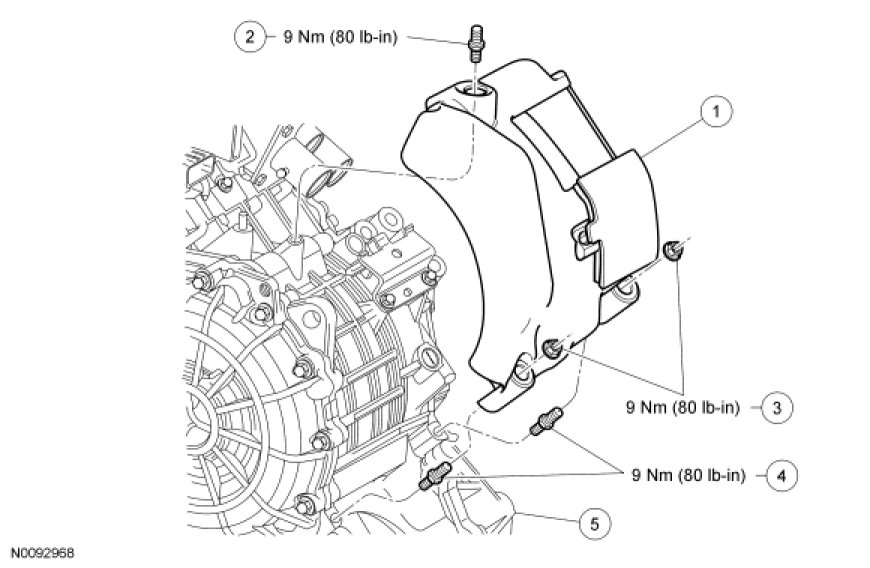

4. Remove the NVH shield stud.
- To install, tighten to 9 Nm (80 lb-in).
5. Remove the 2 transaxle harness electrical connector bracket bolts.
- To install, tighten to 9 Nm (80 lb-in).

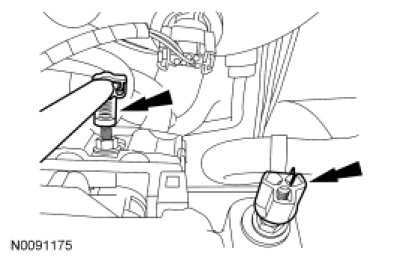

6. Remove the stud bolt and disconnect the transaxle harness electrical connector.
- To install, tighten to 10 Nm (89 lb-in).

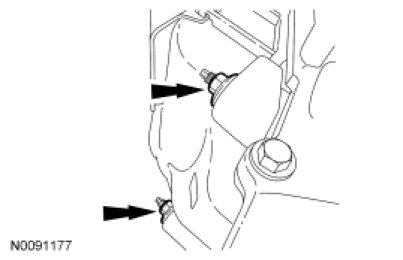

7. Remove the 2 nuts from the bottom of the NVH shield.
- To install, tighten to 9 Nm (80 lb-in).
8. Remove the NVH shield.
9. To install, reverse removal procedure.
