2009 Mercury Sable Base, AWDFACTORY OEM SERVICE PROCEDURE
Main Control: Notes
MATERIAL
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

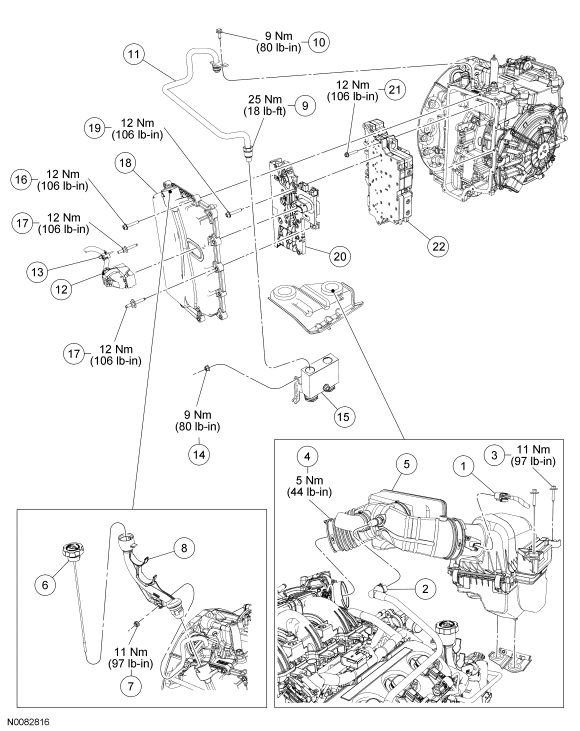

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Electrical connector - Mass Air Flow (MAF) sensor |
| 2 | 6758 | Tube assembly - crankcase vent |
| 3 | N606678 | Bolt - Air Cleaner (ACL) bracket |
| 4 | 9C632 | Clamp - ACL outlet pipe |
| 5 | 9C662 | ACL assembly |
| 6 | 7A020 | Transmission fluid level indicator |
| 7 | W520101 | Transmission fluid filler tube nut |
| 8 | 7A228 | Transmission fluid filler tube |
| 9 | - | Nut - transmission fluid cooler tube (part of 7H420) |
| 10 | W711538 | Bolt - transmission fluid cooler tube |
| 11 | 7H420 | Tube - transmission fluid cooler |
| 12 | 7A488 | Connector - transaxle harness |
| 13 | 14A169 | Retainer - transaxle harness |
| 14 | W520101 | Nut - bypass valve |
| 15 | 7H322 | Valve - transaxle fluid cooler bypass |
| 16 | 7J289 | Bolt - main control cover (11 required) |
| 17 | W708442 | Studbolts - main control cover (3 required) |
| 18 | 7G004 | Cover - main control |
| 19 | 7J291 | Bolt - solenoid body |
| 20 | 7Z369 | Solenoid body |
| 21 | 7J291 | Bolt - valve body |
| 22 | 7A100 | Valve body |
