2007 Mercury MontereyFACTORY OEM SERVICE PROCEDURE

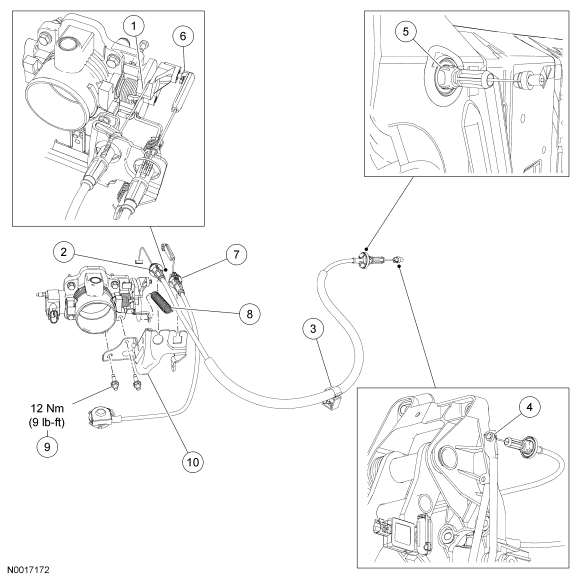

Accelerator Control System Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 9A758 | Accelerator cable-to-throttle body |
| 2 | 9A758 | Accelerator cable grommet |
| 3 | - | Accelerator cable retaining clip |
| 4 | 9A758 | Accelerator cable-to-pedal |
| 5 | 9A758 | Accelerator cable-to-dash panel |
| 6 | 9A825 | Speed control cable-to-throttle body |
| 7 | 9A825 | Speed control cable |
| 8 | 9E894 | Throttle control return spring |
| 9 | N811881 | Accelerator cable bracket bolts (2 required) |
| 10 | 9278 | Accelerator cable bracket |
- For additional information, refer to the following procedures.
