2007 Mercury MontereyFACTORY OEM SERVICE PROCEDURE

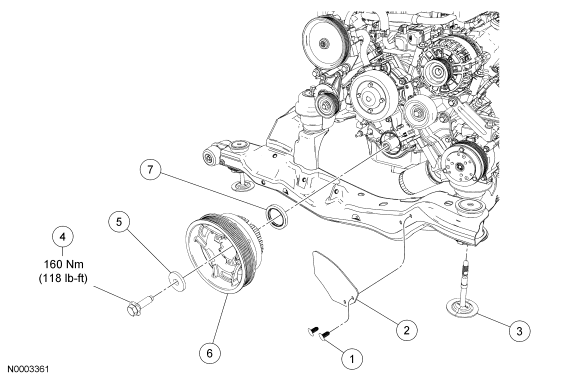

Lower End Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 388930 | Pin-type retainer (2 required) |
| 2 | 16102 | Shield |
| 3 | N808852 | Subframe bolt (2 required) |
| 4 | 6A340 | Crankshaft pulley bolt |
| 5 | 6378 | Crankshaft pulley washer |
| 6 | 6B321 | Crankshaft pulley |
| 7 | 6700 | Crankshaft front seal |

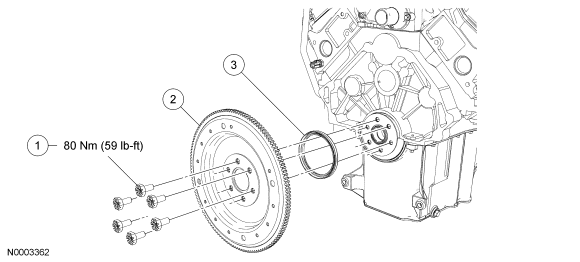

| Item | Part Number | Description |
|---|---|---|
| 1 | W707770 | Flexplate bolt (6 required) |
| 2 | 6375 | Flexplate |
| 3 | 6701 | Crankshaft rear seal |
- For additional information, refer to the following procedures.
