2007 Mercury MontereyFACTORY OEM SERVICE PROCEDURE

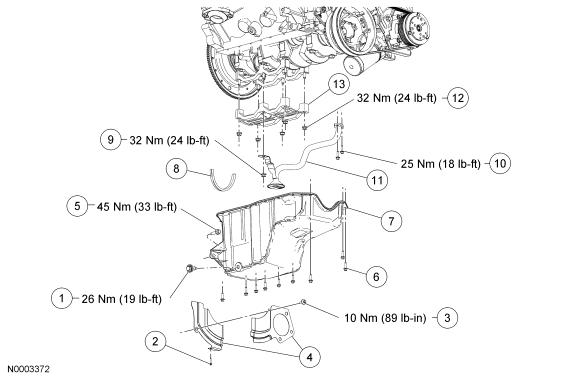

Engine Lubrication Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Drain plug and gasket (part of 6675) |
| 2 | - | Inspection cover pin-type retainer |
| 3 | N602728 | Inspection cover bolt |
| 4 | 7986 | Inspection cover |
| 5 | N606087 | Oil pan-to-transaxle bolt (3 required) |
| 6 | N605892 | Oil pan bolt (17 required) |
| 7 | 6675 | Oil pan |
| 8 | 6723 | Oil pan rear seal |
| 9 | W707494 | Oil screen and pickup tube nut |
| 10 | N801689 | Oil screen and pickup tube bolt |
| 11 | 6622 | Oil screen and pickup tube |
| 12 | W707494 | Oil pan baffle nut (5 required) |
| 13 | 6A835 | Oil pan baffle |
- For additional information, refer to the following procedures.
