2007 Mercury MontereyFACTORY OEM SERVICE PROCEDURE
Engine Front Cover: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Crankshaft Vibration Damper | 303-009 (T58P-6316-D) | |
| Remover, Crankshaft Vibration Damper | 303-176 (T82L-6316-B) | |
| Installer, Crankshaft Vibration Damper | 303-175 (T82L-6316-A) | |
| Remover, Oil Seal | 303-409 (T92C-6700-CH) | |
| Installer, Crankshaft Front Oil Seal | 303-335 (T82L-6316-A) | |
| Installer, Crankshaft Front Oil Seal | 303-474 (T94P-6701-AH) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Motorcraft Metal Surface Cleaner ZC-21 |
WSE-M5B392-A |
| Thread Sealant with PTFE TA-24 |
WSK-M2G350-A2 |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

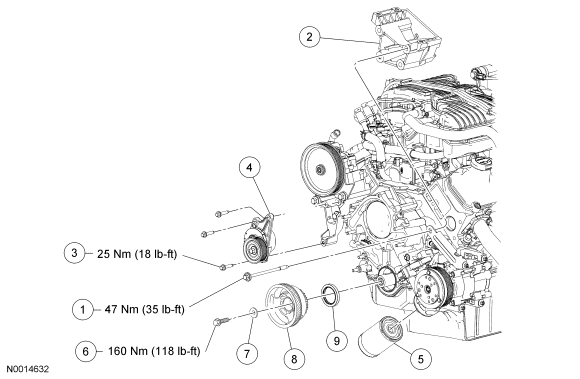

| Item | Part Number | Description |
|---|---|---|
| 1 | W707116 | Generator brace bolt |
| 2 | 10039 | Generator mounting bracket |
| 3 | W701625 | Accessory drive belt tensioner bolt (3 required) |
| 4 | 6B209 | Accessory drive belt tensioner |
| 5 | 6019 | Oil filter |
| 6 | 6A340 | Crankshaft pulley bolt |
| 7 | 6378 | Crankshaft pulley washer |
| 8 | 6B321 | Crankshaft pulley |
| 9 | 6700 | Crankshaft front oil seal |

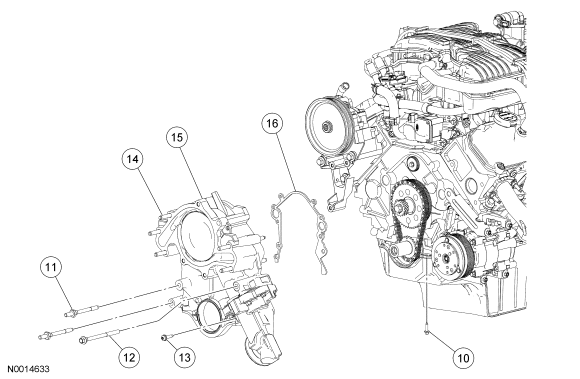

| Item | Part Number | Description |
|---|---|---|
| 10 | N605892 | Oil pan bolt (2 required) |
| 11 | N805112 | Engine front cover stud bolt (2 required) |
| 12 | N804839 | Engine front cover bolt |
| 13 | W701621 | Engine front cover cap screw |
| 14 | W708474 | Engine front cover stud (5 required) |
| 15 | 6019 | Engine front cover |
| 16 | 6020 | Engine front cover gasket |
