2007 Mercury Montego Base, AWDFACTORY OEM SERVICE PROCEDURE
Engine Lubrication Components - Exploded View

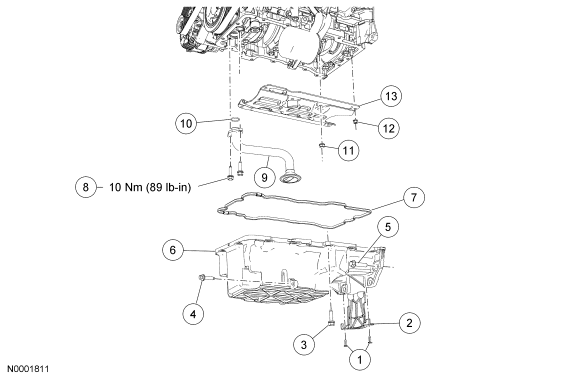

Fig 1: Exploded View Of Oil Pan, Oil Pump Screen & Pickup Tube, & Oil Pan Baffle With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | N811125 | Torque converter lower inspection cover pin-type retainers (2 required) |
| 2 | 7A828 | Torque converter lower inspection cover |
| 3 | W709678 | Oil pan-to-engine bolt (15 required) |
| 4 | W701232 | Oil pan-to-oil filter adapter bolt |
| 5 | W500121 | Oil pan-to-transaxle bolt (2 required) |
| 6 | 6676 | Oil pan |
| 7 | 6710 | Oil pan gasket |
| 8 | W709678 | Oil pump screen and pickup tube bolt (2 required) |
| 9 | 6622 | Oil pump screen and pickup tube |
| 10 | 6625 | Oil pump screen and pickup tube O-ring seal |
| 11 | W701582 | Oil pan baffle (M8) nut (4 required) |
| 12 | W701542 | Oil pan baffle (M6) nut (4 required) |
| 13 | 6687 | Oil pan baffle |

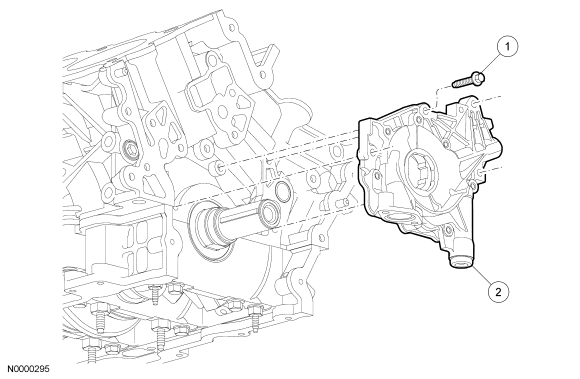

| Item | Part Number | Description |
|---|---|---|
| 1 | W500300-S | Oil pump bolt (4 required) |
| 2 | 6621 | Oil pump |
- For additional information, refer to the following procedures.
