2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Compression Check
AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.
Compression pressures are considered within specification if the lowest reading cylinder is at least 75 percent of the highest reading

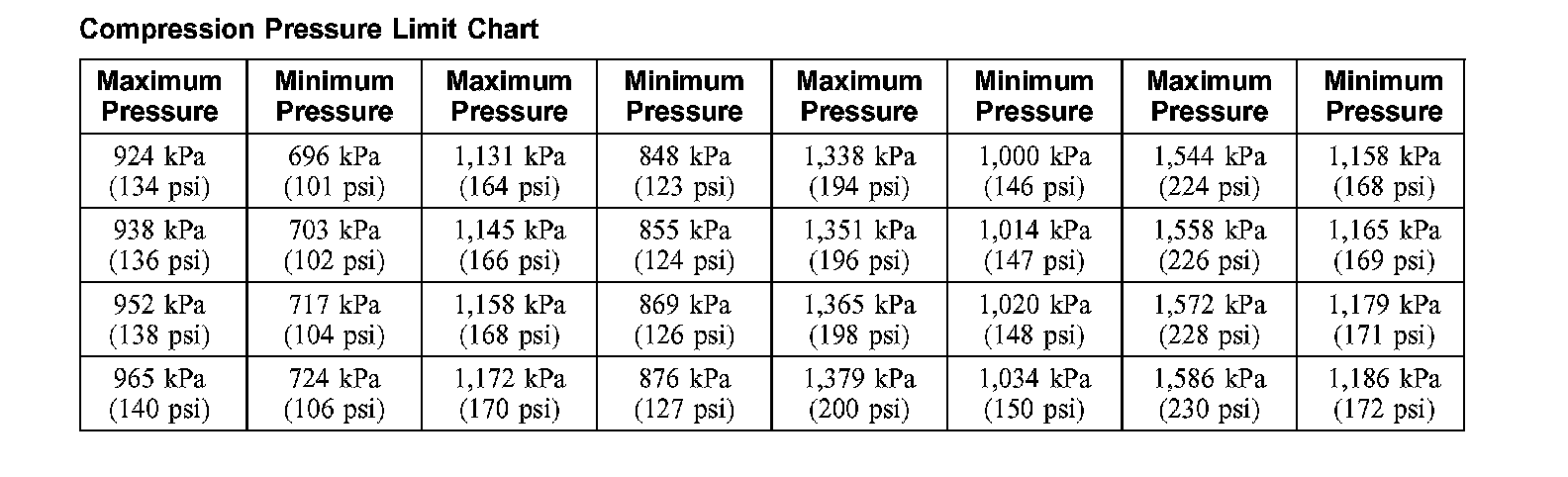

Compression Pressure Limit Chart (Part 1):

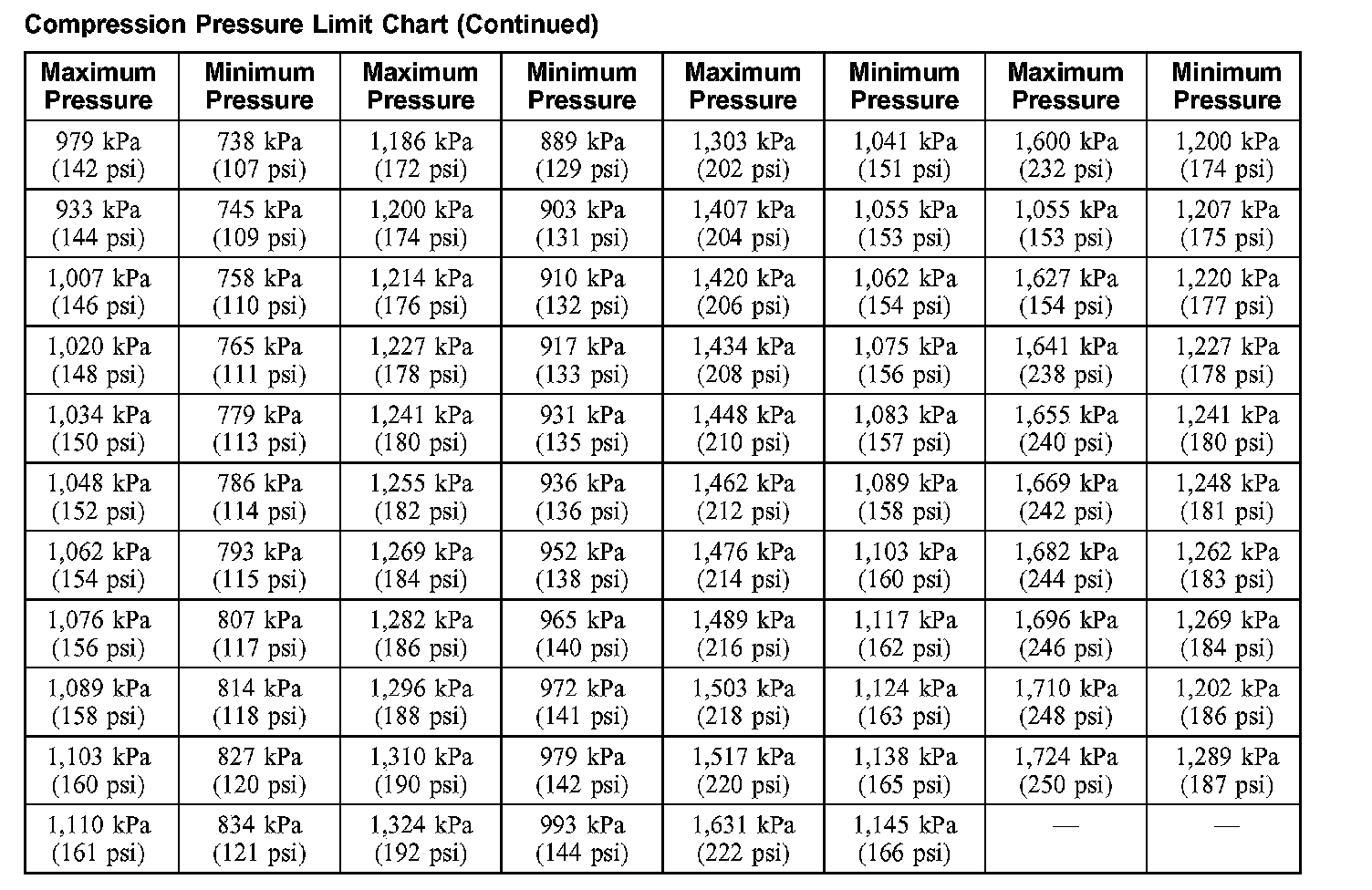

Compression Pressure Limit Chart (Part 2):
Compression pressures are considered within specification if the lowest reading cylinder is at least 75 percent of the highest reading
