2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Torque Specifications

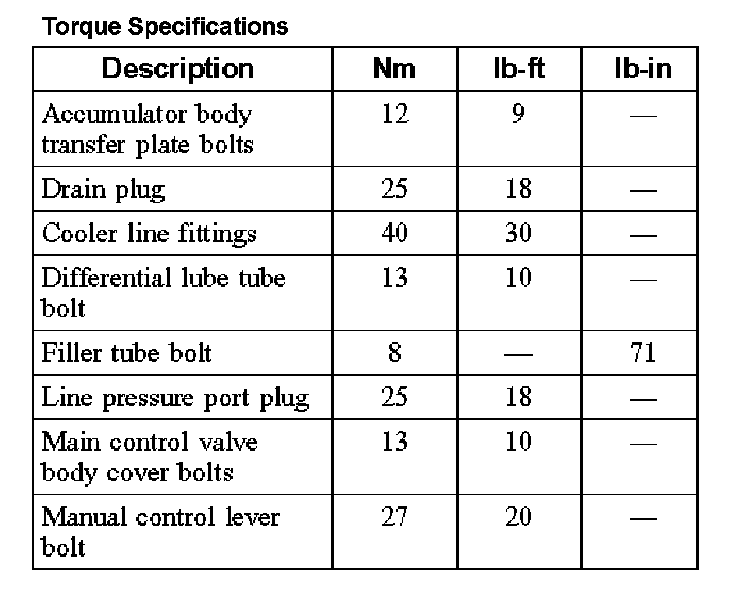

Torque Specifications (Part 1):

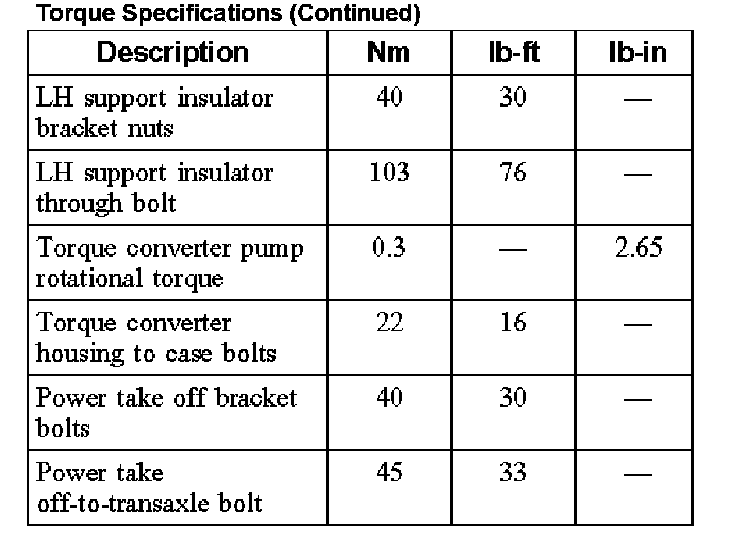

Torque Specifications (Part 2):

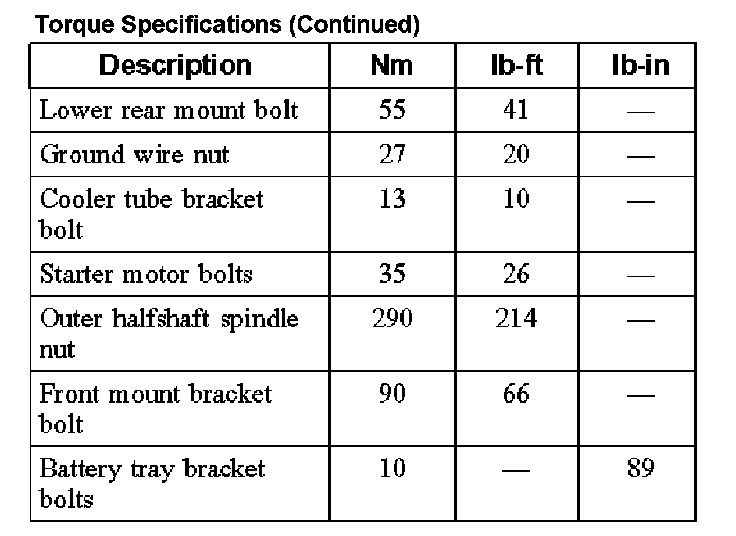

Torque Specifications (Part 3):
Torque Specifications (Part 4):

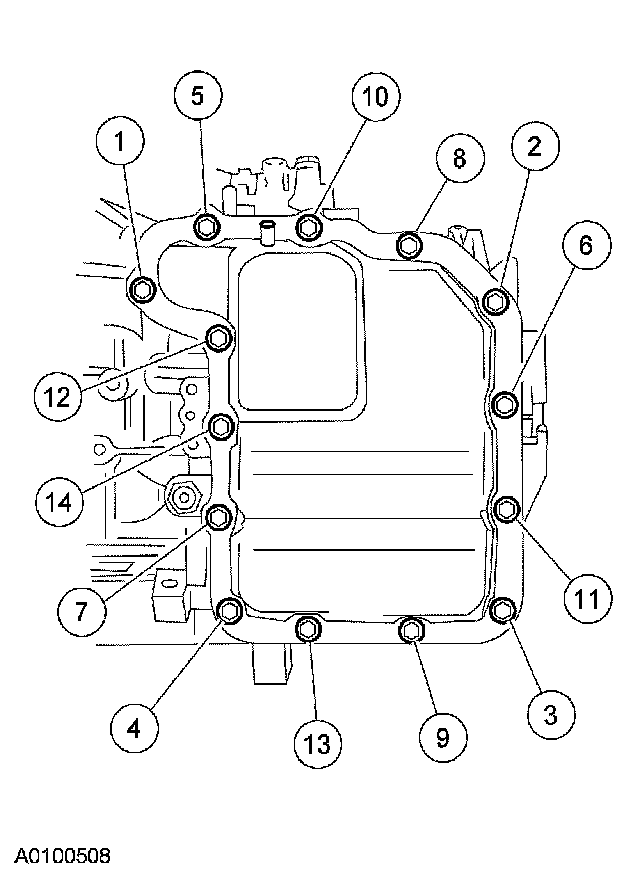

Transmission Pan Torque and Sequence
NOTE: Tighten the bolts and studs in the indicated sequence.
NOTE: The cooler bypass valve studs are in locations 3 and 11.
Install the main control cover.
Tighten to 13 Nm (10 ft. lbs.).
