2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests QE: Electronic Throttle Control (ETC) System
PINPOINT TEST QE: ELECTRONIC THROTTLE CONTROL (ETC) SYSTEM
This pinpoint test is intended to diagnose the informational powertrain control module (PCM) DTCs.
The informational DTCs are the result of limited operating strategy (LOS) or failure mode effects management (FMEM) operating strategy that maintains limited vehicle function in the event of a PCM harness or component concern.
Circuit DTCs can be accompanied by the informational DTCs and should be diagnosed first. Informational DTCs without circuit DTCs may or may not indicate the actual concern and should be diagnosed as a symptom.
Reference:

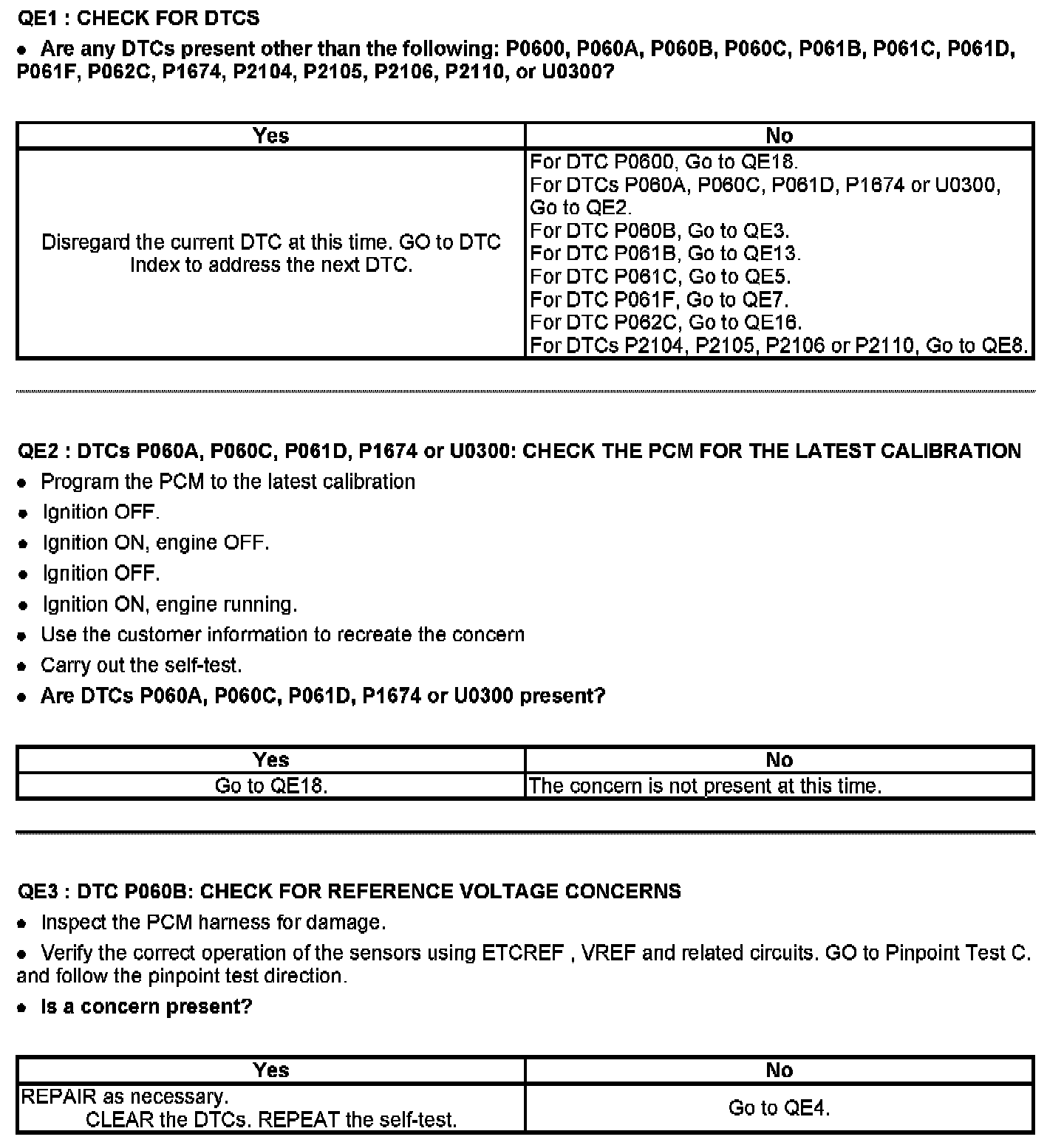

QE1 - QE3:

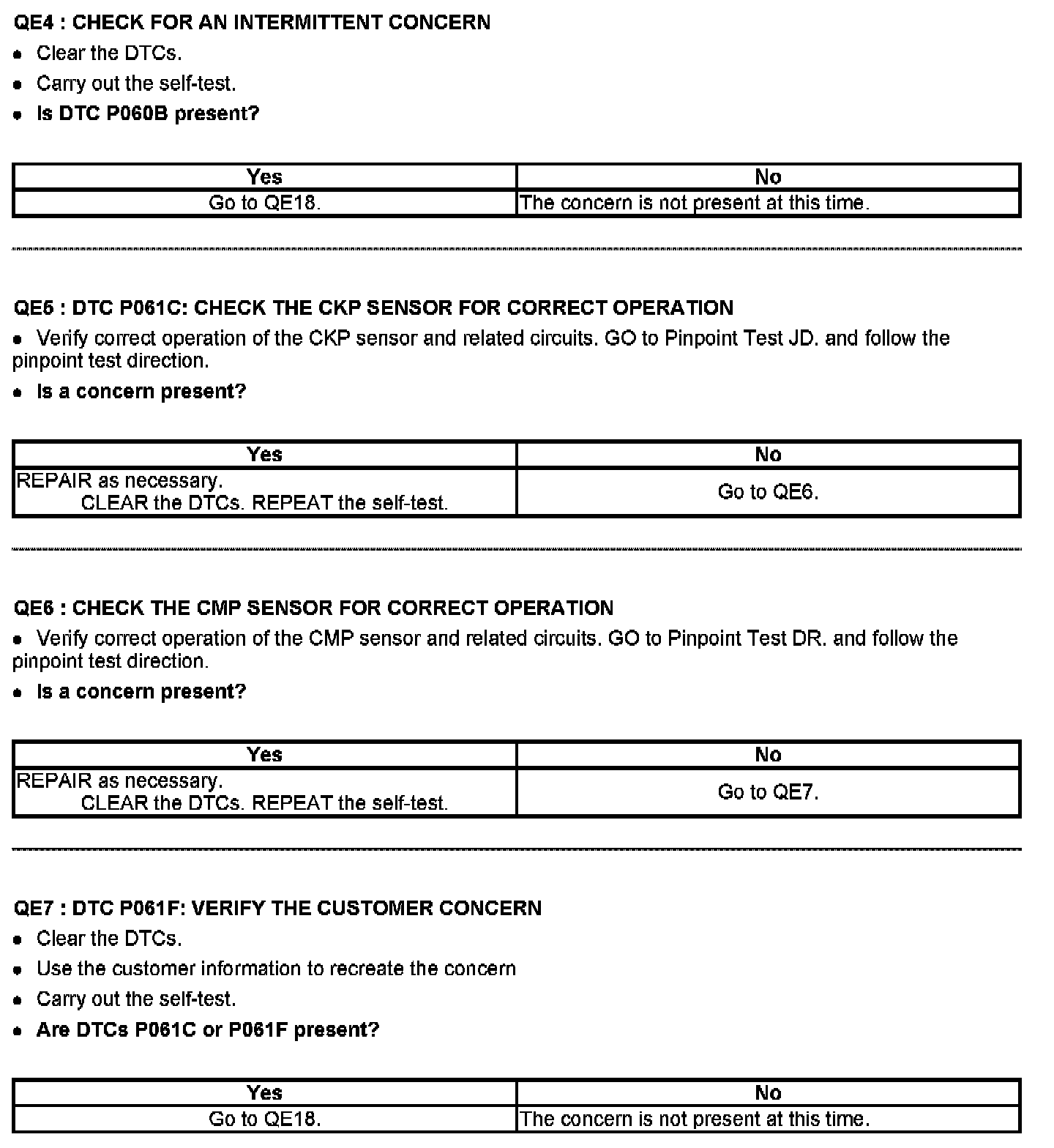

QE4 - QE7:

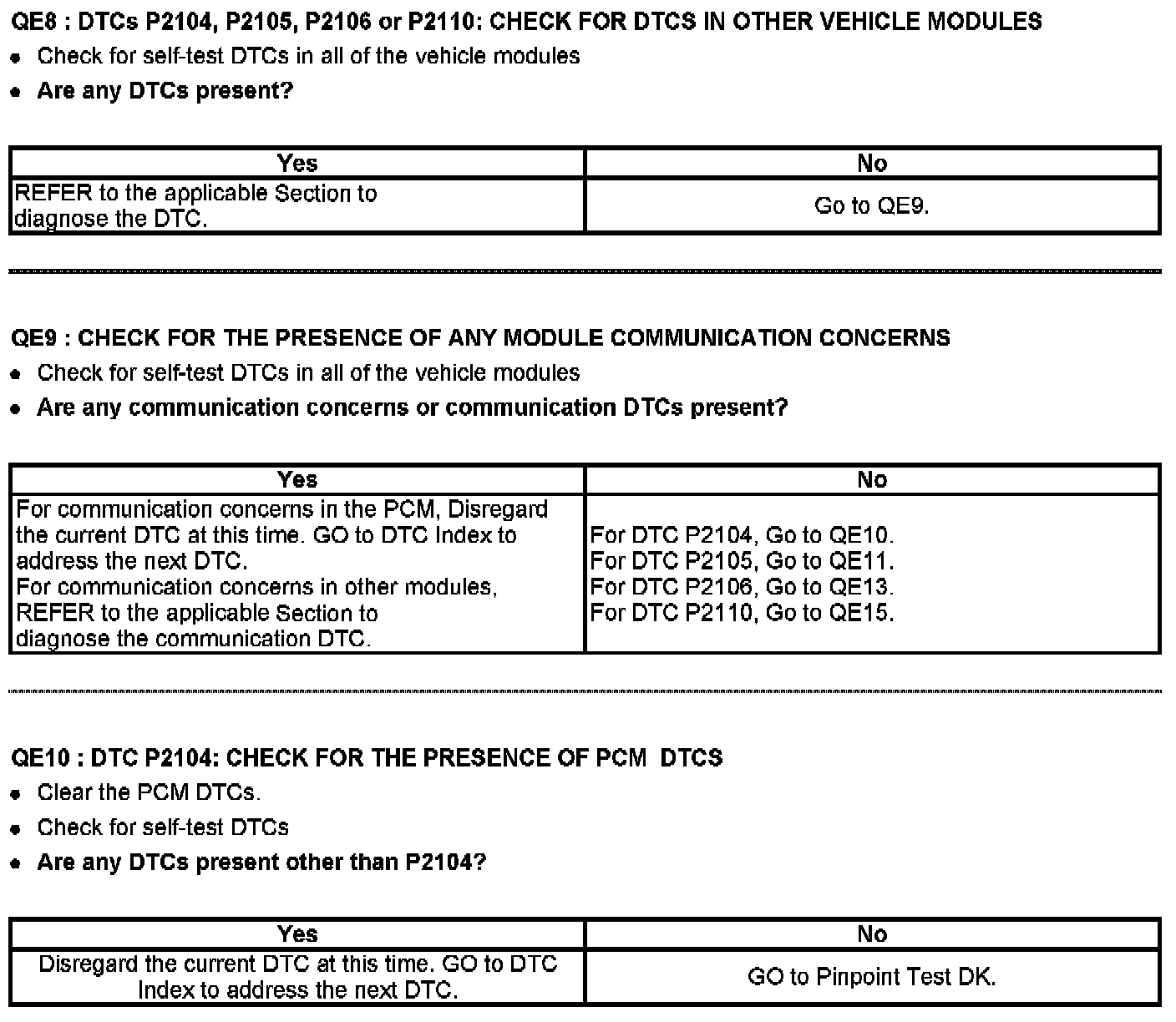

QE8 - QE10:

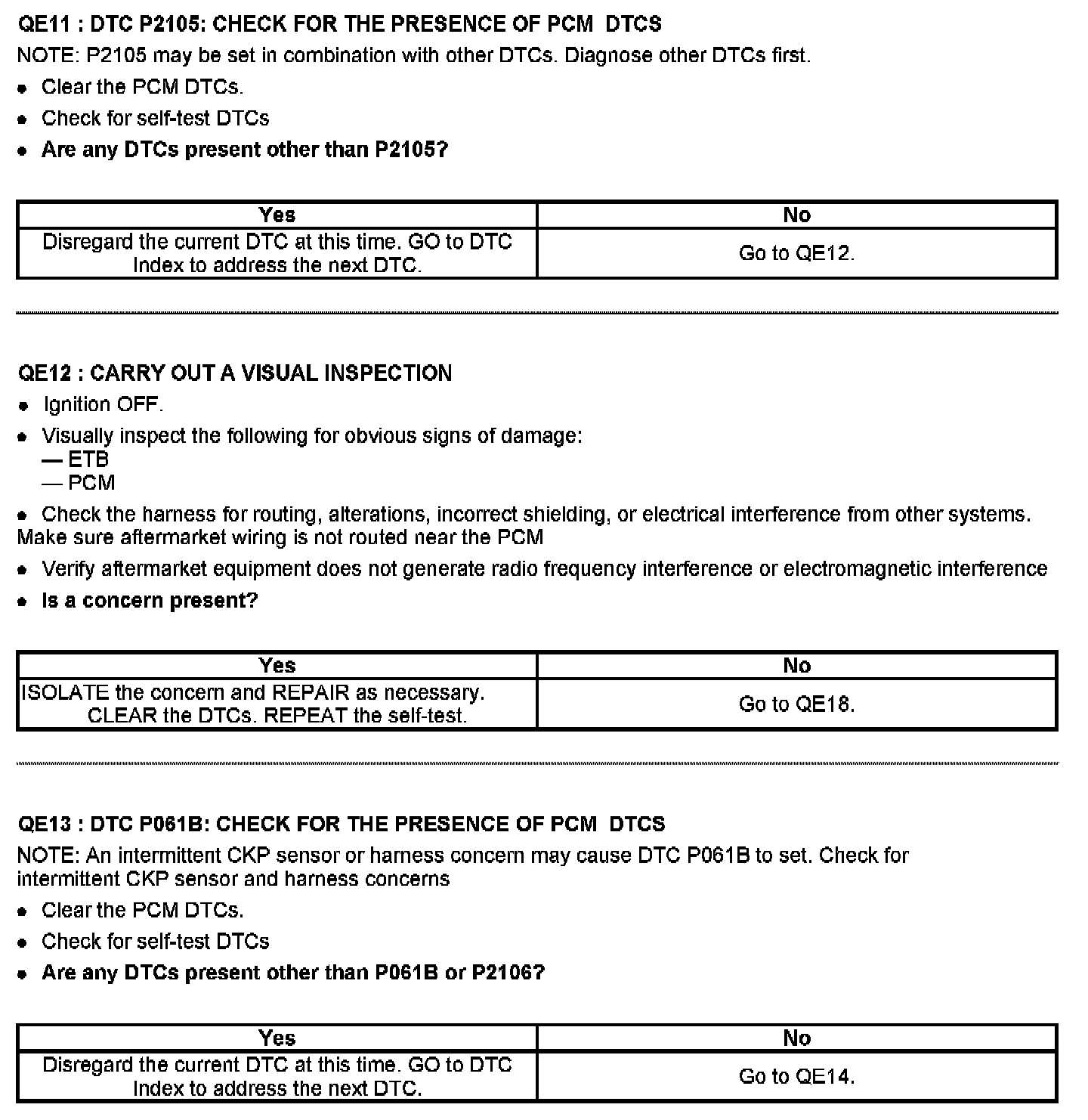

QE11 - QE13:

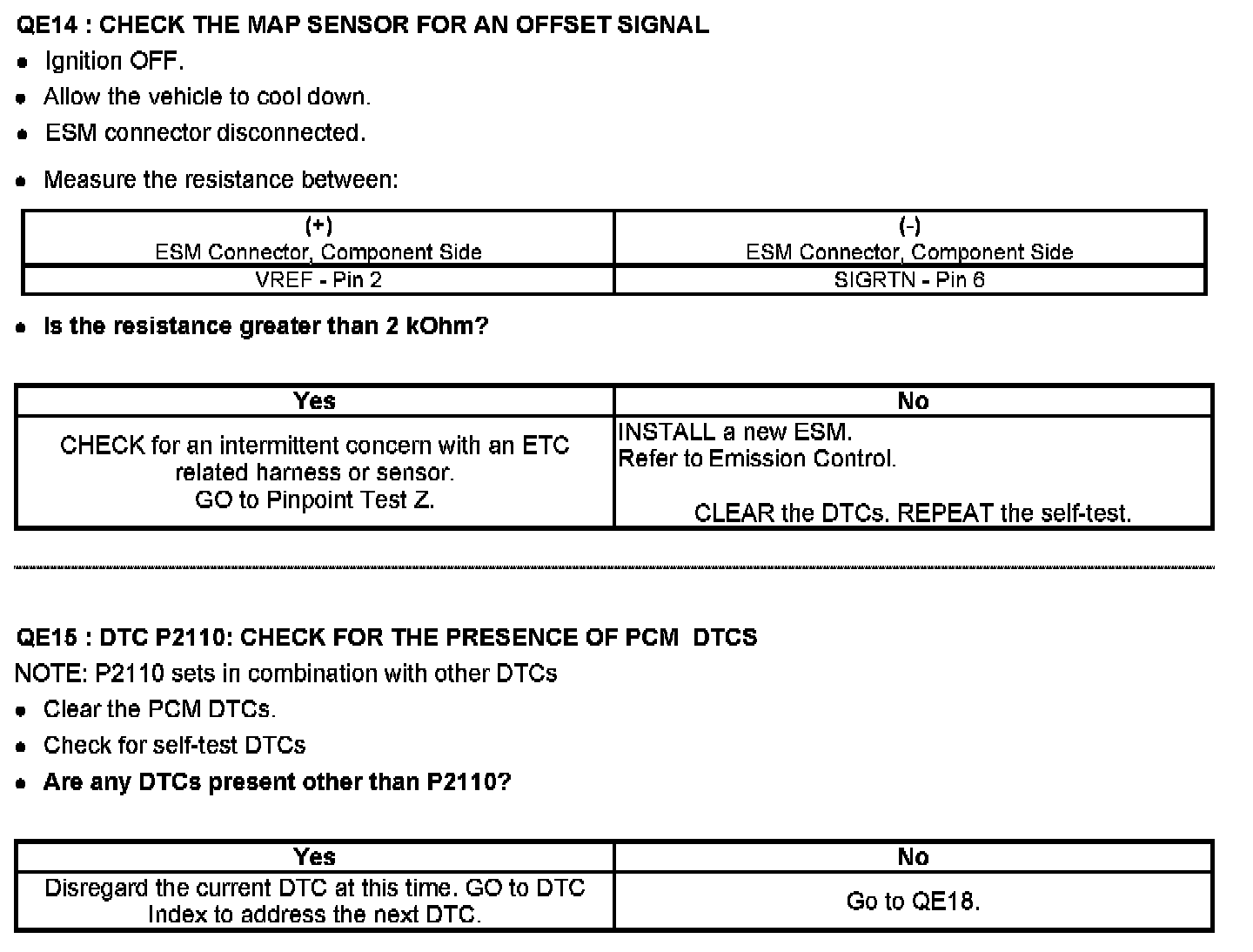

QE14 - QE15:

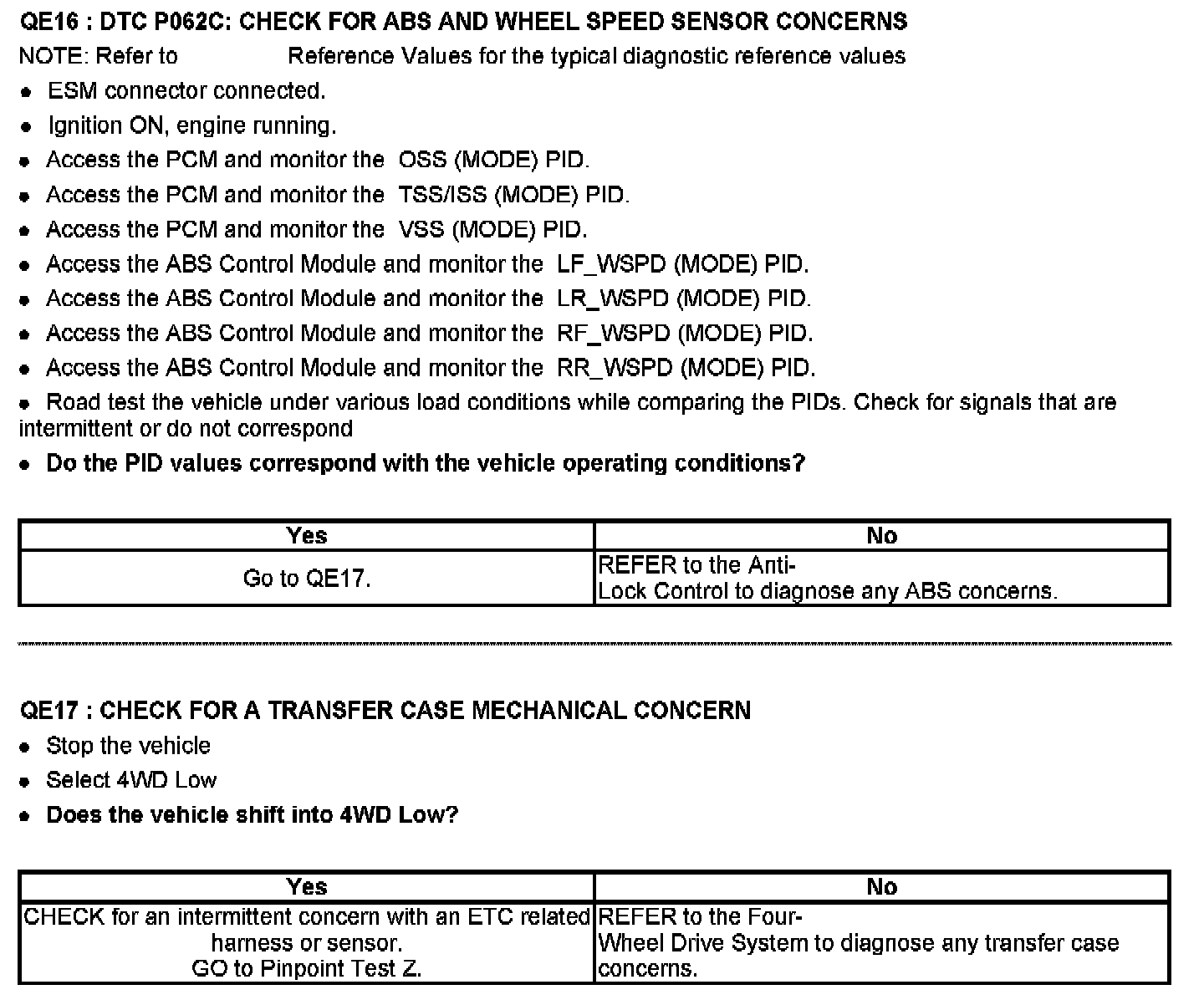

QE16 - QE17:
QE18:
