2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests KA: Fuel Pump (FP) Relay
PINPOINT TEST KA: FUEL PUMP (FP) RELAY
This pinpoint test is intended to diagnose the following:
^ fuel pump relay (9345)
^ inertia fuel shutoff (IFS) switch (9341)
^ harness circuits: B+ VPWR FP GND FPM and FP PWR
^ powertrain control module ( PCM) (12A650)
FP Relay Connector
Reference:
Reference:

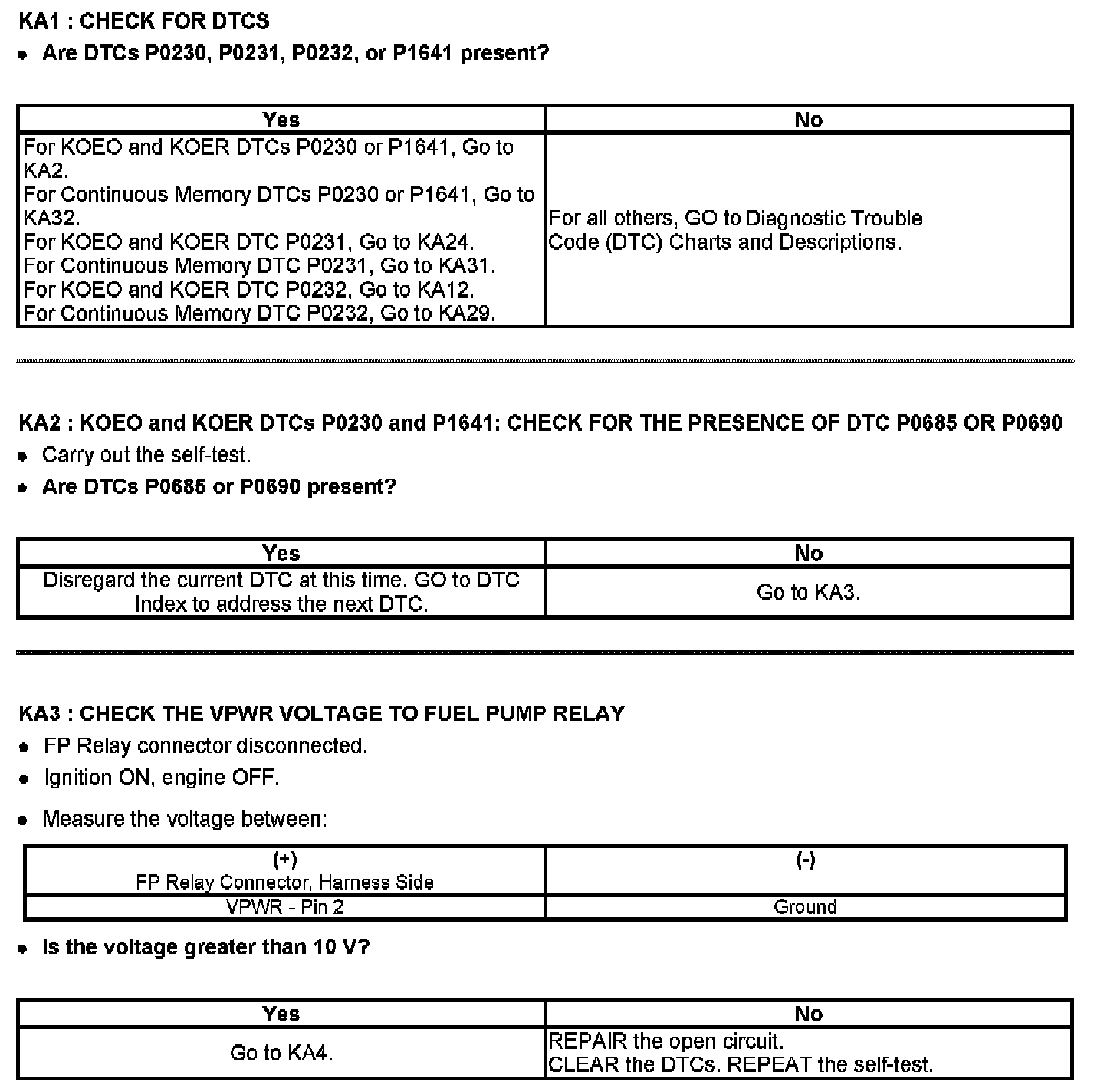

KA1 - KA3:
KA4 - KA6:
KA7 - KA9:
KA10 - KA13:
KA14 - KA16:

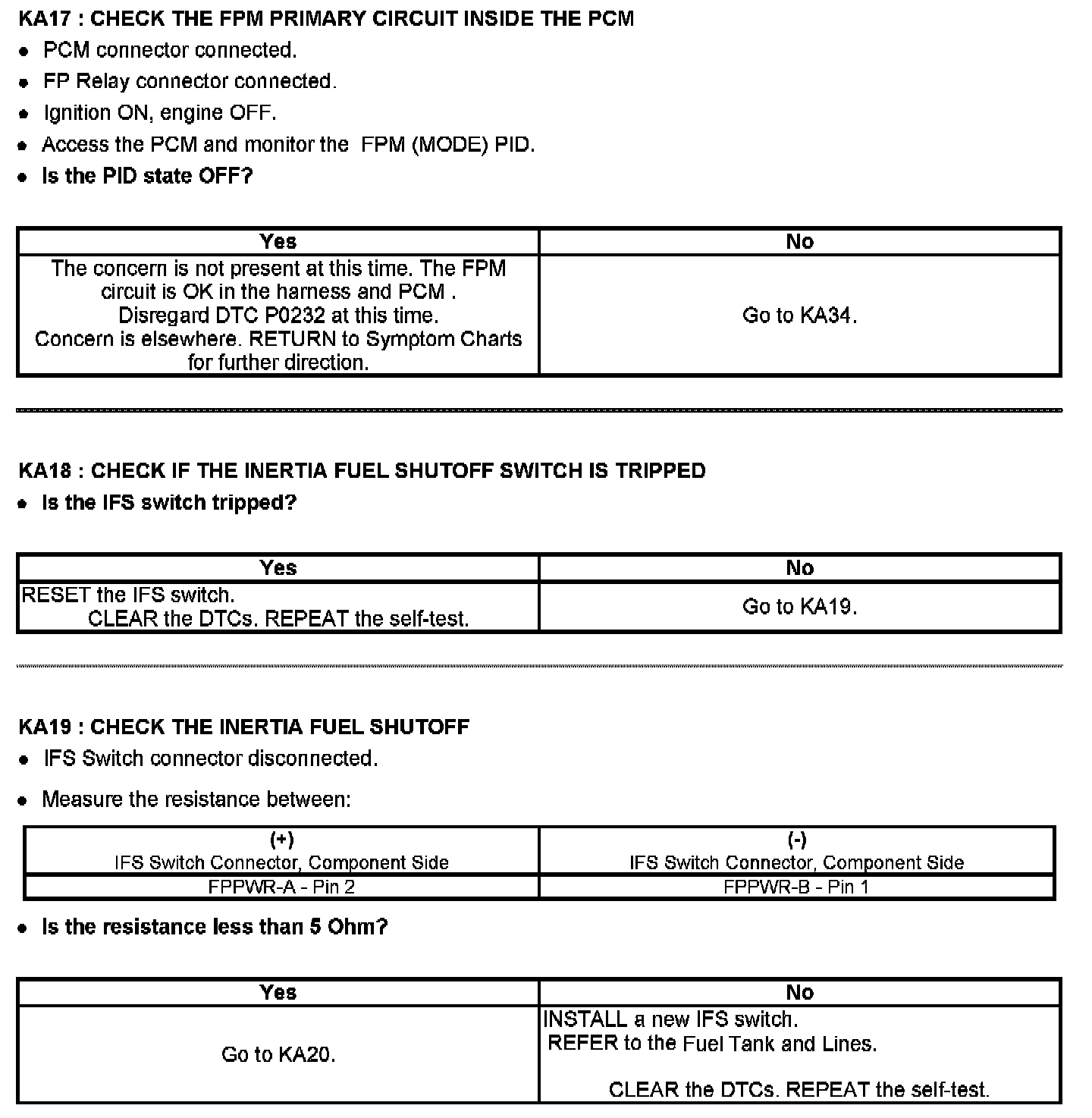

KA17 - KA19:
KA20 - KA21:

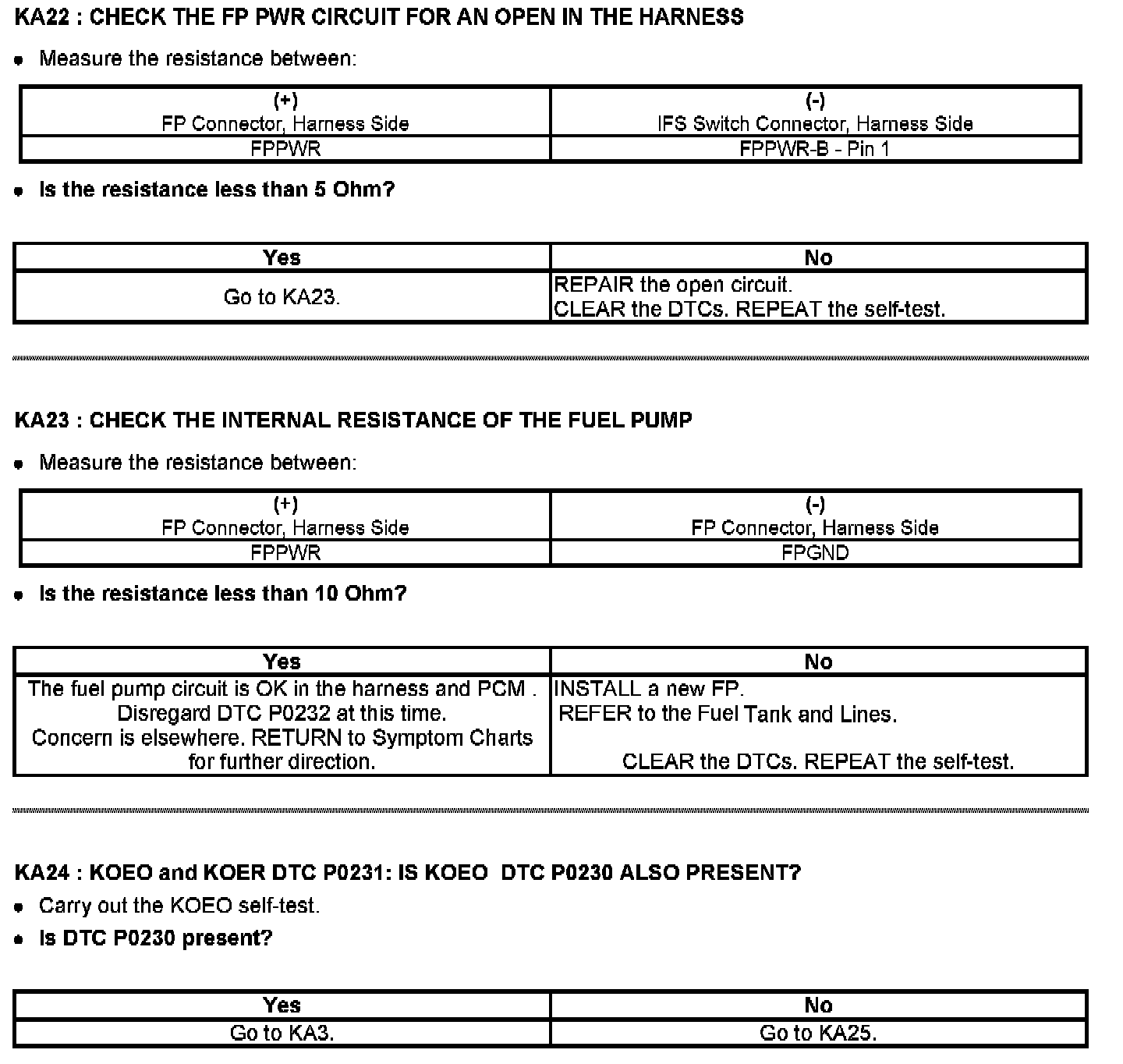

KA22 - KA24:
KA25 - KA27:
KA28 - KA29:

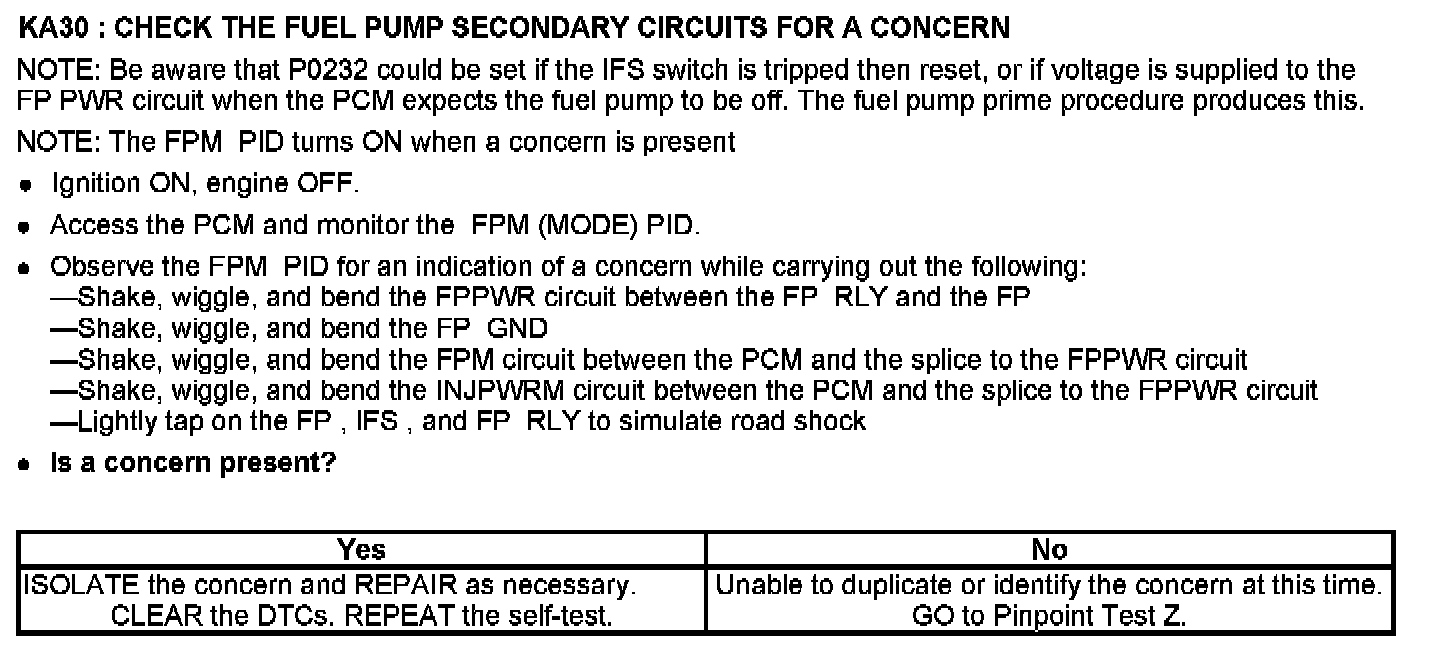

KA30:
KA31:
KA32 - KA33:
KA34:
