2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests HL: Dual-Injection Fuel Delivery System
PINPOINT TEST HL: DUAL-INJECTION FUEL DELIVERY SYSTEM
This pinpoint test is intended to diagnose the following:
^ fuel injector
^ harness circuits: INJ1 - INJ8, INJ1F - INJ8F, INJ1R - INJ8R and FSSW
^ fuel injector interface module (9F954)
^ powertrain control module (PCM) (12A650)
Reference:

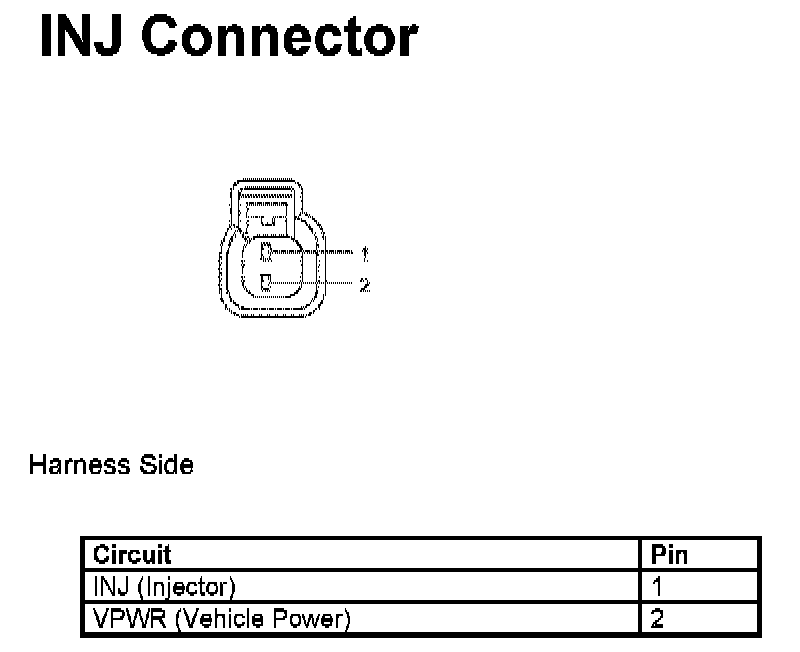

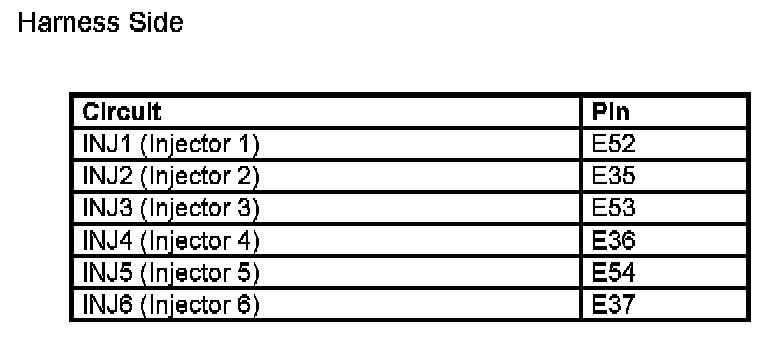

PCM Connector
Reference:

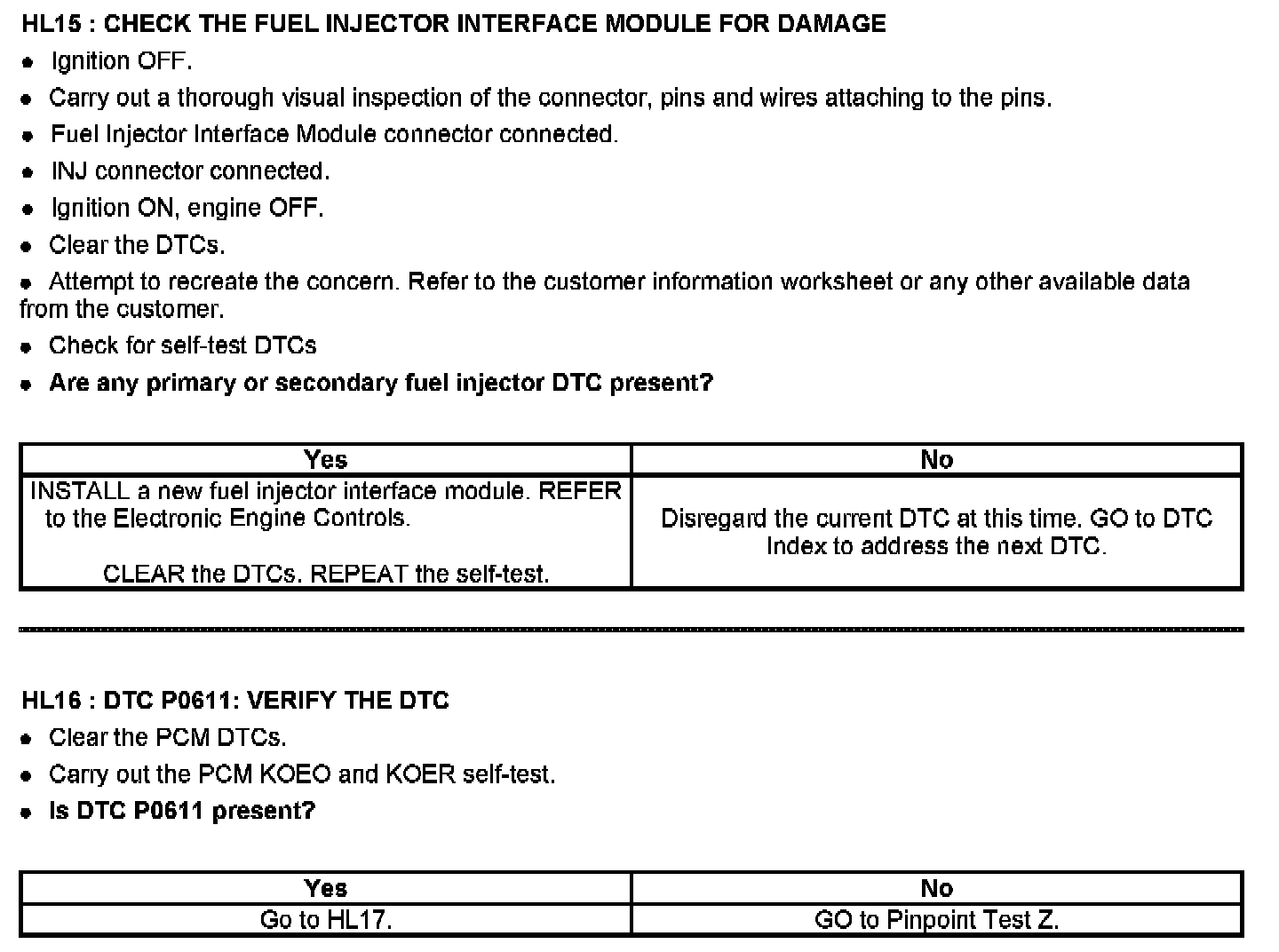

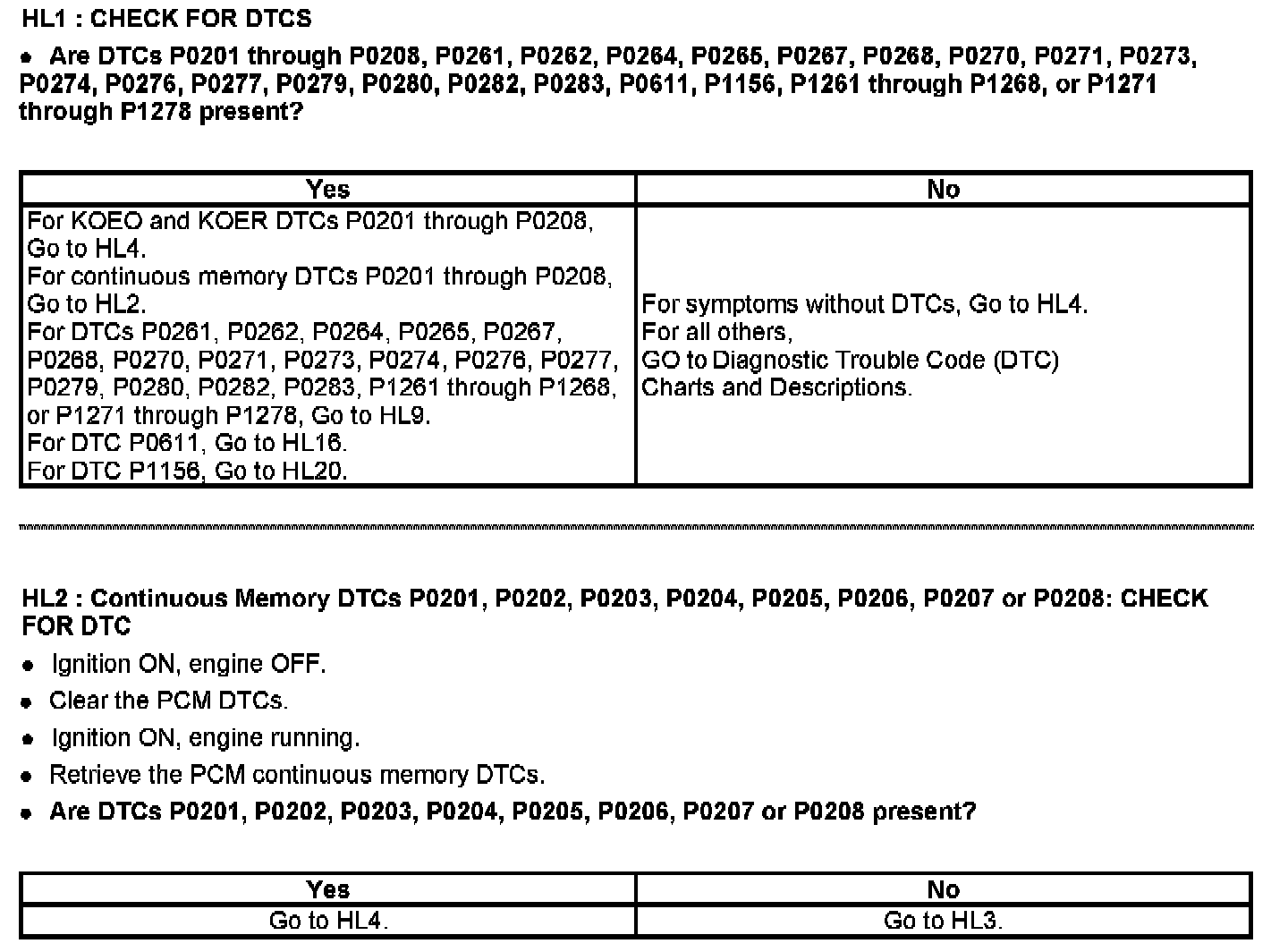

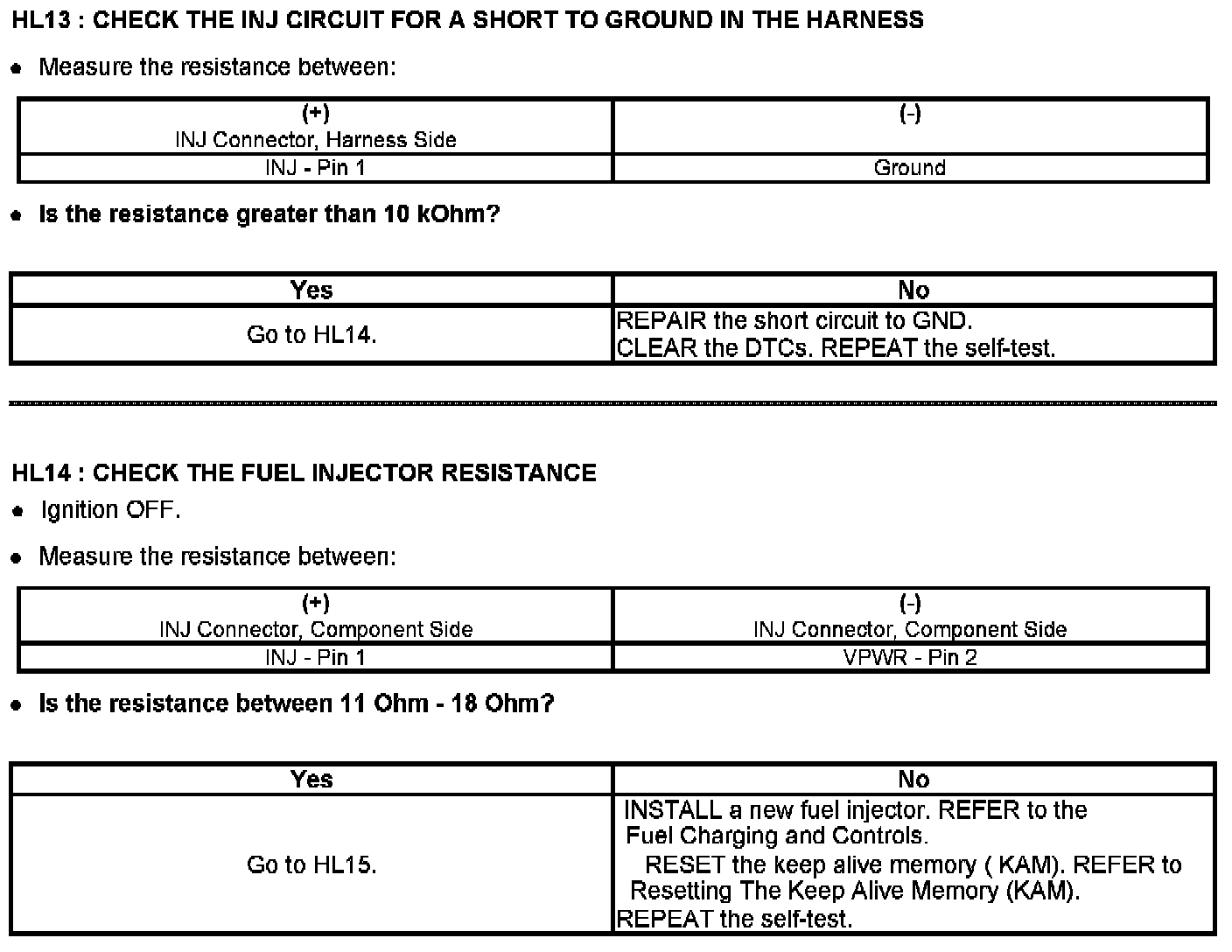

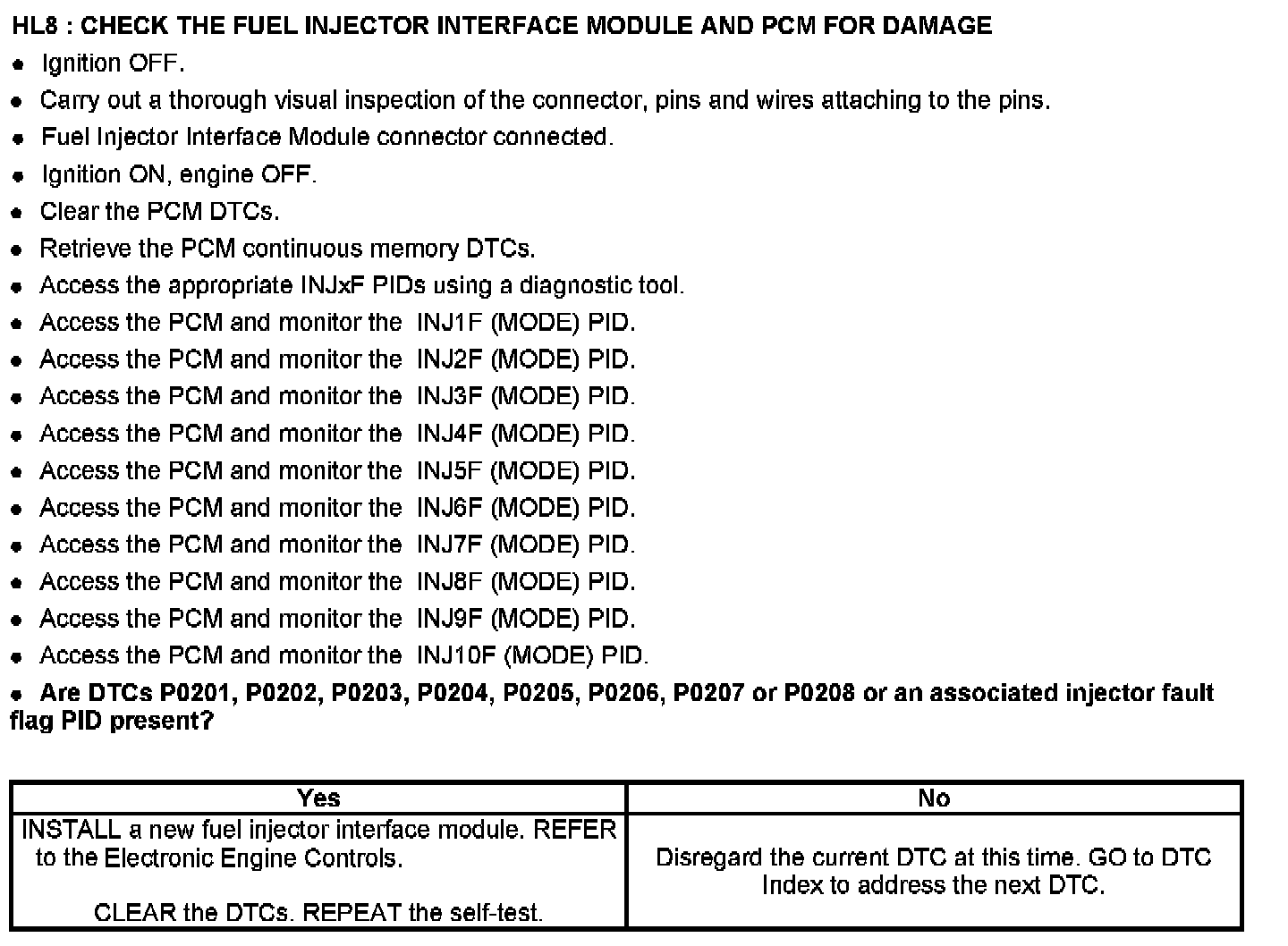

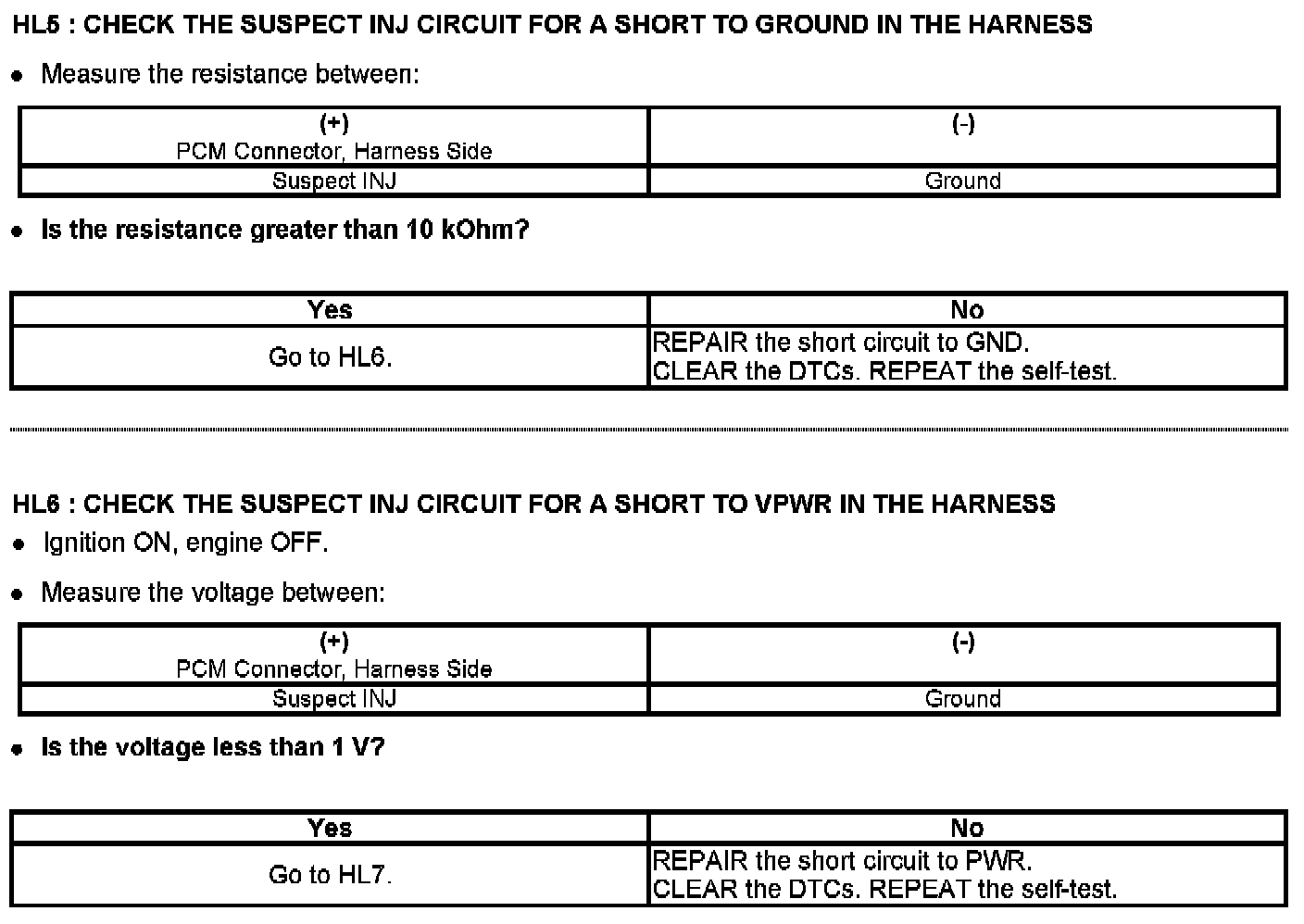

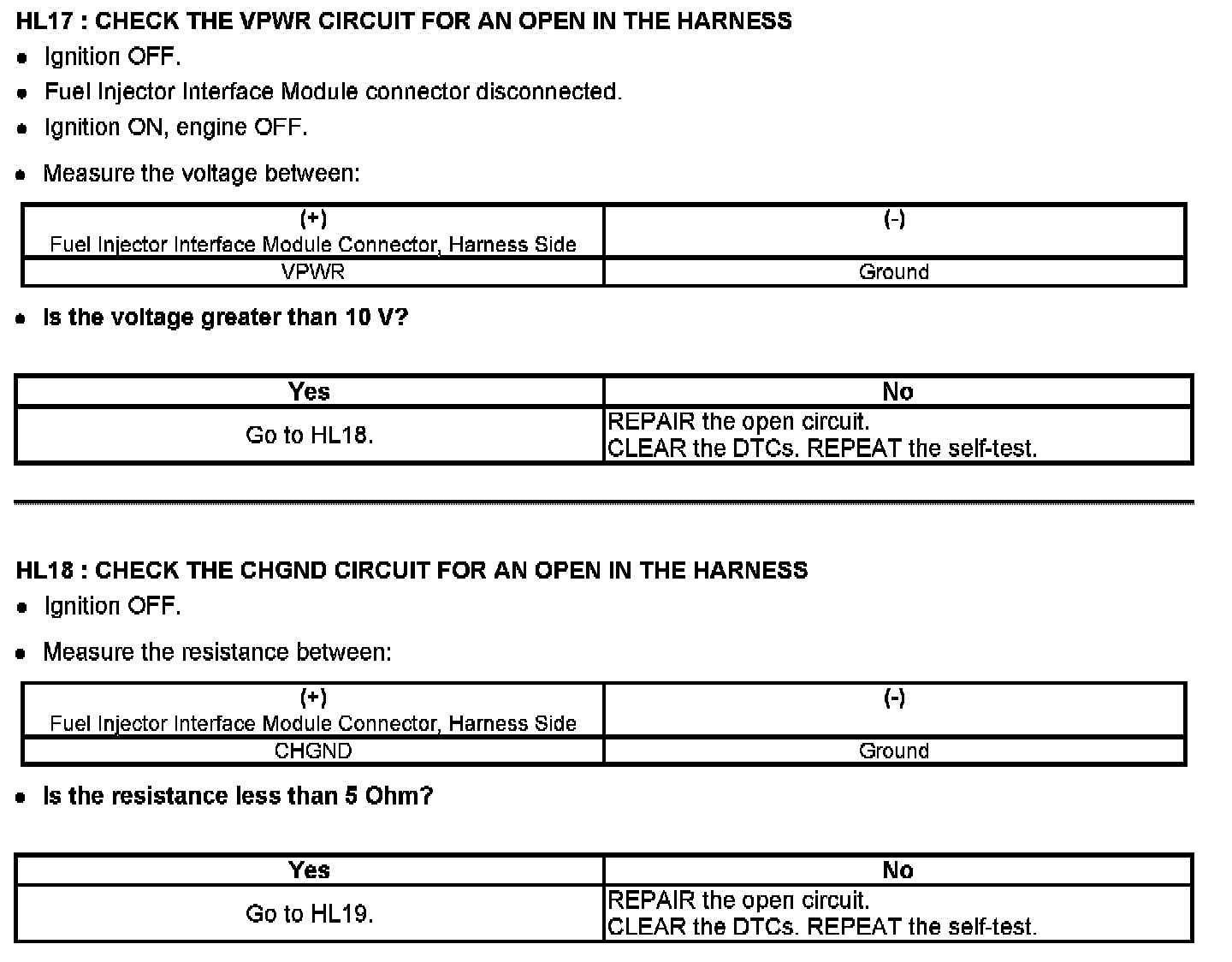

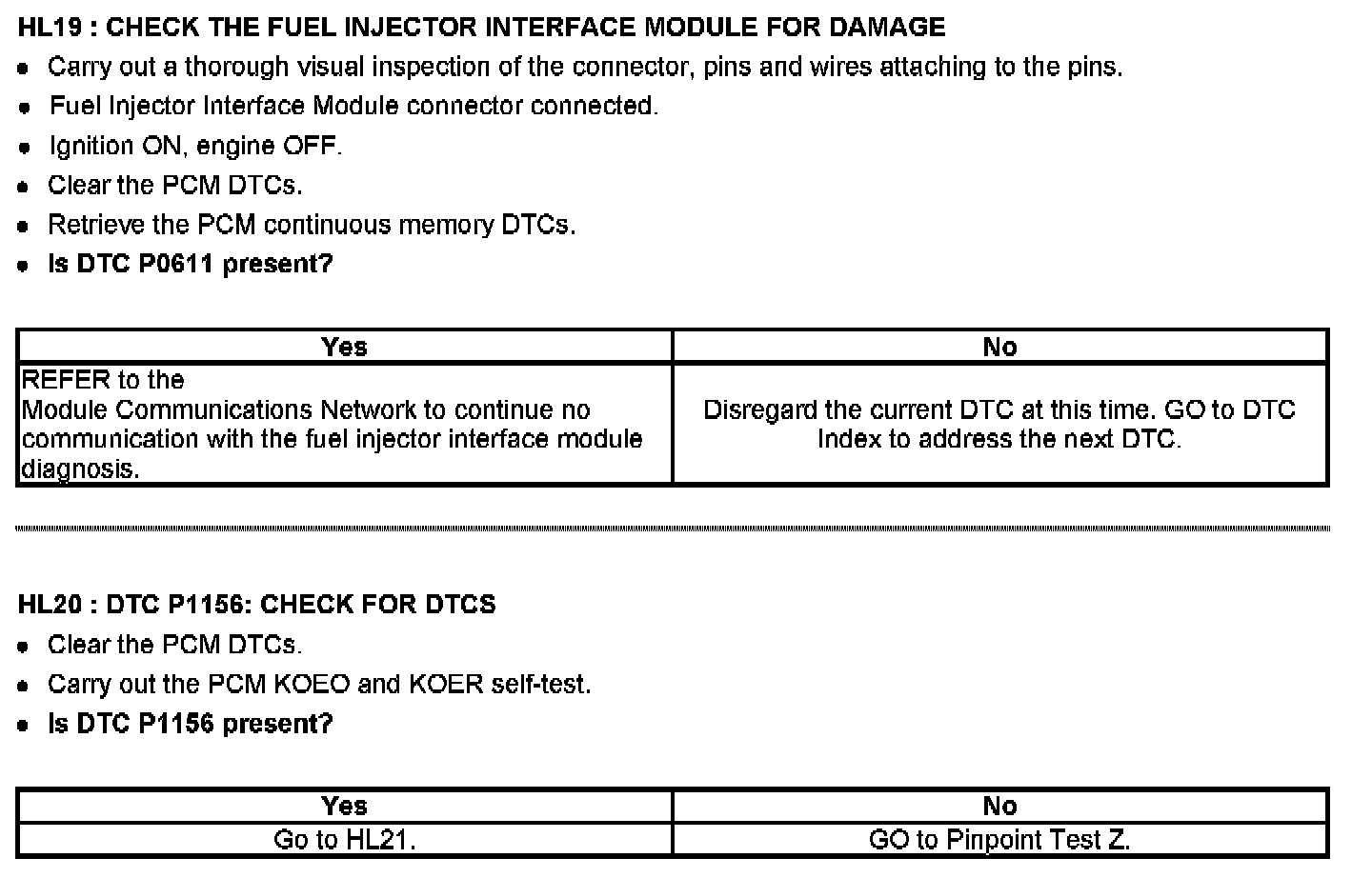

HL1 - HL2:
HL3 - HL4:
HL5 - HL6:
HL7:
HL8:
HL9 - HL10:
HL11 - HL12:
HL13 - HL14:
HL15 - HL16:
HL17 - HL18:
HL19 - HL20:
HL21:
HL22 - HL23:
HL24 - HL25:
