2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests HH: Exhaust Gas Recirculation System Module (ESM)
PINPOINT TEST HH: EXHAUST GAS RECIRCULATION SYSTEM MODULE (ESM)
This pinpoint test is intended to diagnose the following:
^ exhaust gas recirculation system module (ESM) (9Y456)
^ orifice tube assembly (9D477)
^ differential pressure feedback EGR (DPFE) sensor pressure hoses
^ vacuum lines
^ harness circuits: VREF DPFE SIGRTN EVR VPWR
^ powertrain control module (PCM) (12A650)
Reference:
Reference:
PCM Connector
Reference:

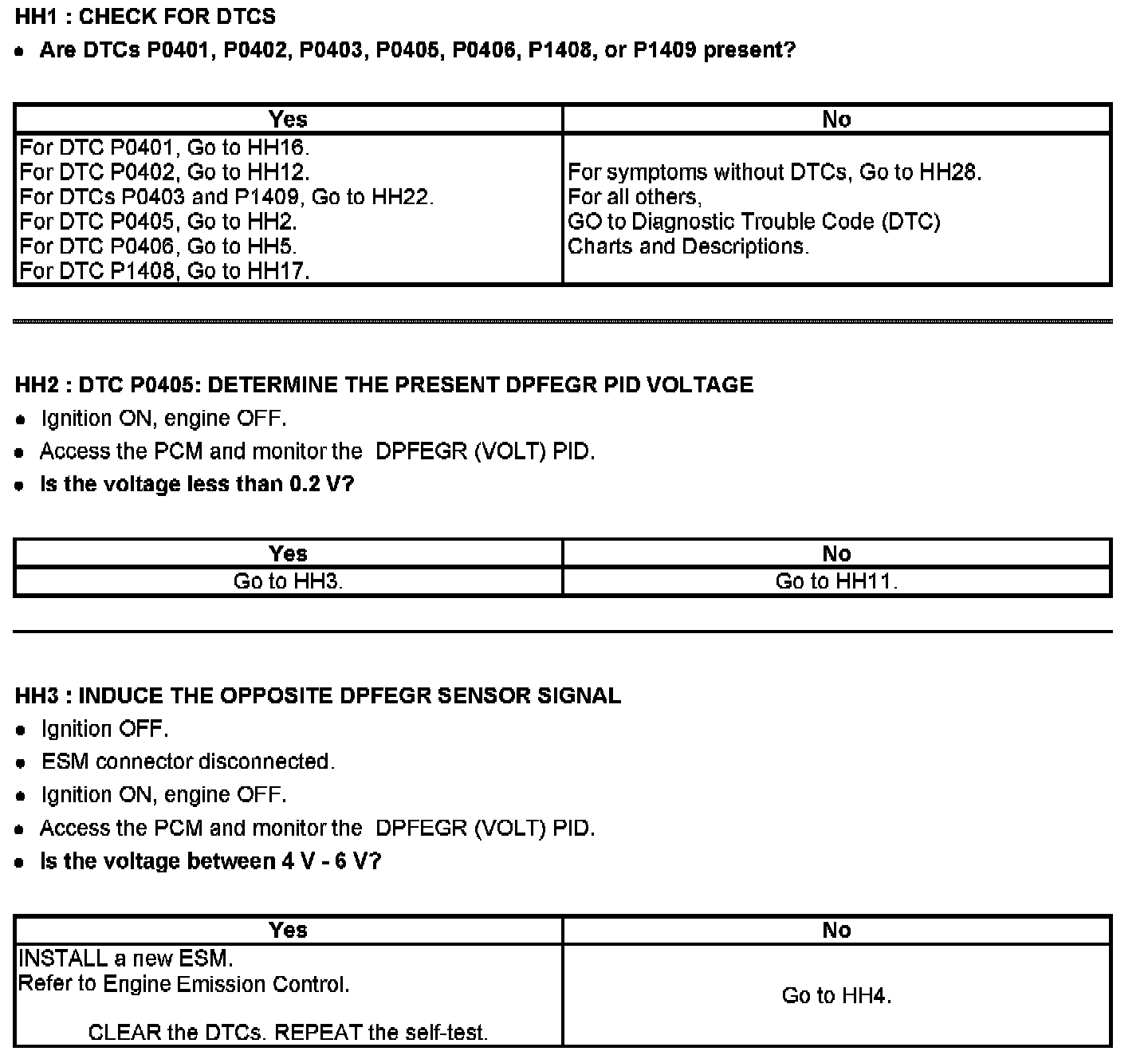

HH1 - HH3:

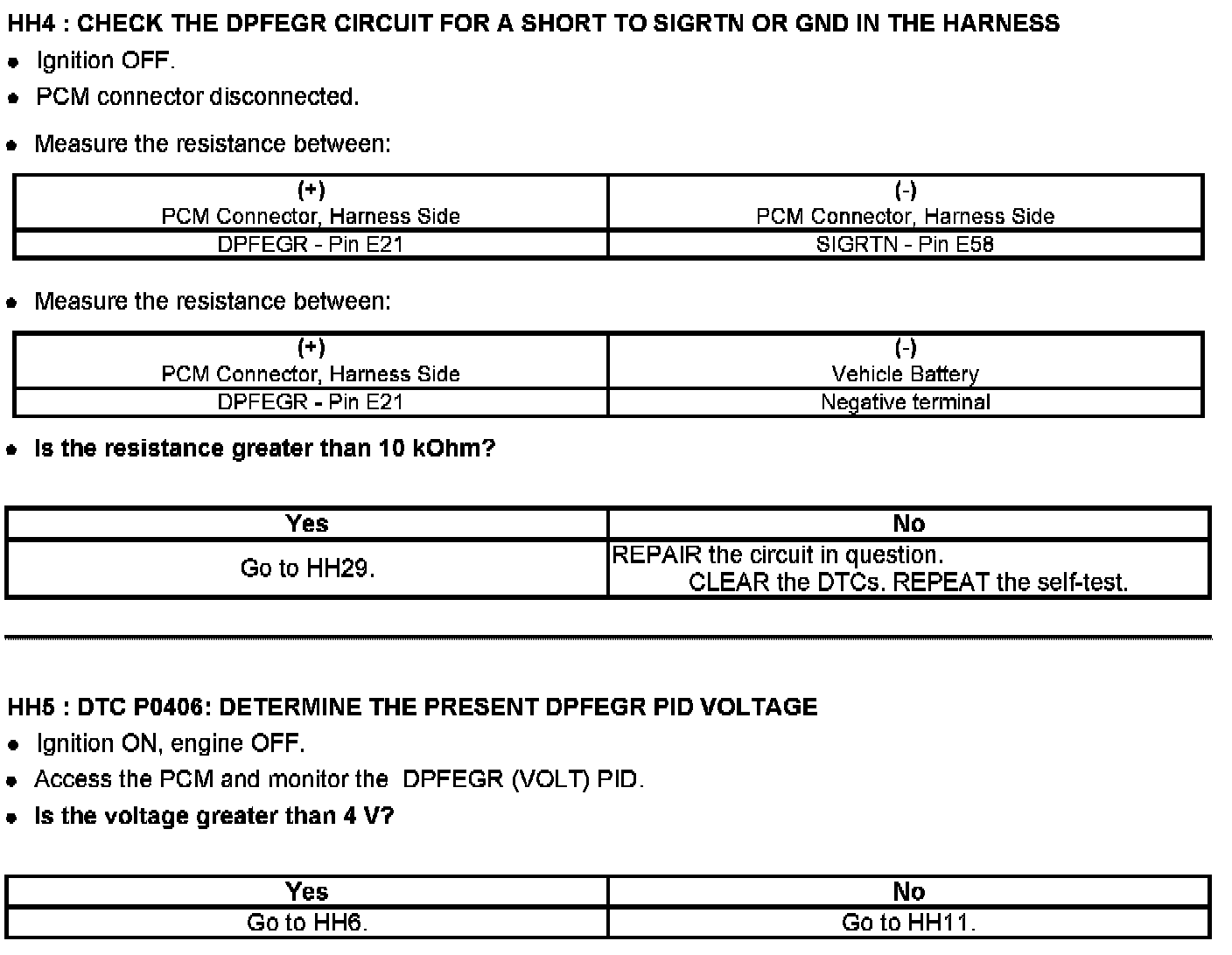

HH4 - HH5:
HH6 - HH7:
HH8 - HH9:

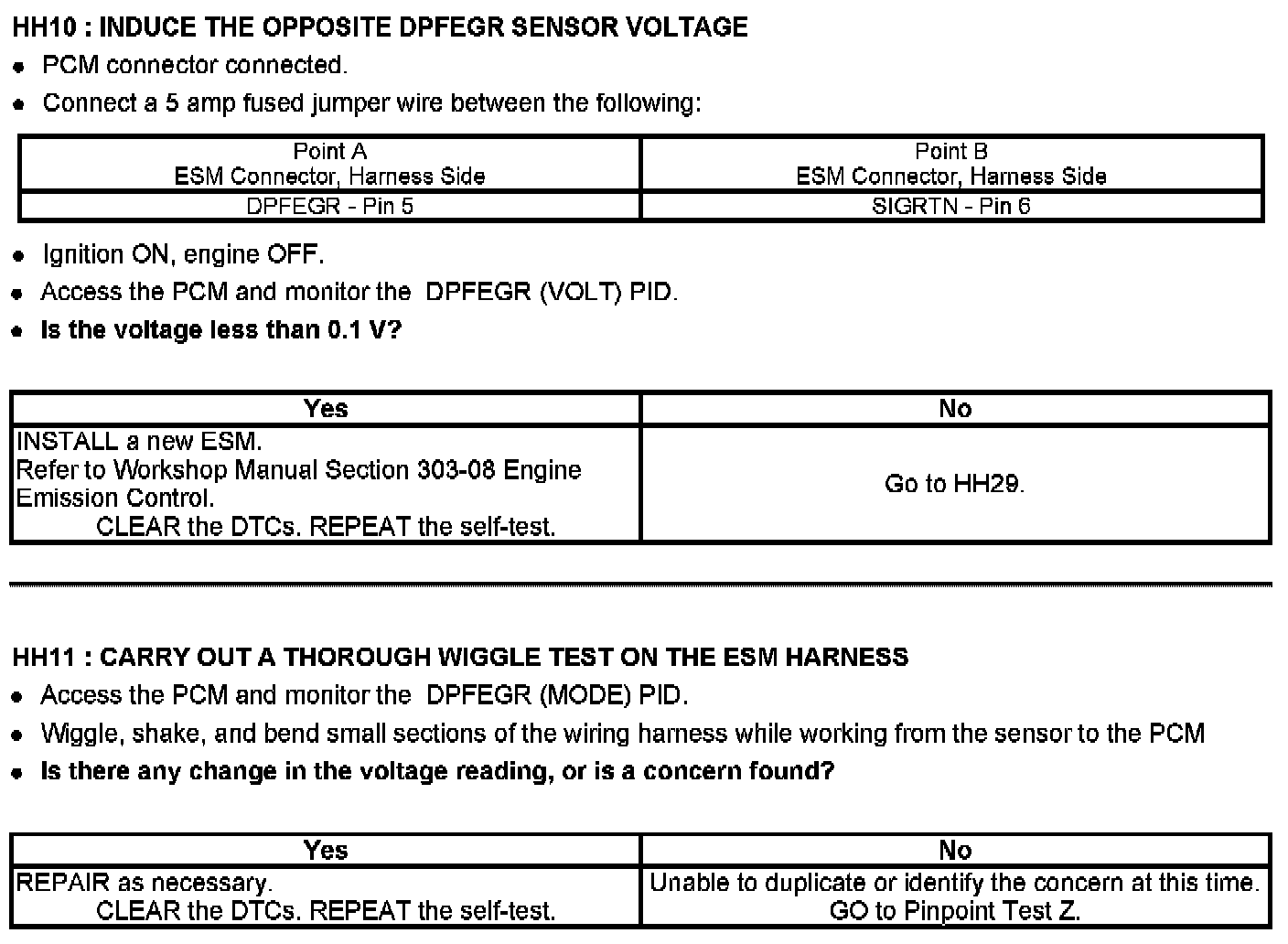

HH10 - HH11:

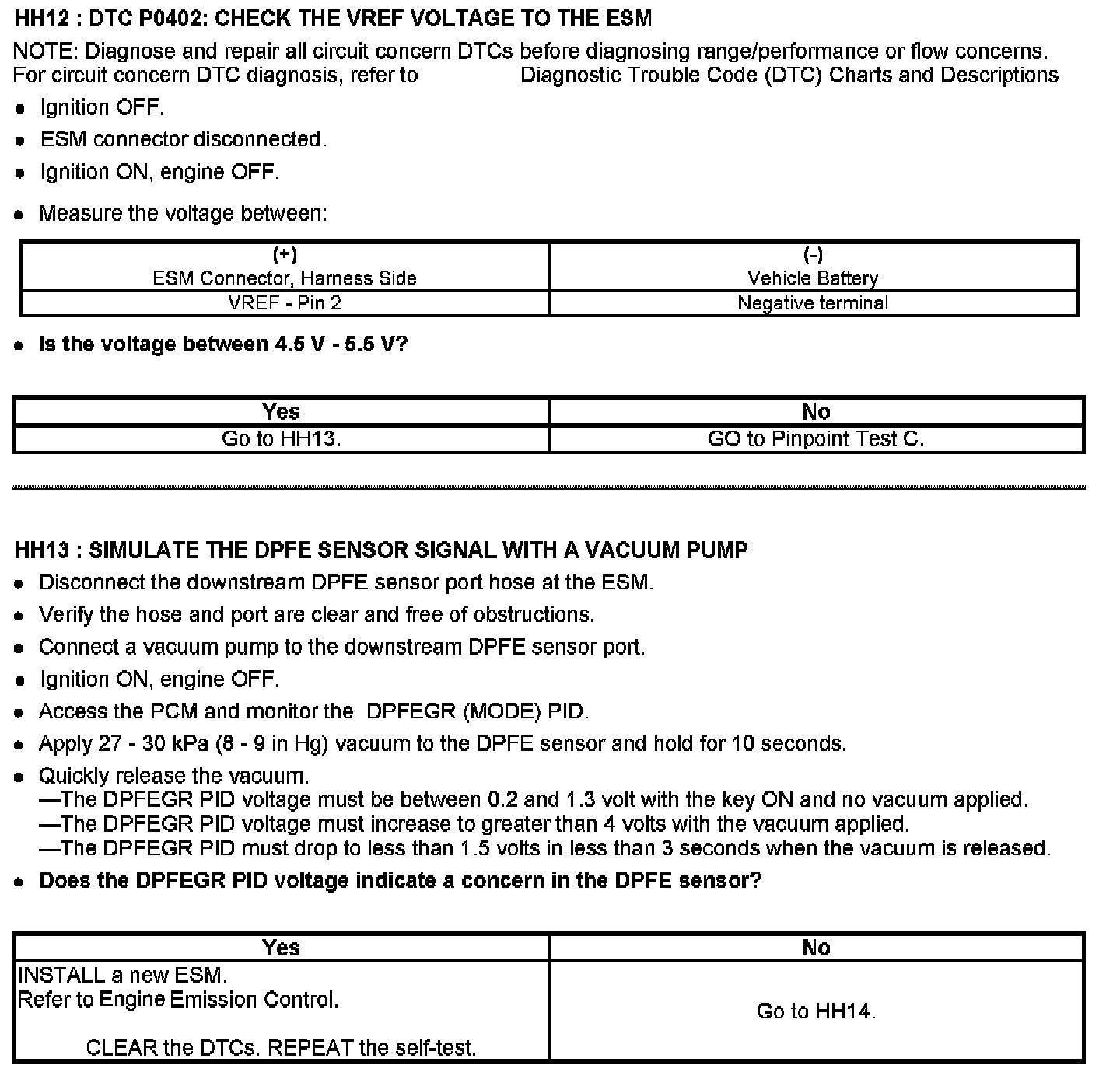

HH12 - HH13:

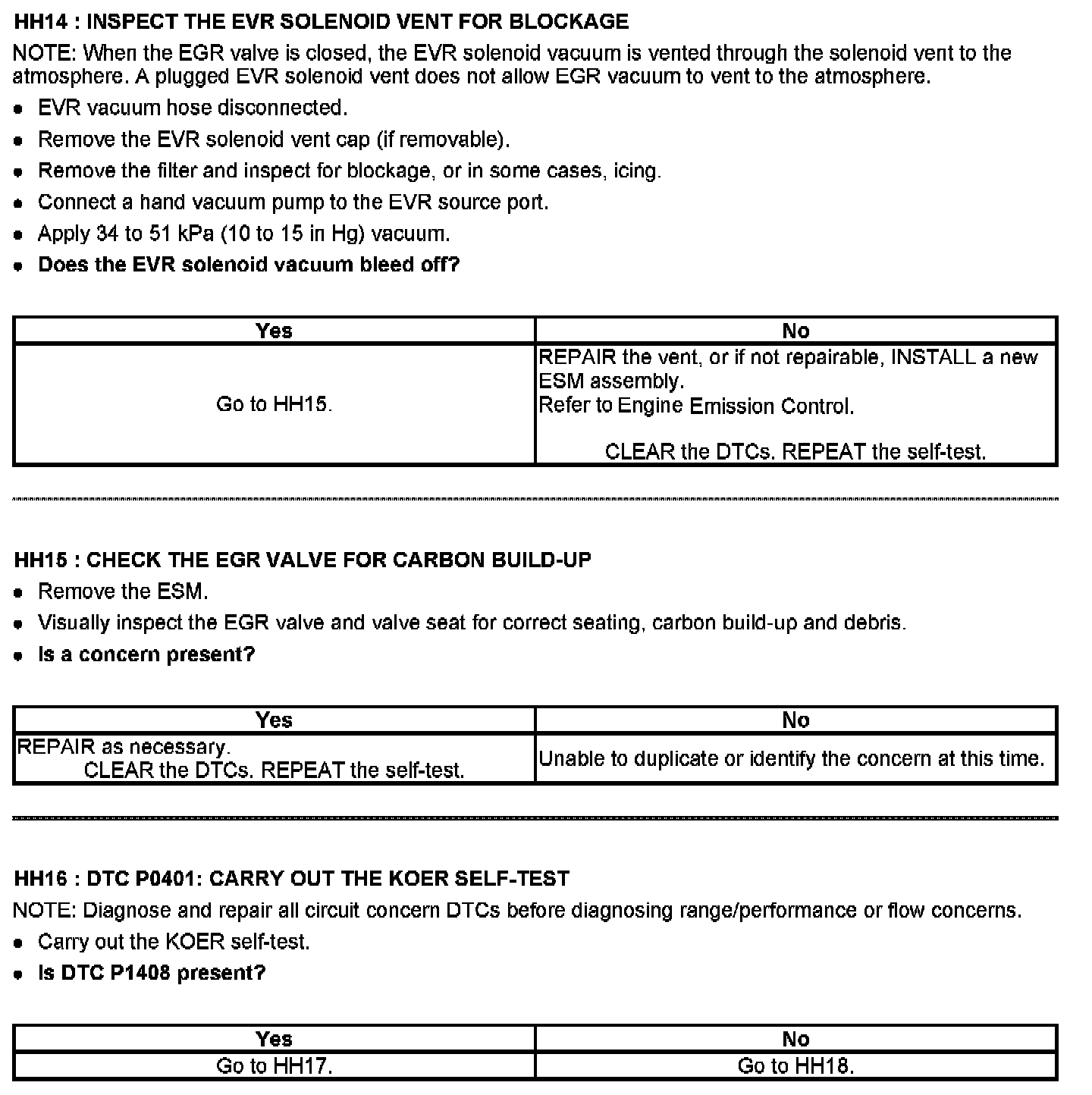

HH14 - HH16:
HH17 - HH18:

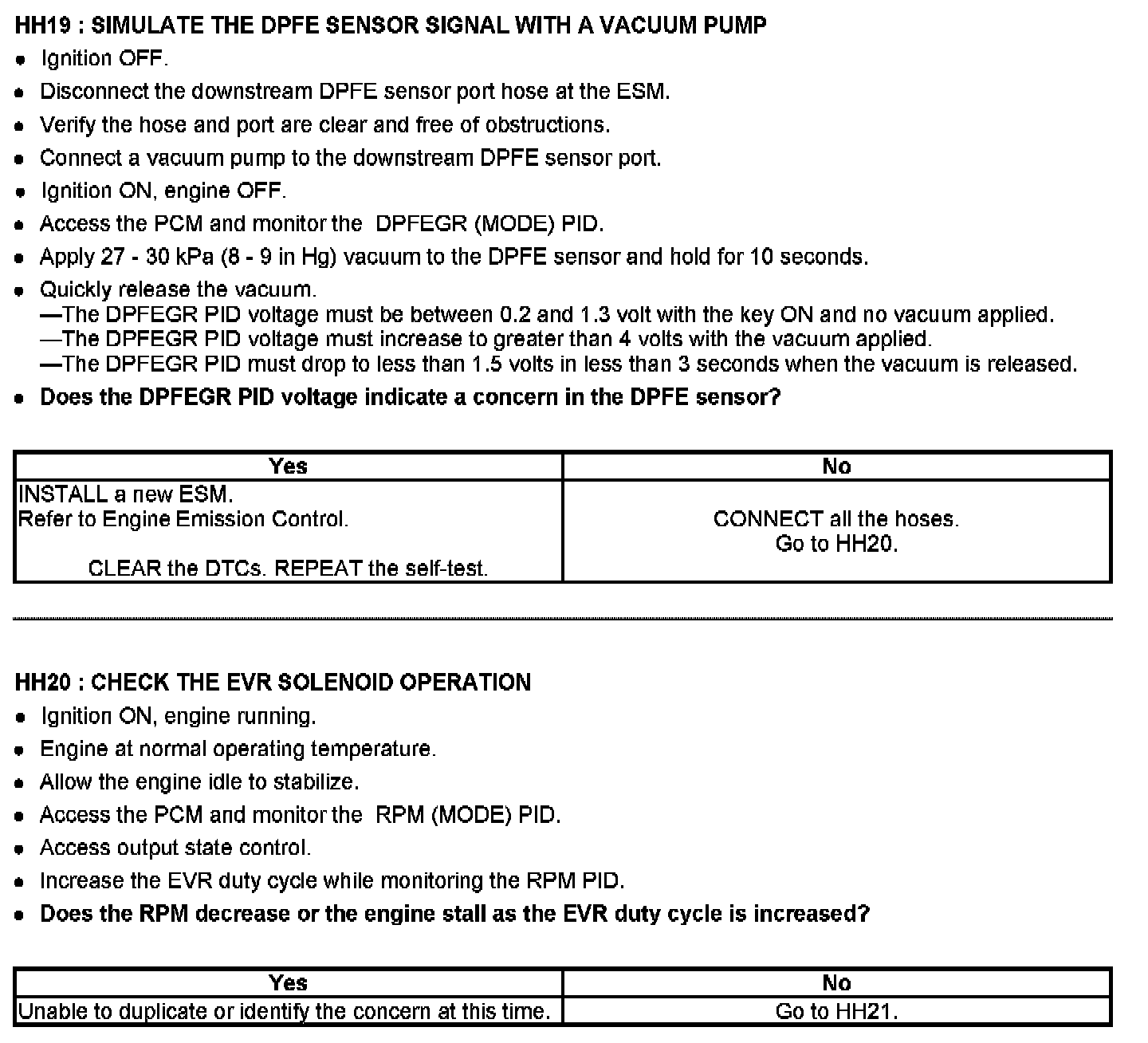

HH19 - HH20:

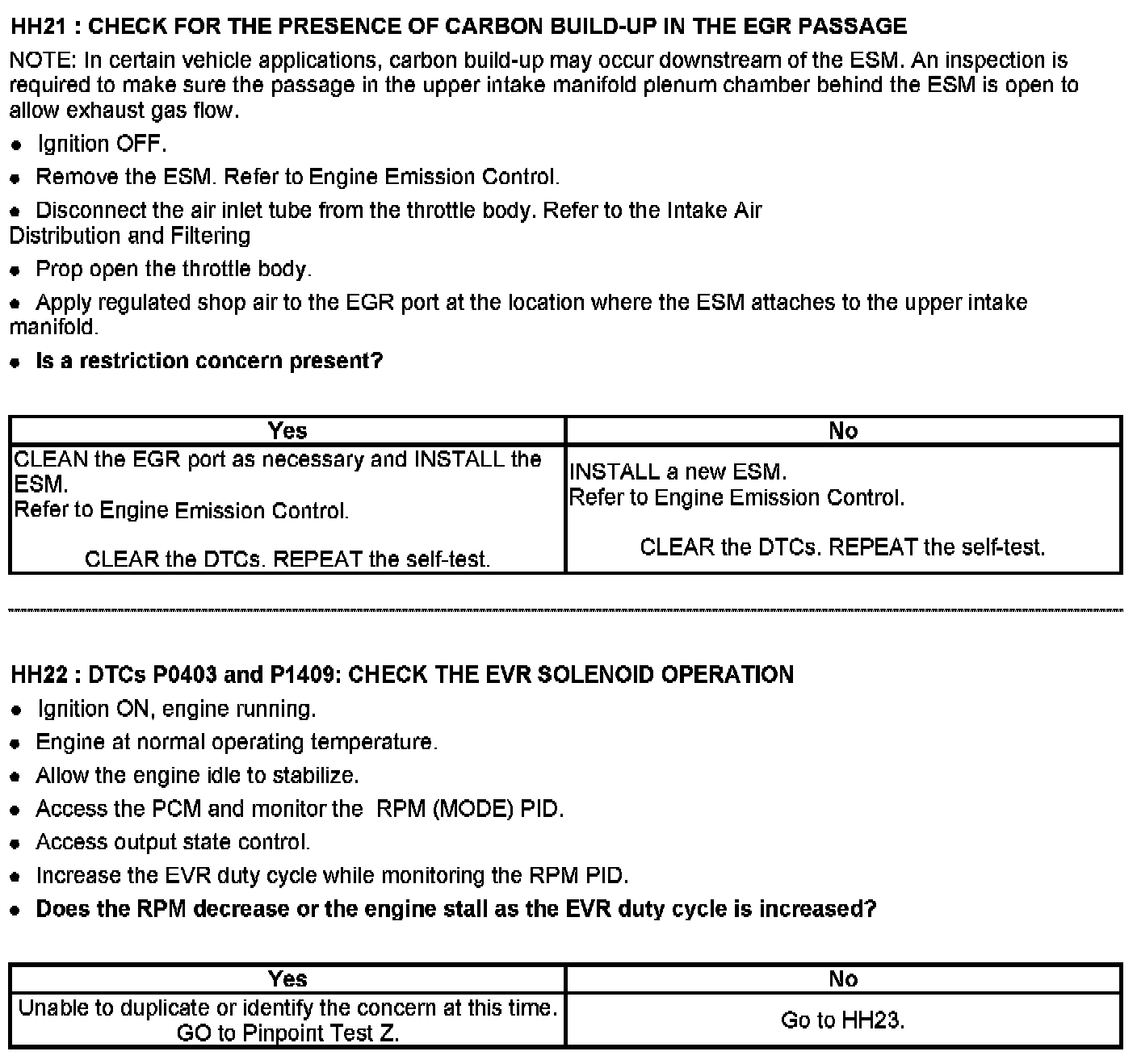

HH21 - HH22:

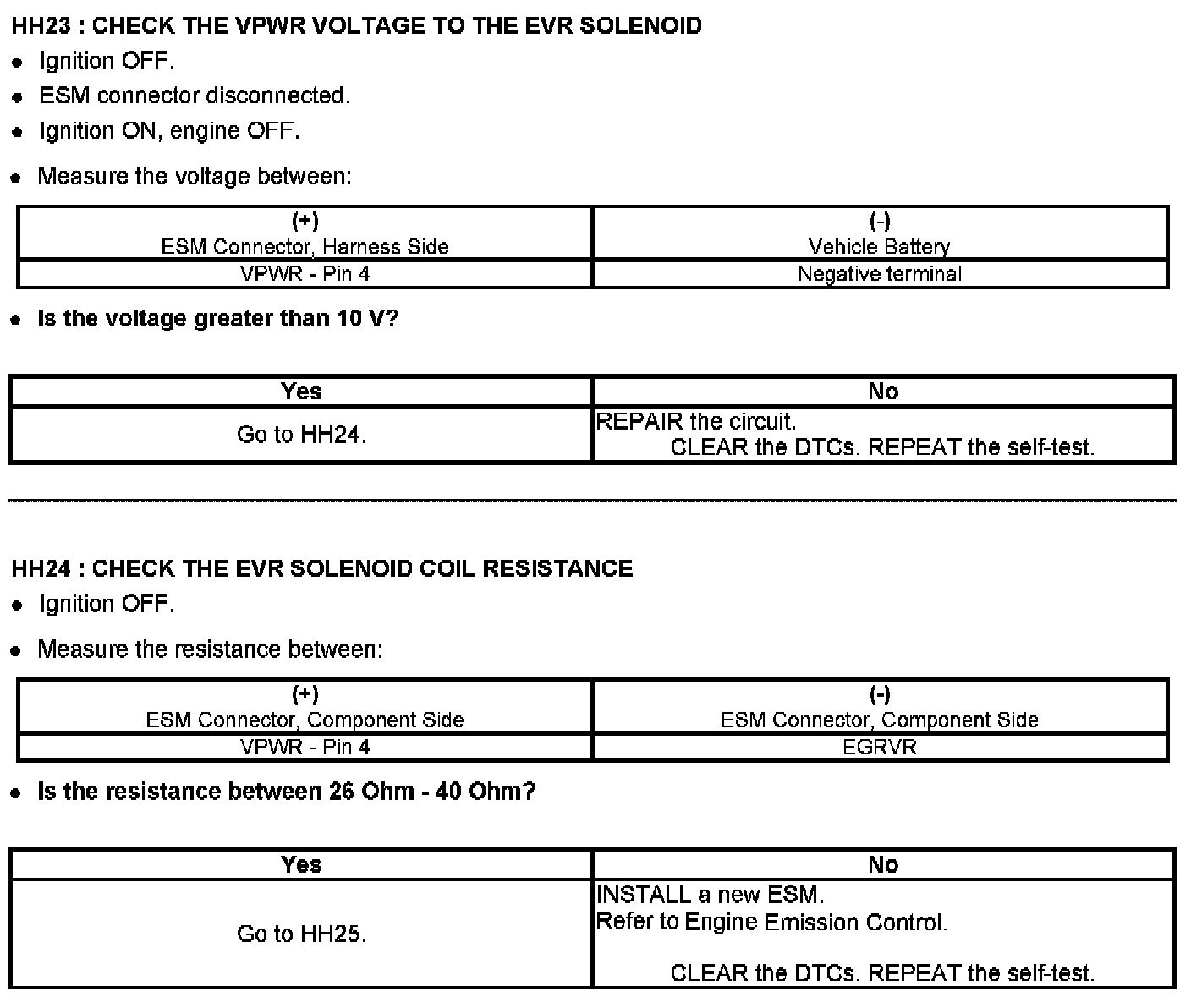

HH23 - HH24:
HH25 - HH26:

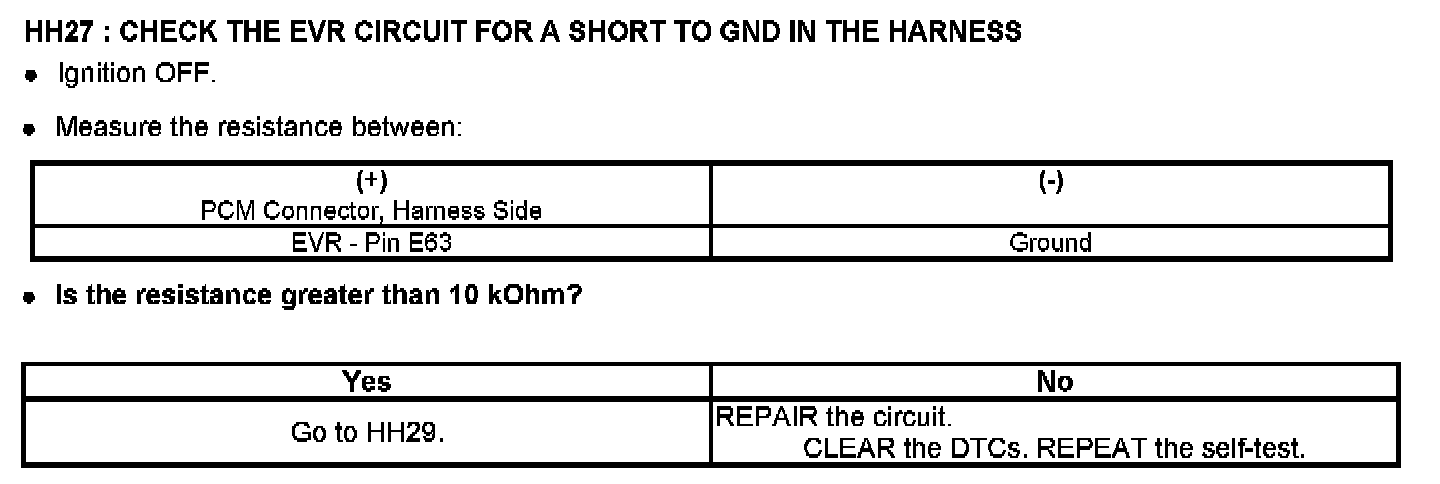

HH27:
HH28:
HH29:
