2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests DP: Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS)/Transfer Case Speed Sensor (TCSS)
PINPOINT TEST DP: OUTPUT SHAFT SPEED (OSS) SENSOR/VEHICLE SPEED SENSOR (VSS)/TRANSFER CASE SPEED SENSOR (TCSS)
WARNING: Crown Victoria Police Interceptor vehicles equipped with fire suppression system, refer to Section 419-03 for Important Safety Warnings. Failure to follow these instructions may result in personal injury.
This pinpoint test is intended to diagnose the following:
^ OSS/VSS/TCSS (7F293/7M101/7H103)
^ harness circuits: OSS/VSS TCSS and SIGRTN
^ powertrain control module (PCM) (12A650)

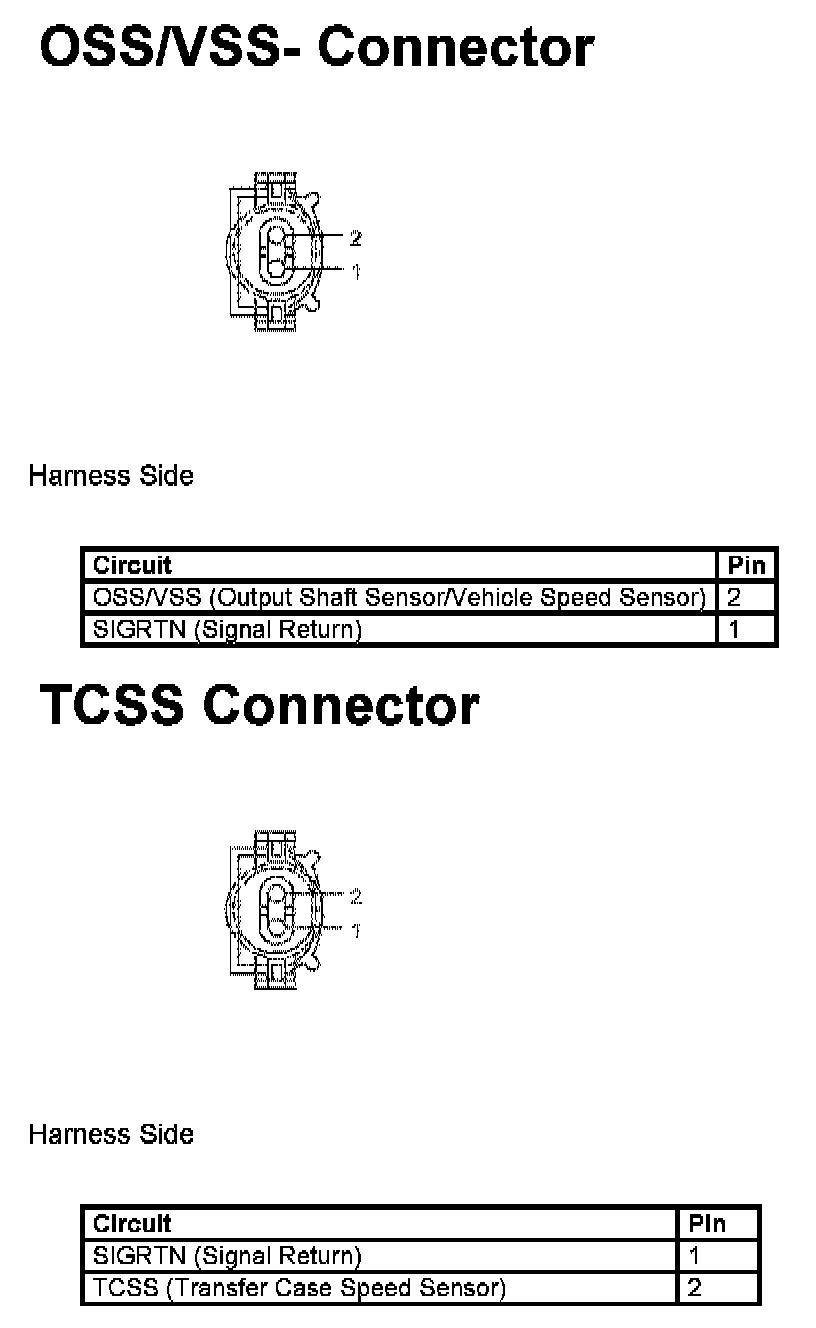

Reference:

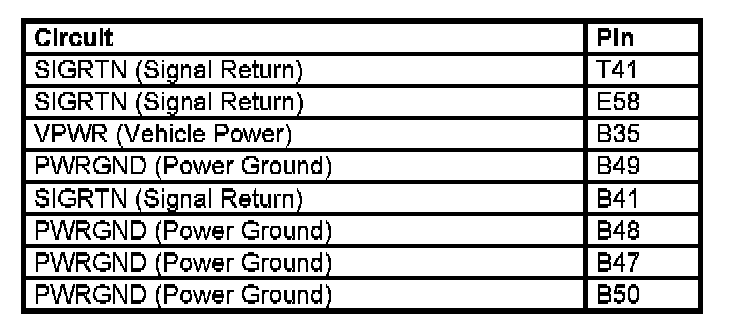

PCM Connector
Reference:

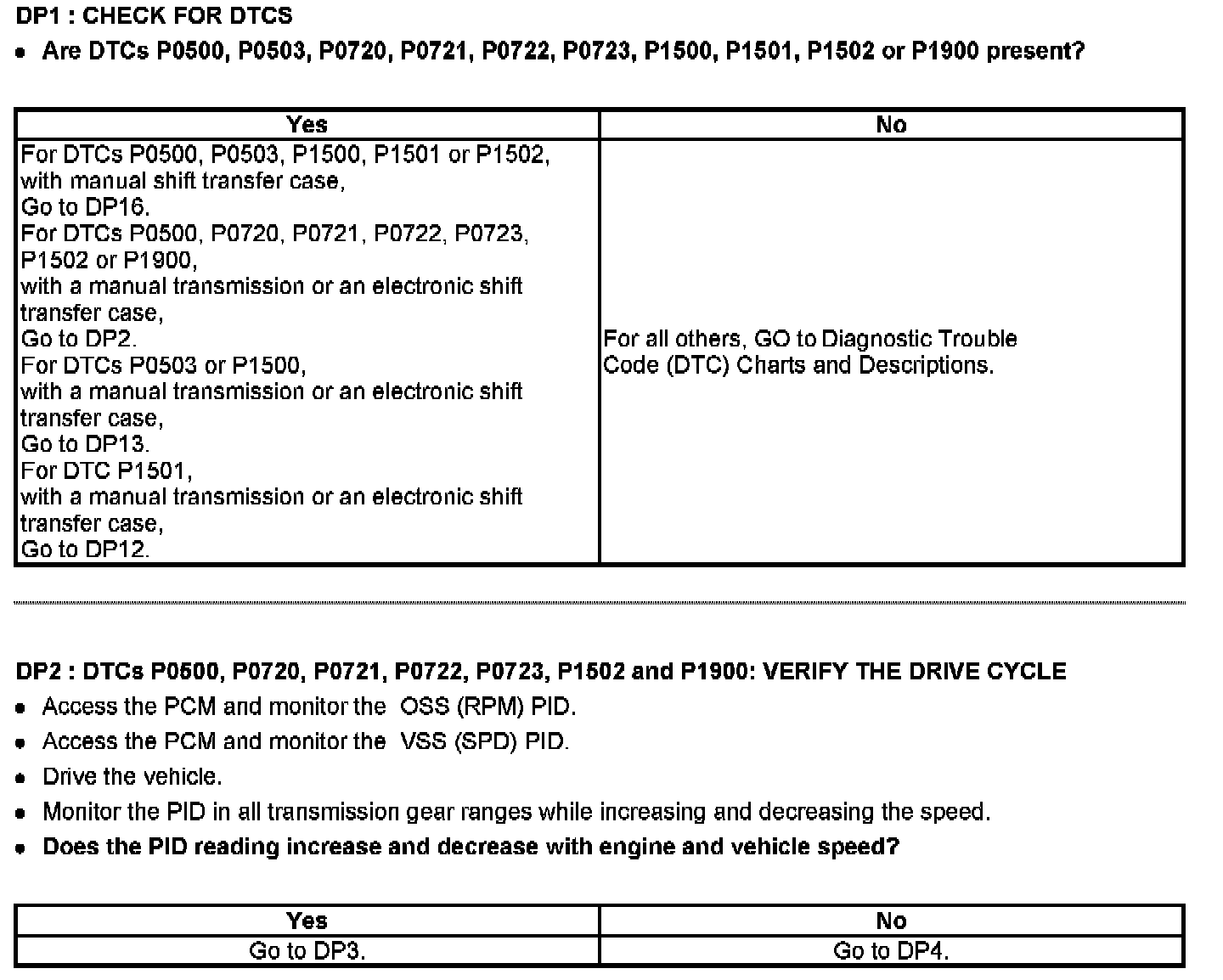

DP1 - DP2:

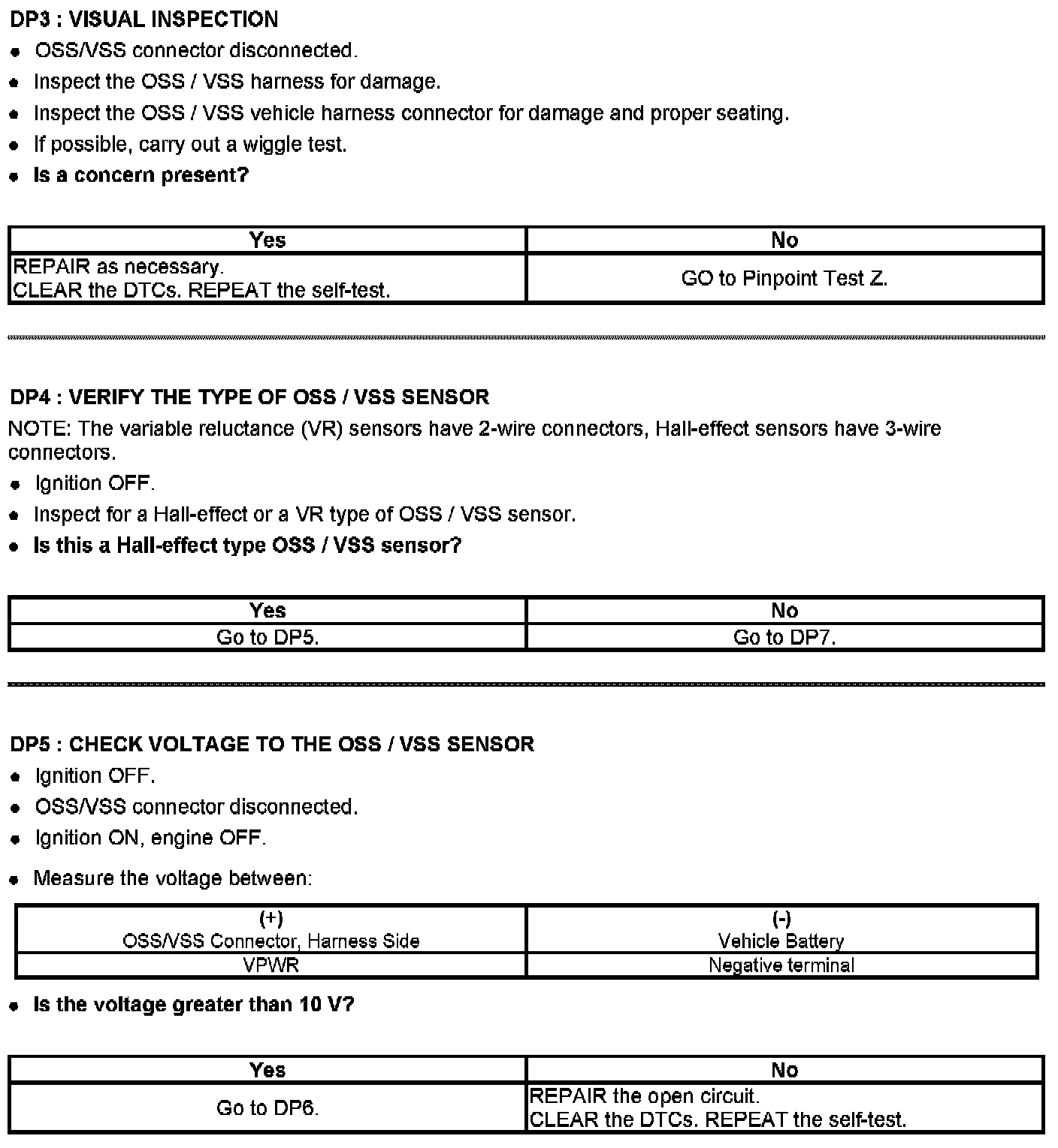

DP3 - DP5:

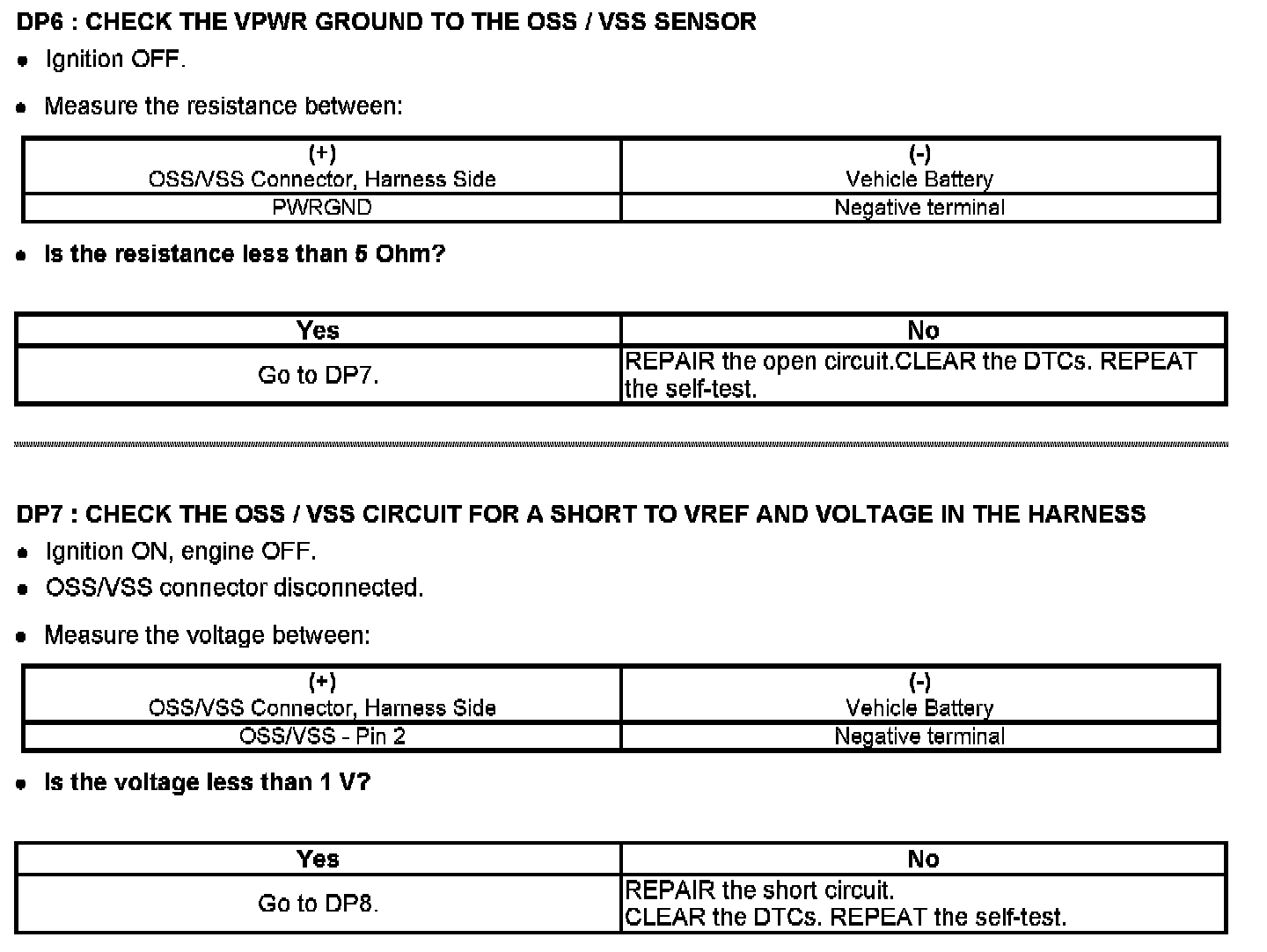

DP6 - DP7:

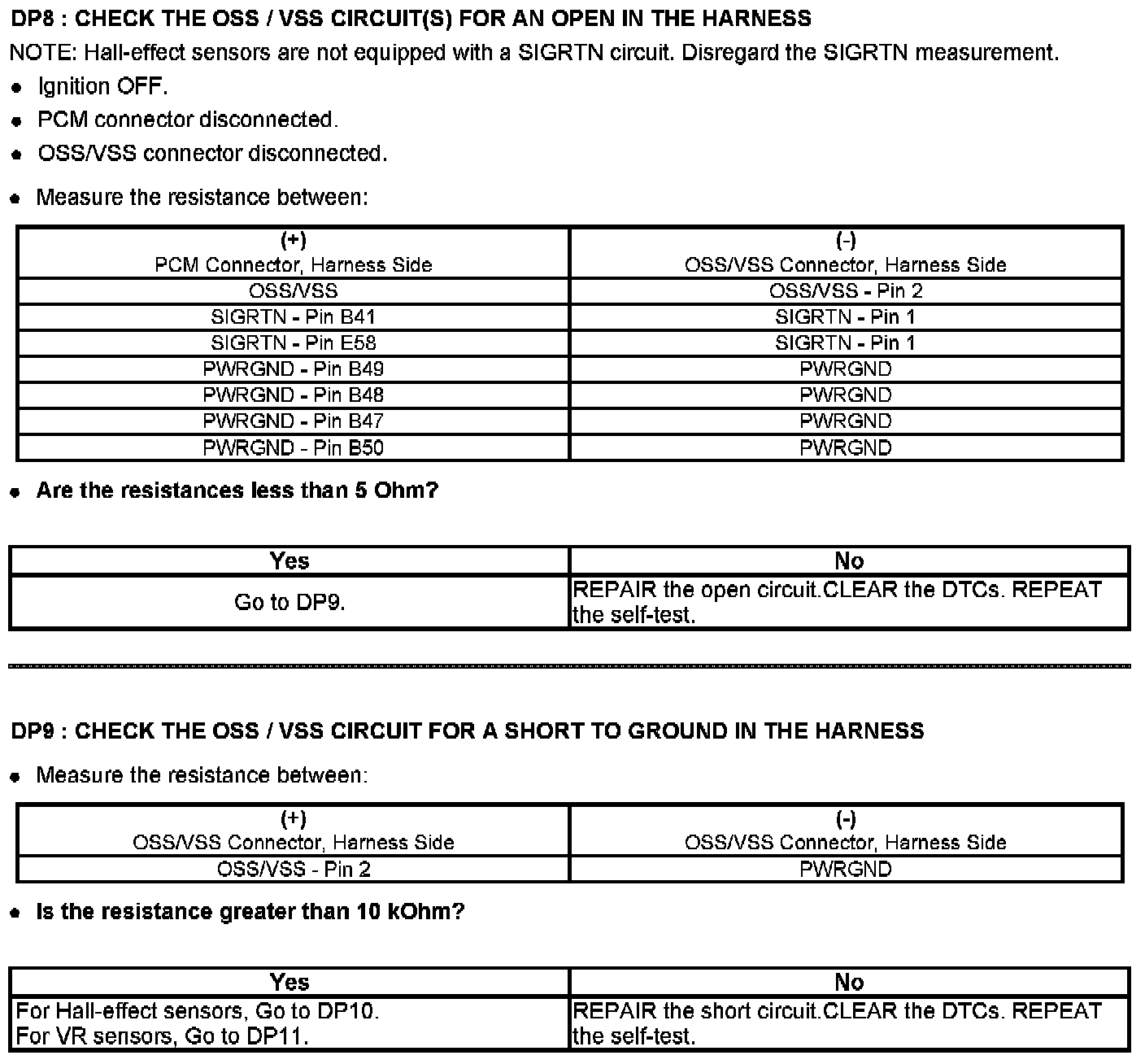

DP8 - DP9:

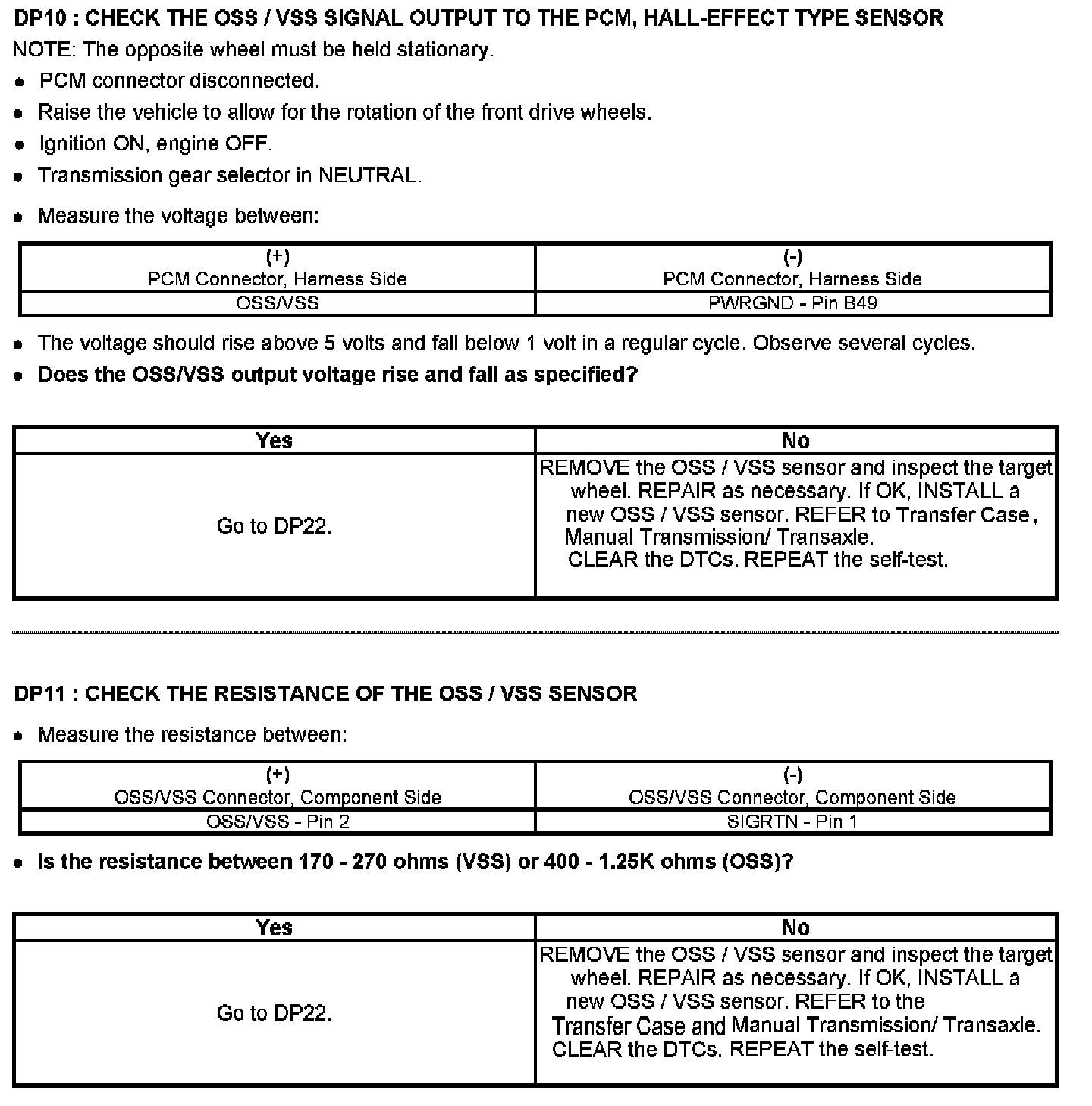

DP10 - DP11:
DP12 - DP13:
DP14 - DP15:
DP16:

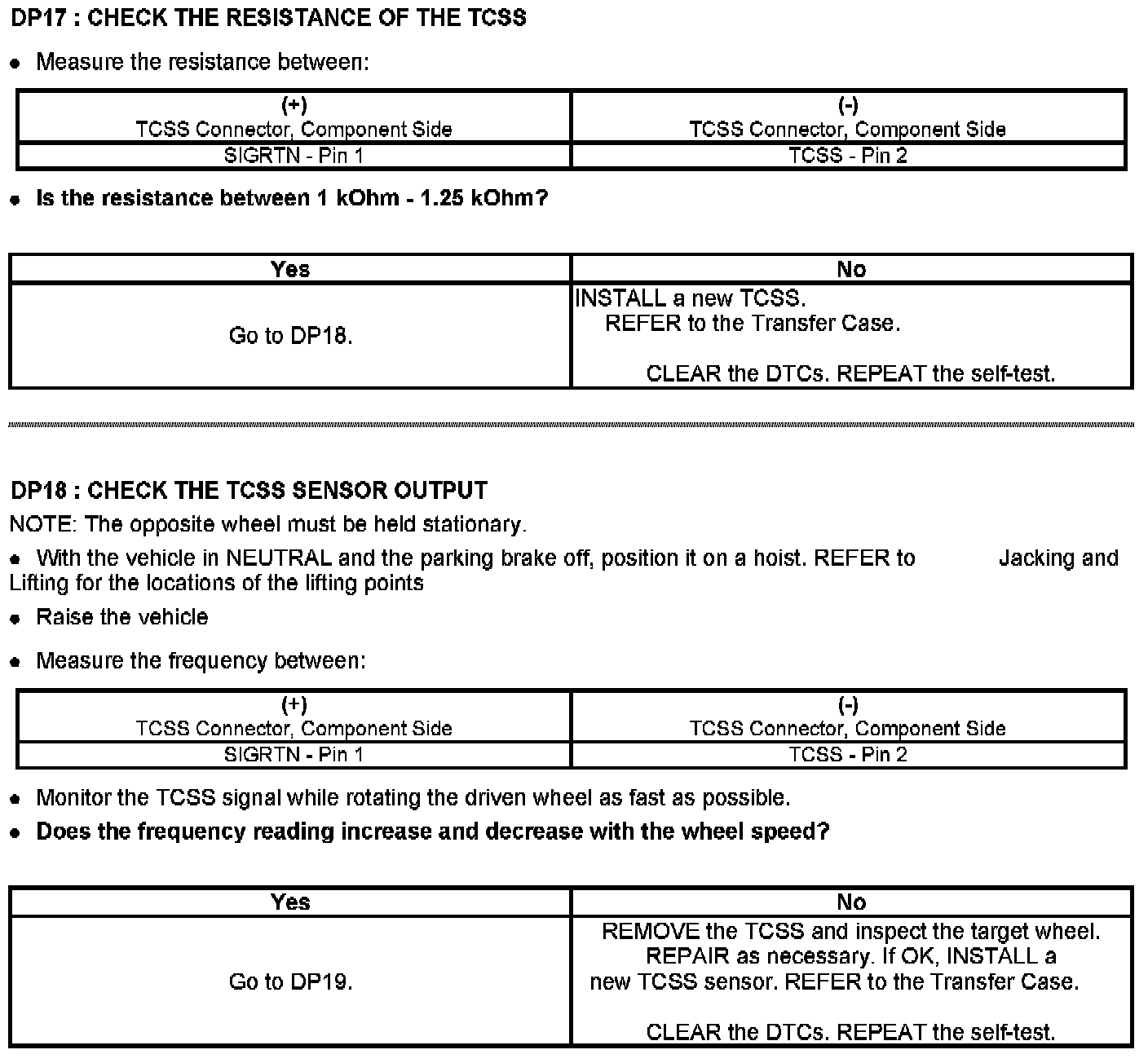

DP17 - DP18:

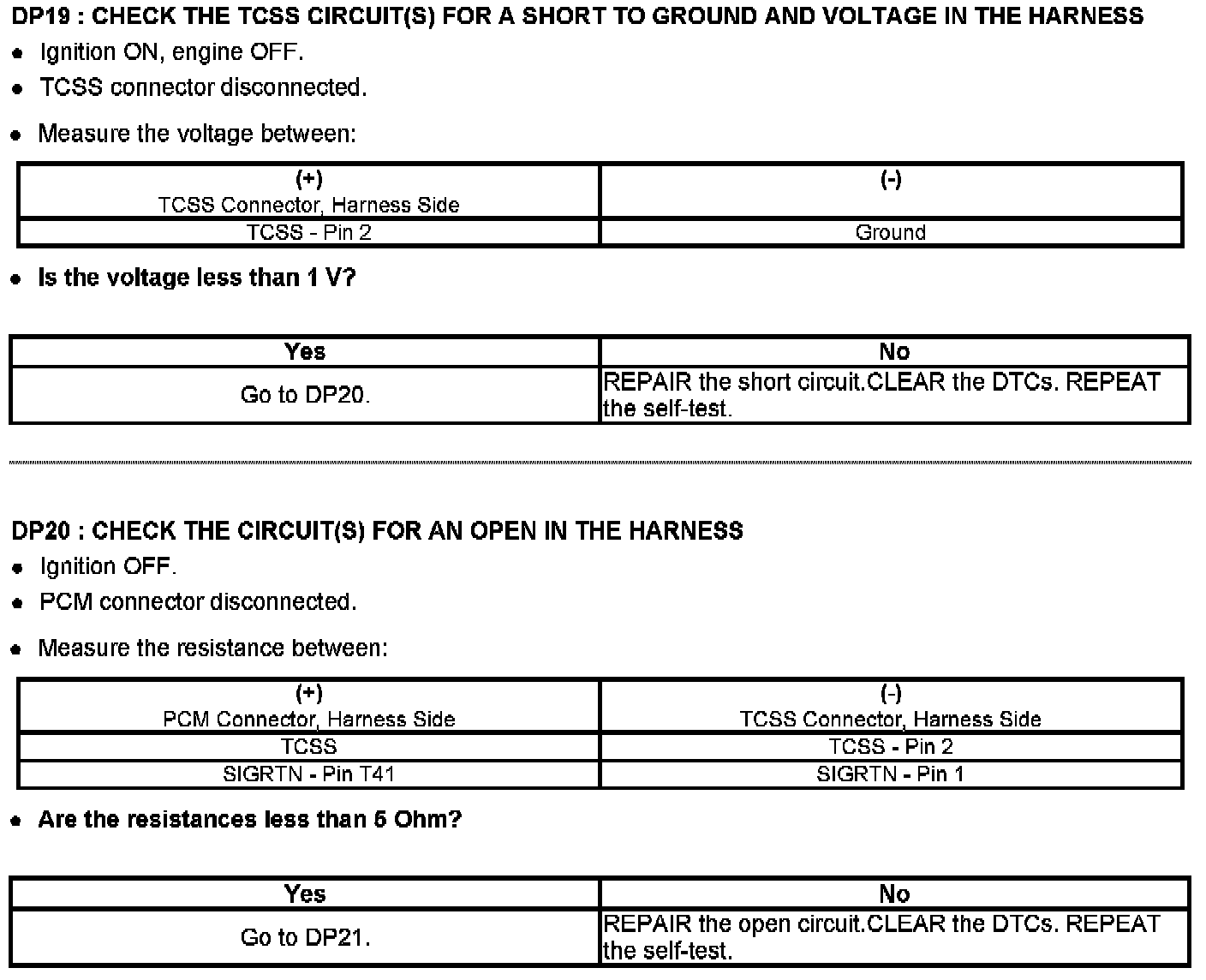

DP19 - DP20:
DP21 - DP22:
