2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests DH: Throttle Position (TP) Sensor
PINPOINT TEST DH: THROTTLE POSITION (TP) SENSOR
This pinpoint test is intended to diagnose the following:
^ TP sensor (9B989)
^ binding or sticking throttle linkage
^ harness circuits: TP SIGRTN VREF VPWR and PWRGND
^ powertrain control module ( PCM) (12A650)
Reference:
PCM Connector

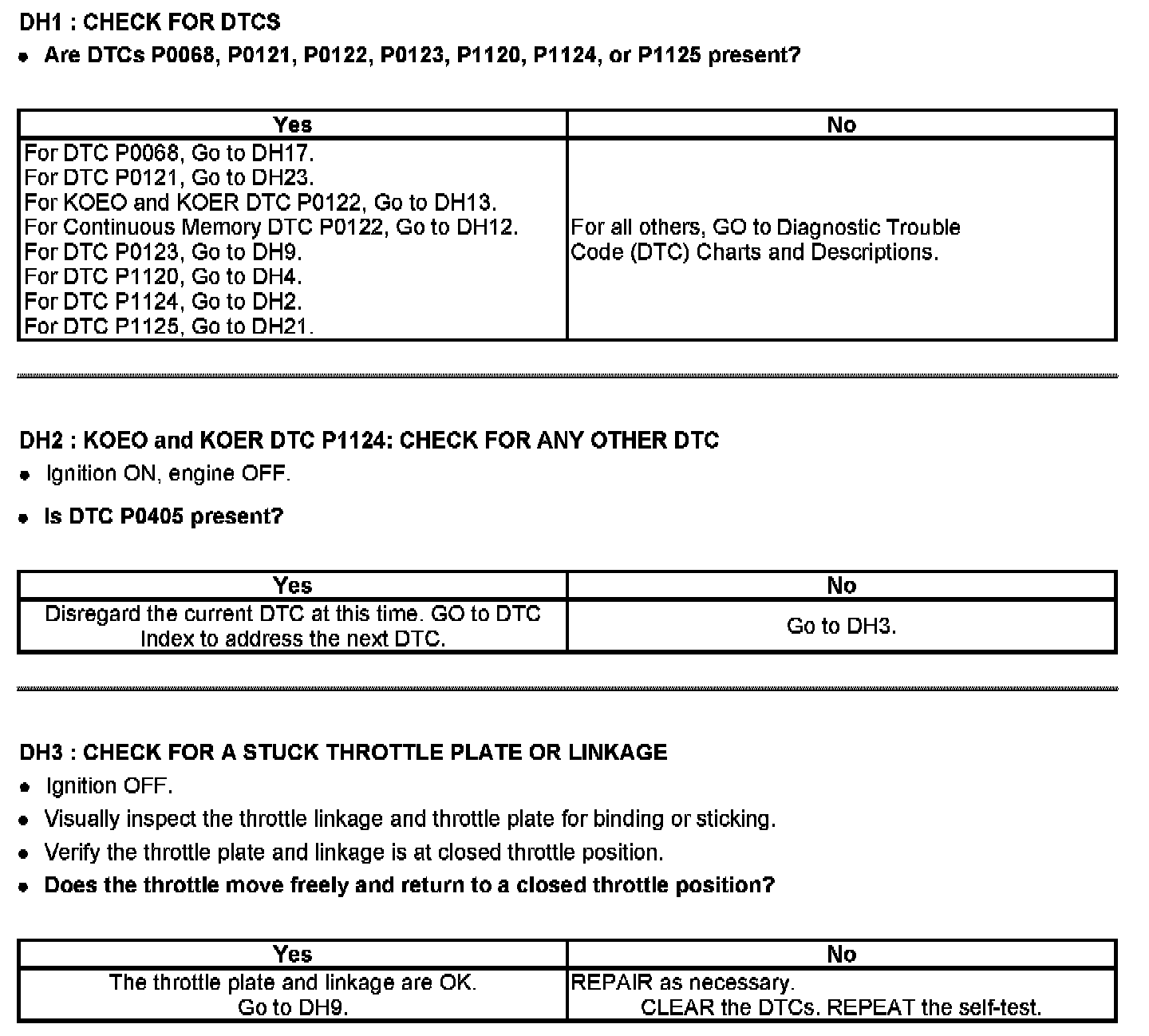

DH1 - DH3:
DH4 - DH6:
DH7 - DH8:
DH9 - DH10:
DH11 - DH12:
DH13 - DH14:
DH15 - DH16:
DH17 - DH18:
DH19 - DH20:

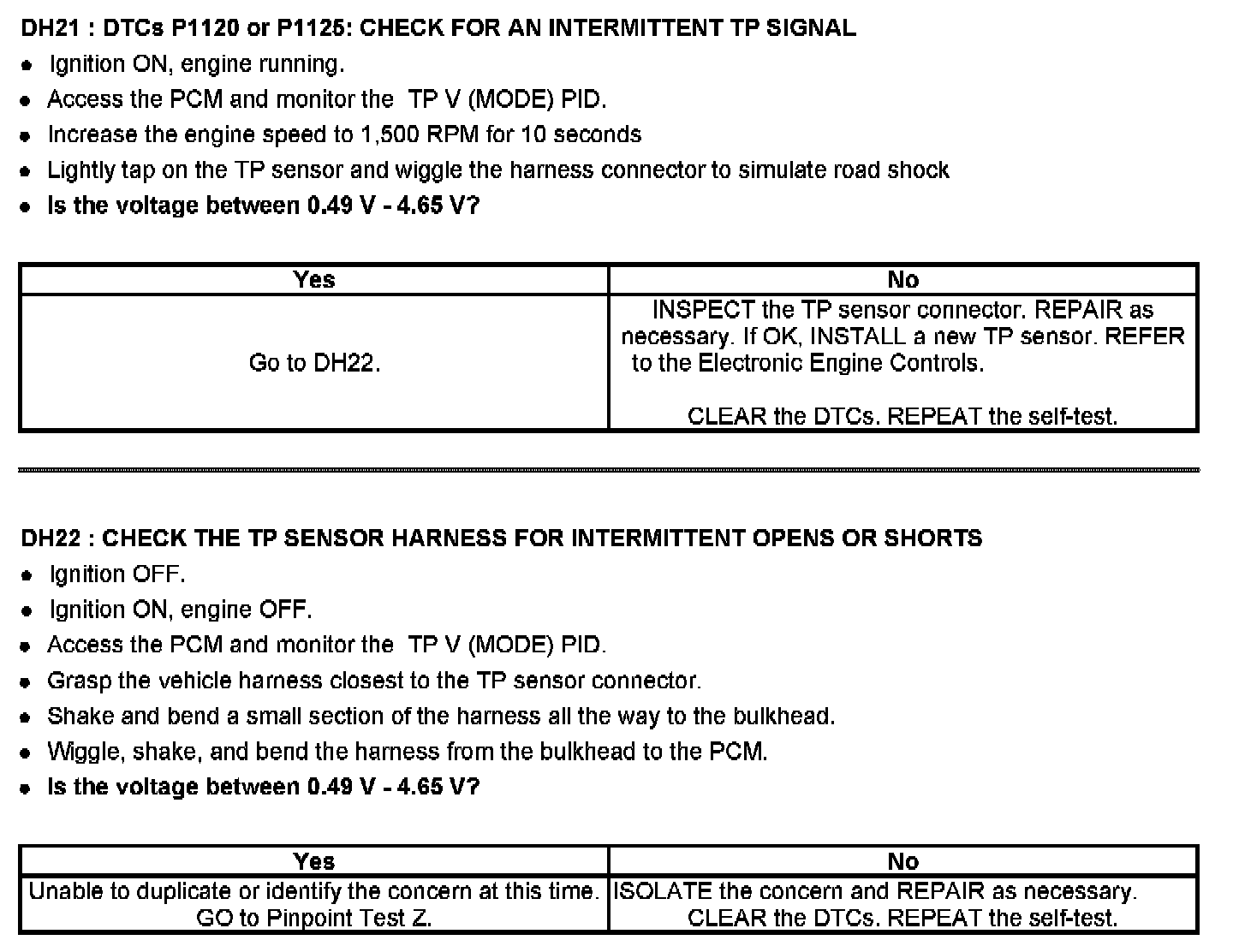

DH21 - DH22:

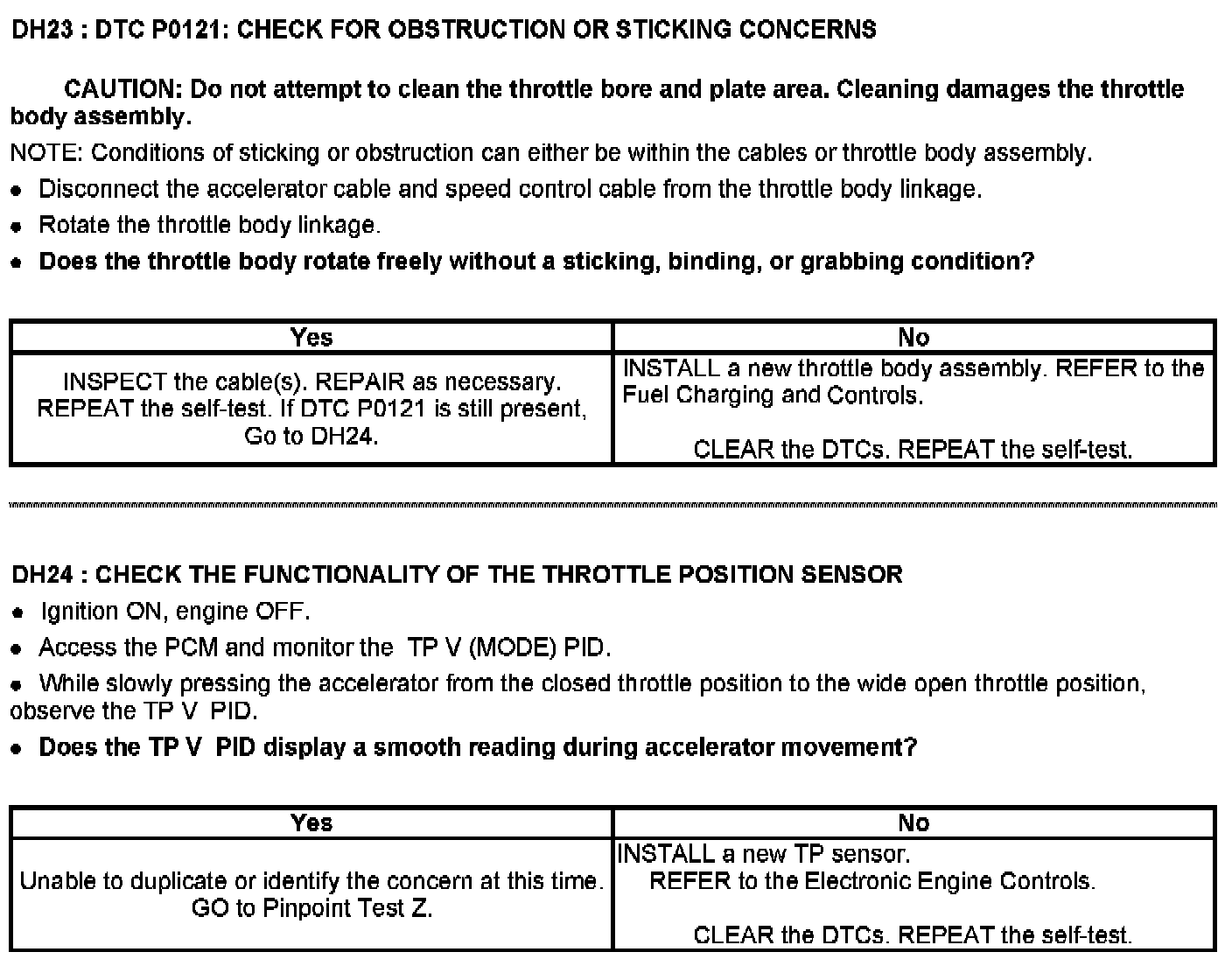

DH23 - DH24:
DH25:
