2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests DF: Vehicle Speed Circuit (VSC) Check
PINPOINT TEST DF: VEHICLE SPEED CIRCUIT (VSC) CHECK
WARNING: Strict observance of posted speed limits and driving conditions is mandatory when proceeding through the following drive cycles.
Failure to follow these instructions may result in personal injury.
This pinpoint test is intended to diagnose the following:
^ harness circuits: VSC
^ powertrain control module (PCM) (12A650)

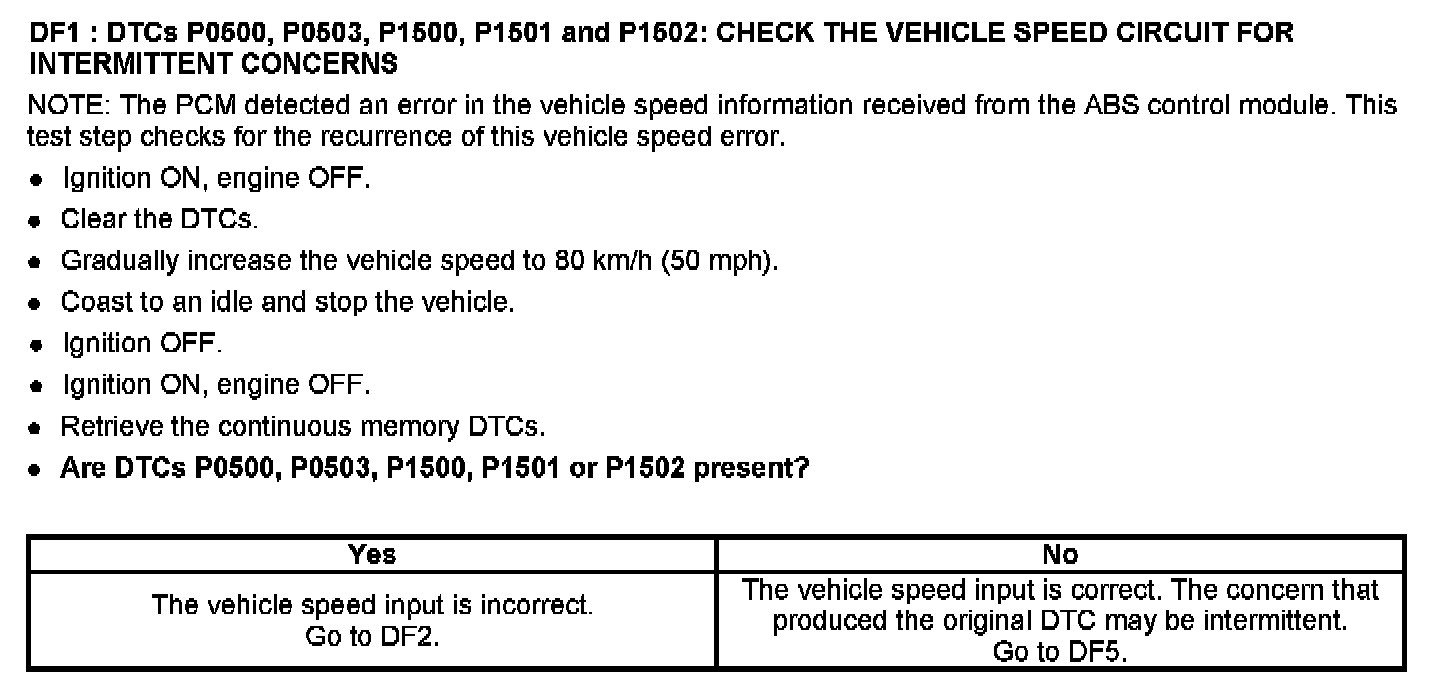

DF1:

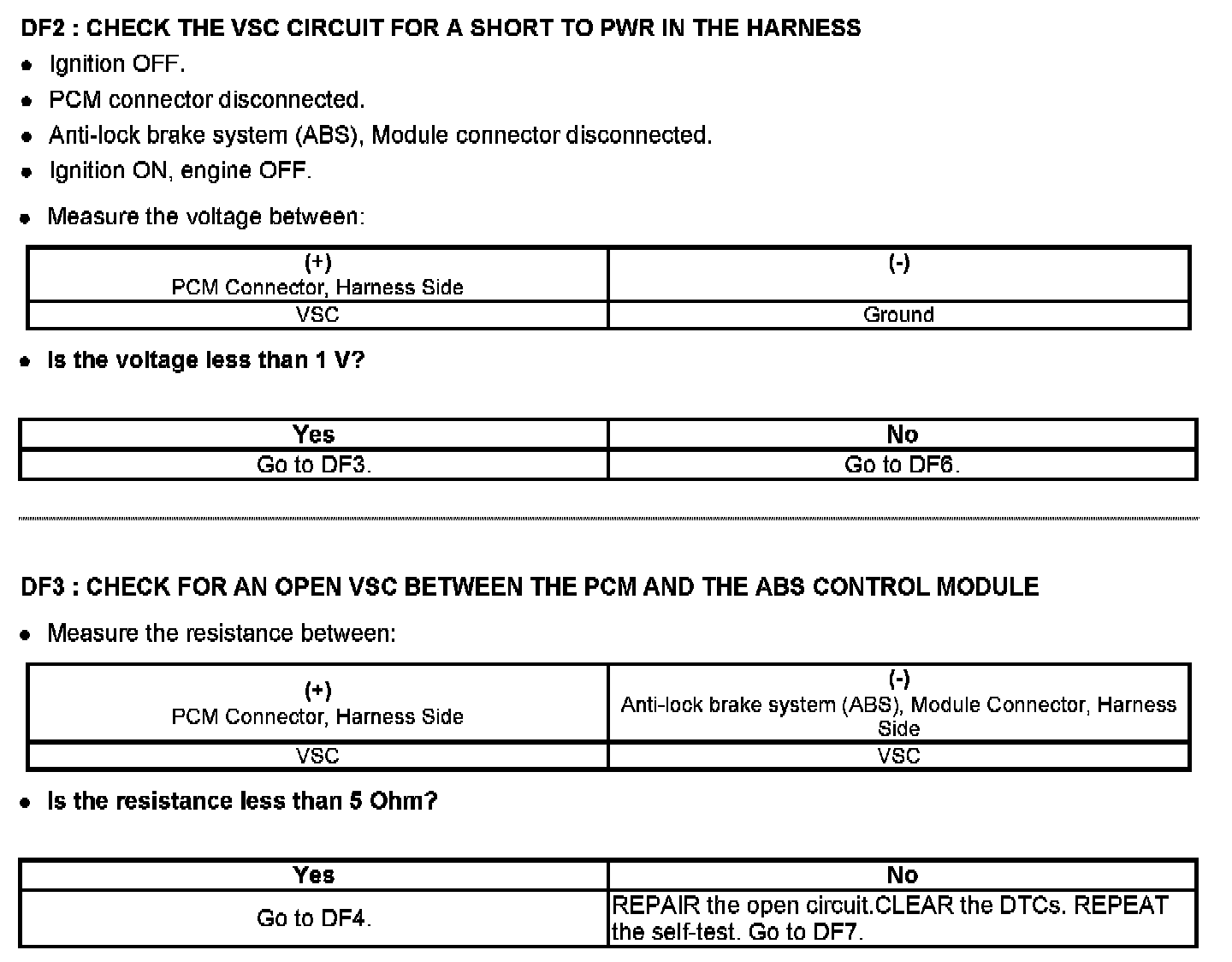

DF2 - DF3:
DF4 - DF5:

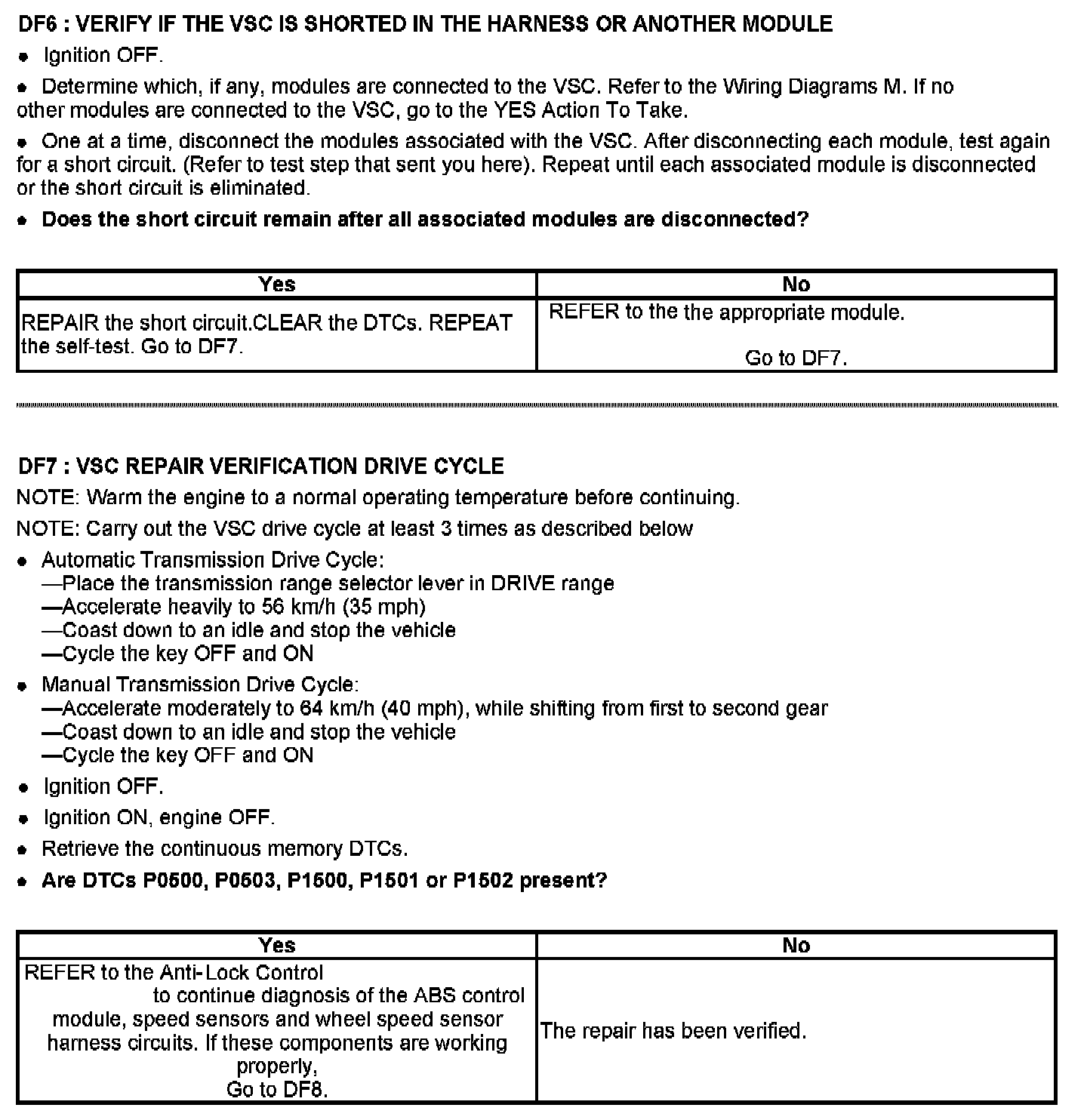

DF6 - DF7:

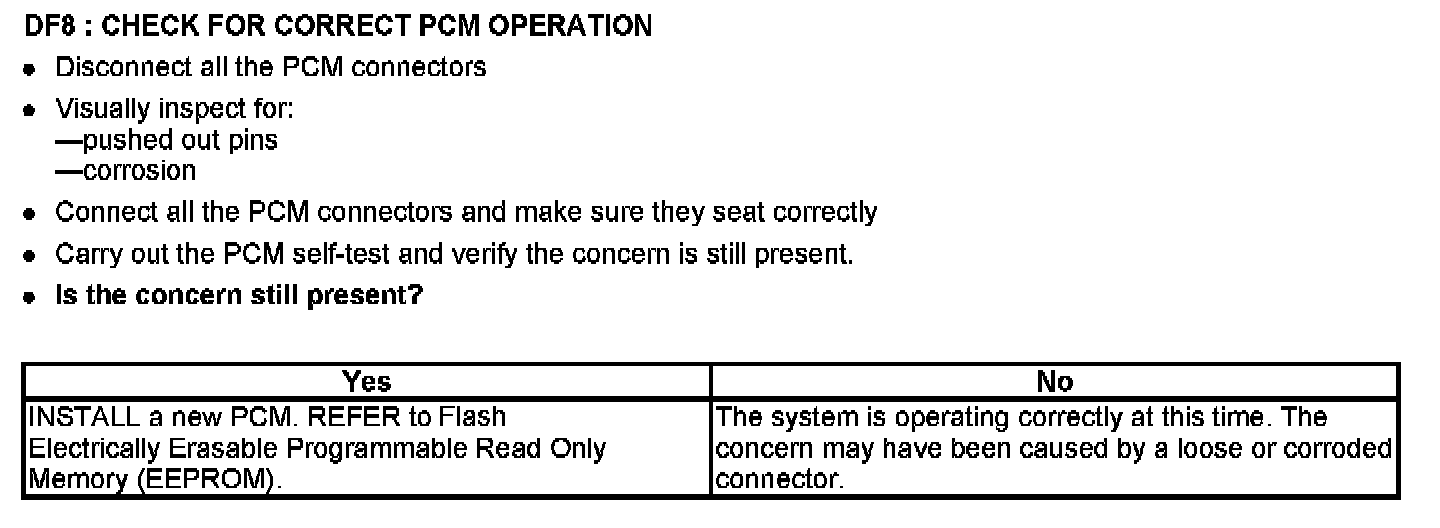

DF8:
