2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests DC: Mass Air Flow (MAF) Sensor
PINPOINT TEST DC: MASS AIR FLOW (MAF) SENSOR
This pinpoint test is intended to diagnose the following:
^ mass air flow sensor (12B579)
^ harness circuits: MAF SIG MAF RTN vehicle power (VPWR) power ground (PWRGND) IAT and SIGRTN
^ powertrain control module (PCM) (12A650)
Reference:

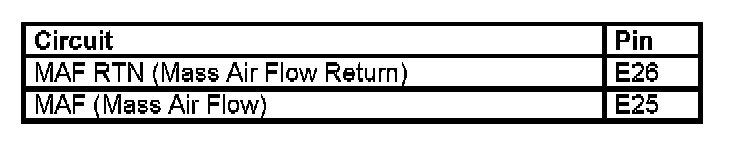

PCM Connector

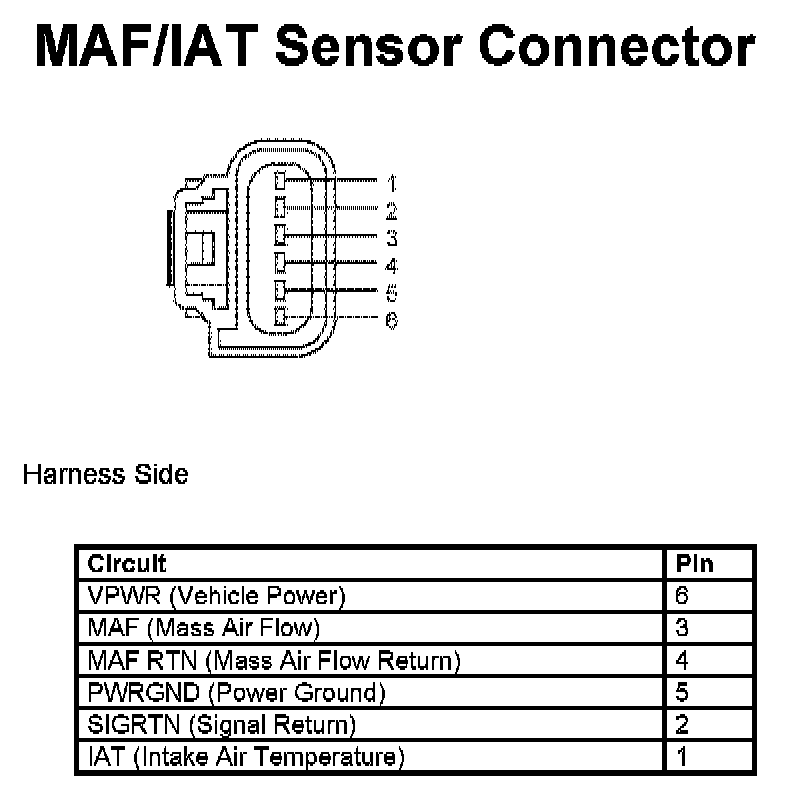

Reference:
DC1 - DC3:

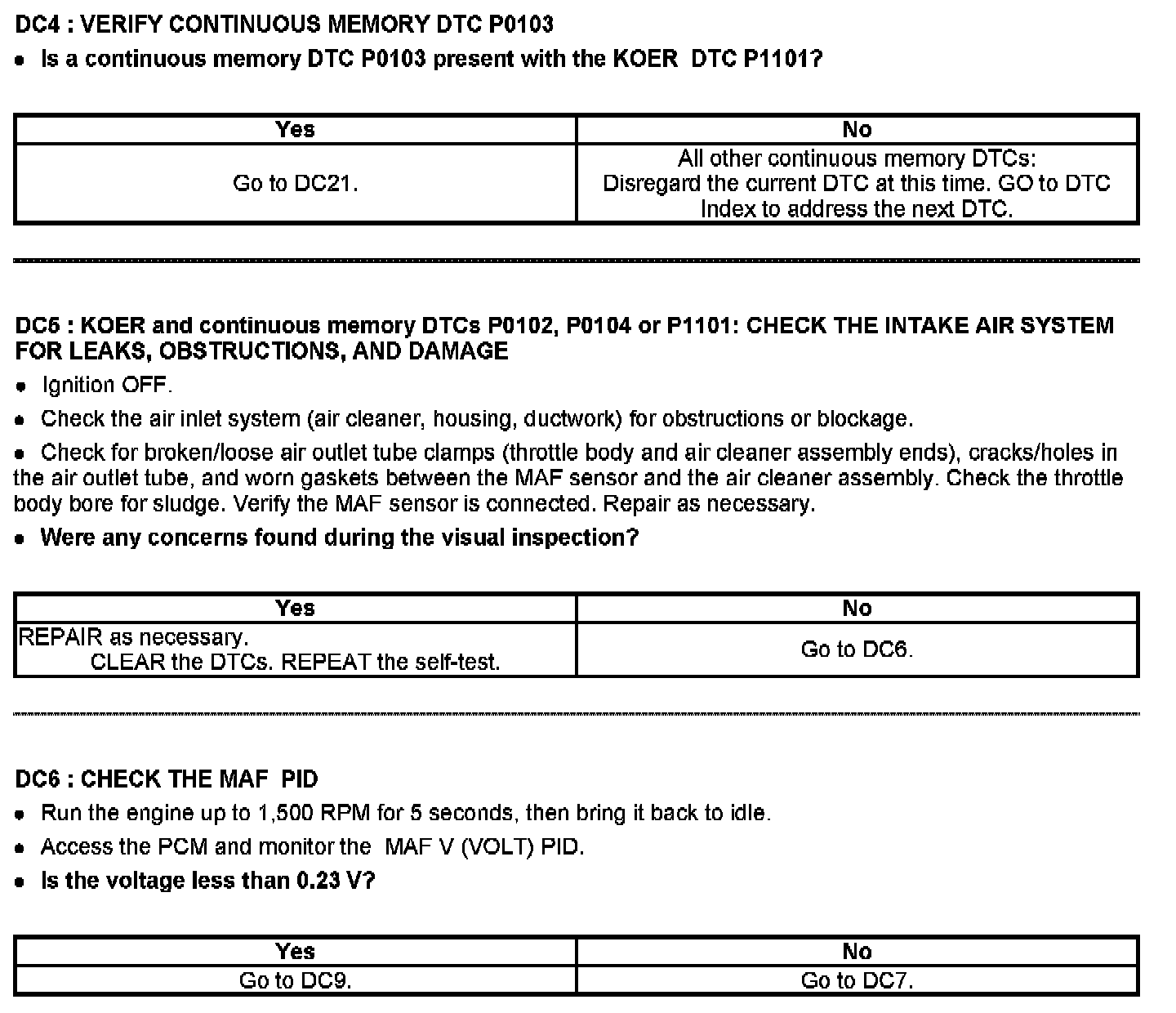

DC4 - DC6:

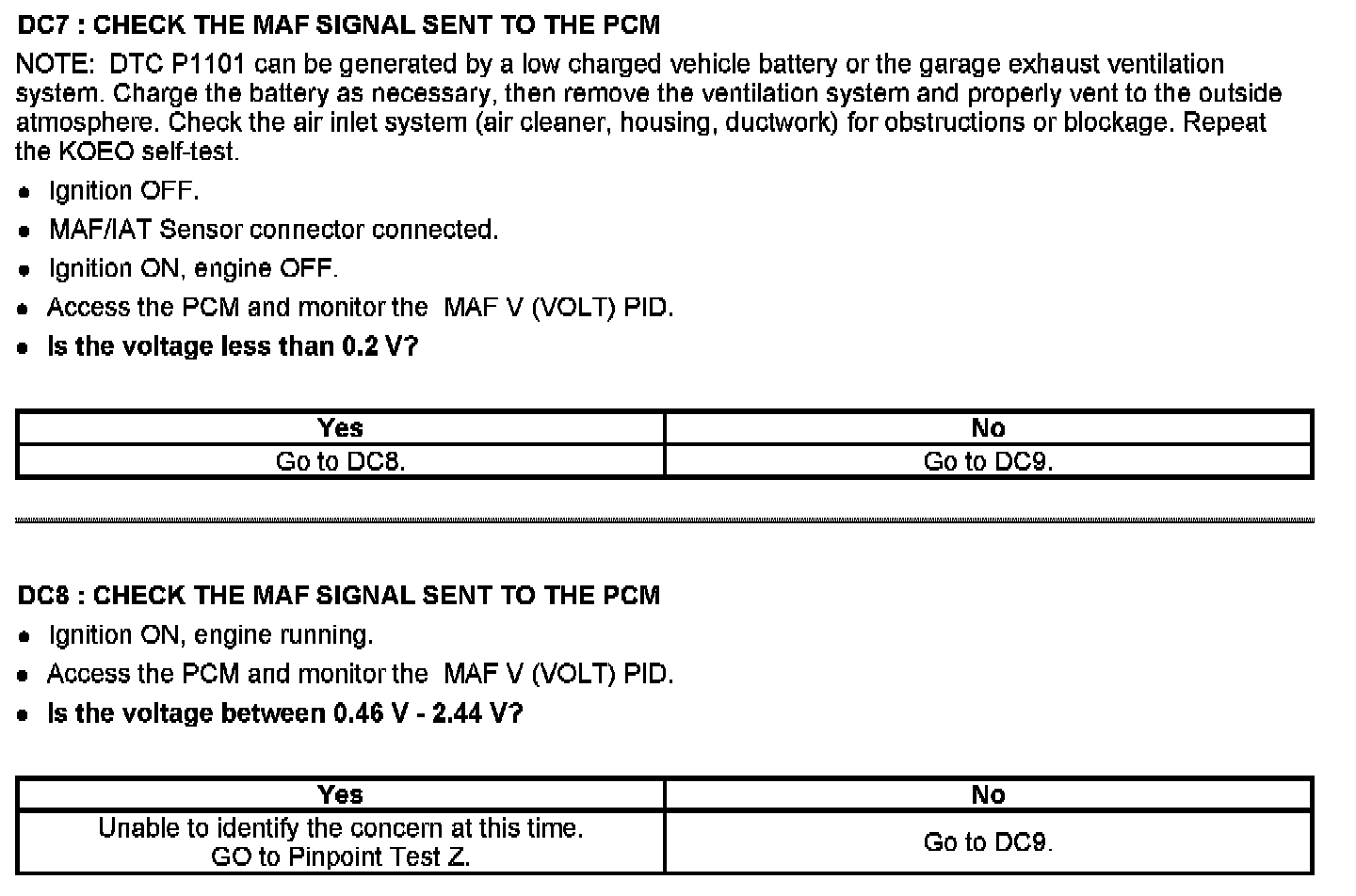

DC7 - DC8:

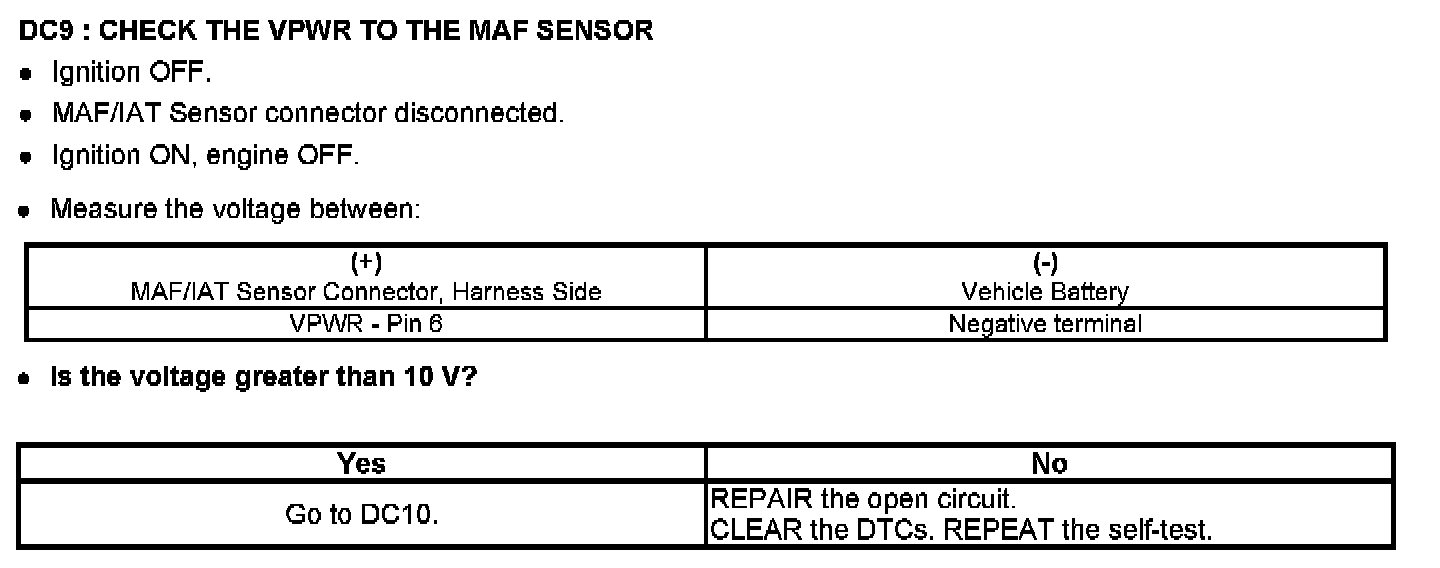

DC9:

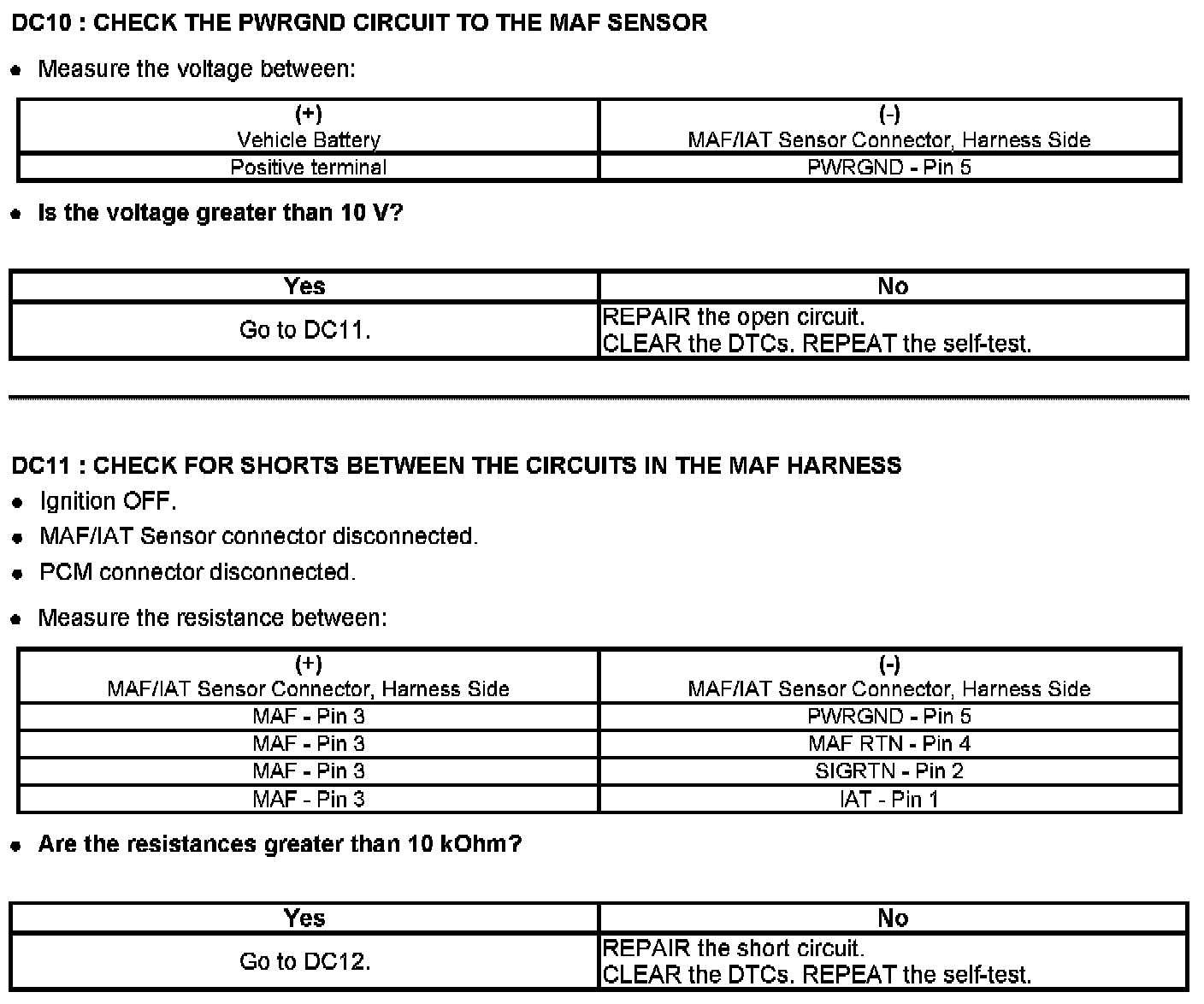

DC10 - DC11:
DC12 - DC13:

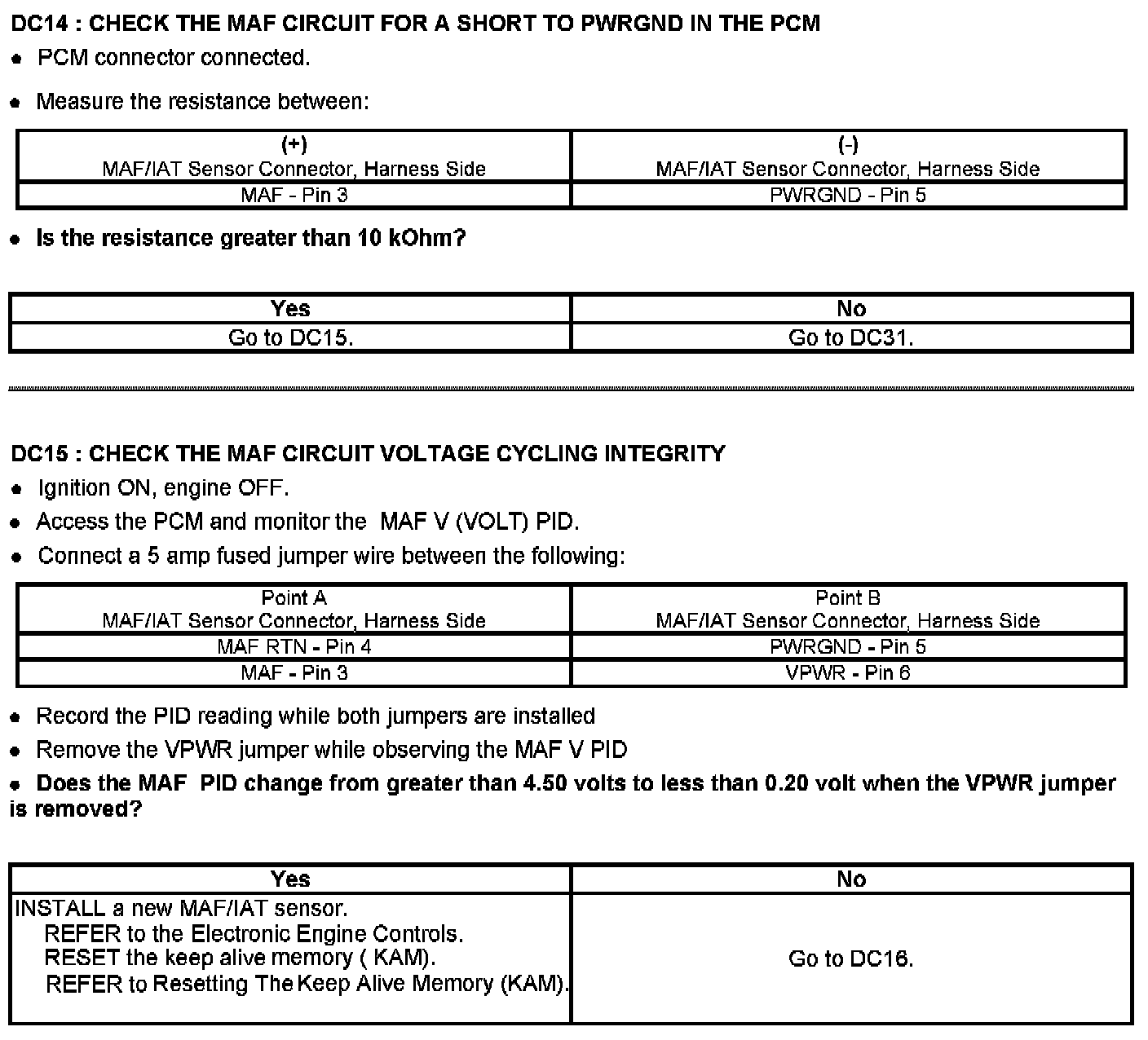

DC14 - DC15:

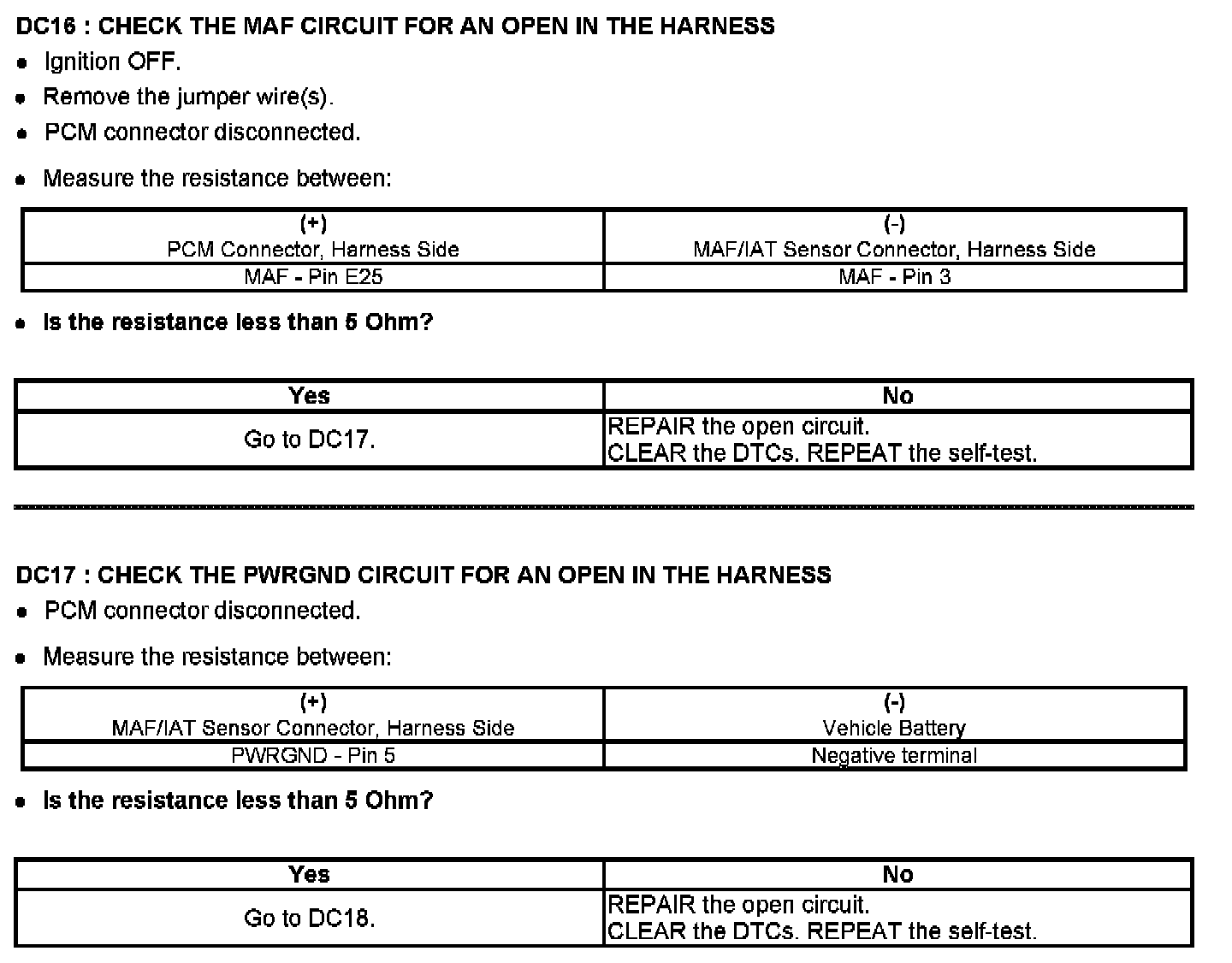

DC16 - DC17:
DC18 - DC19:
DC20 - DC22:
DC23 - DC24:

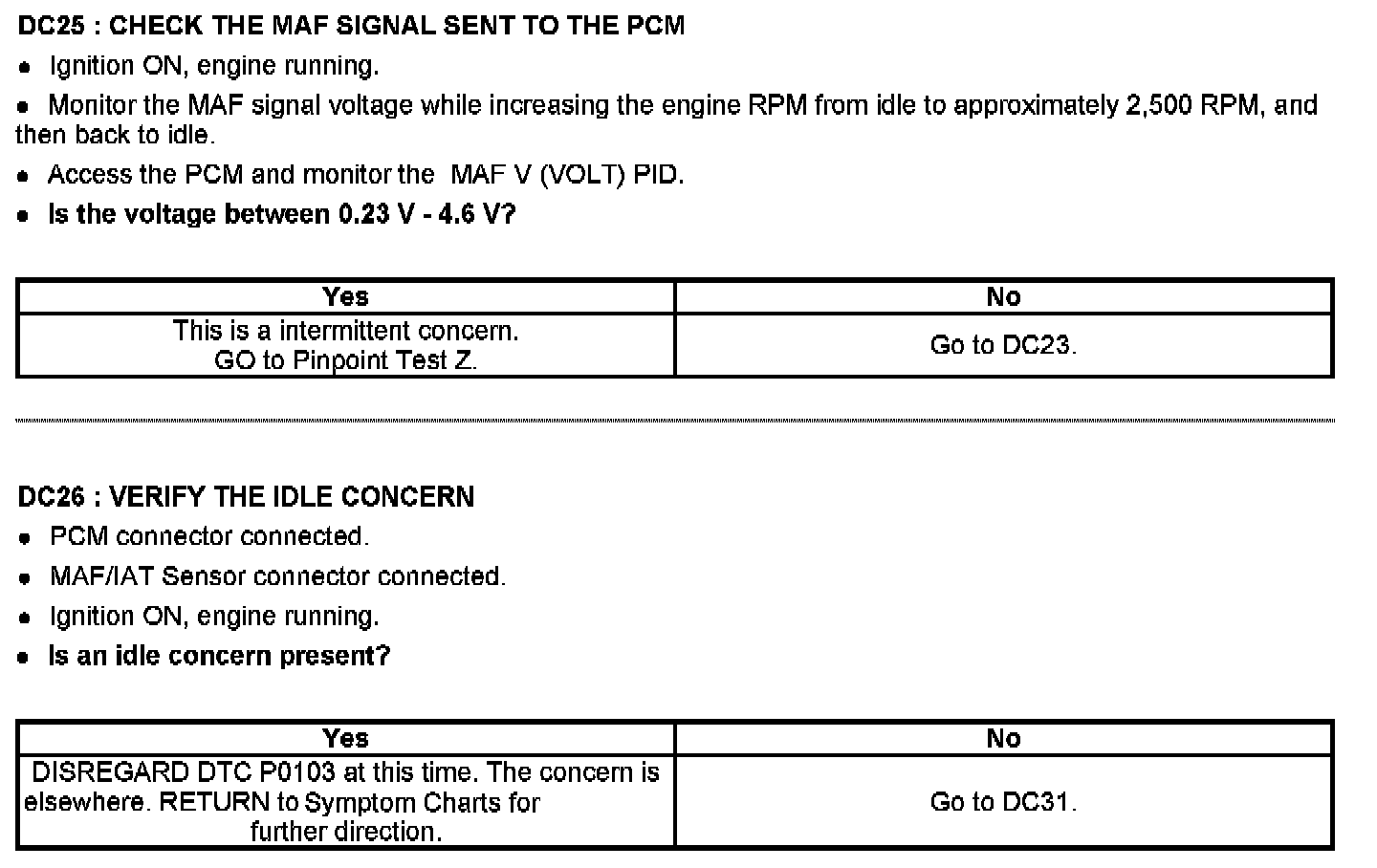

DC25 - DC26:

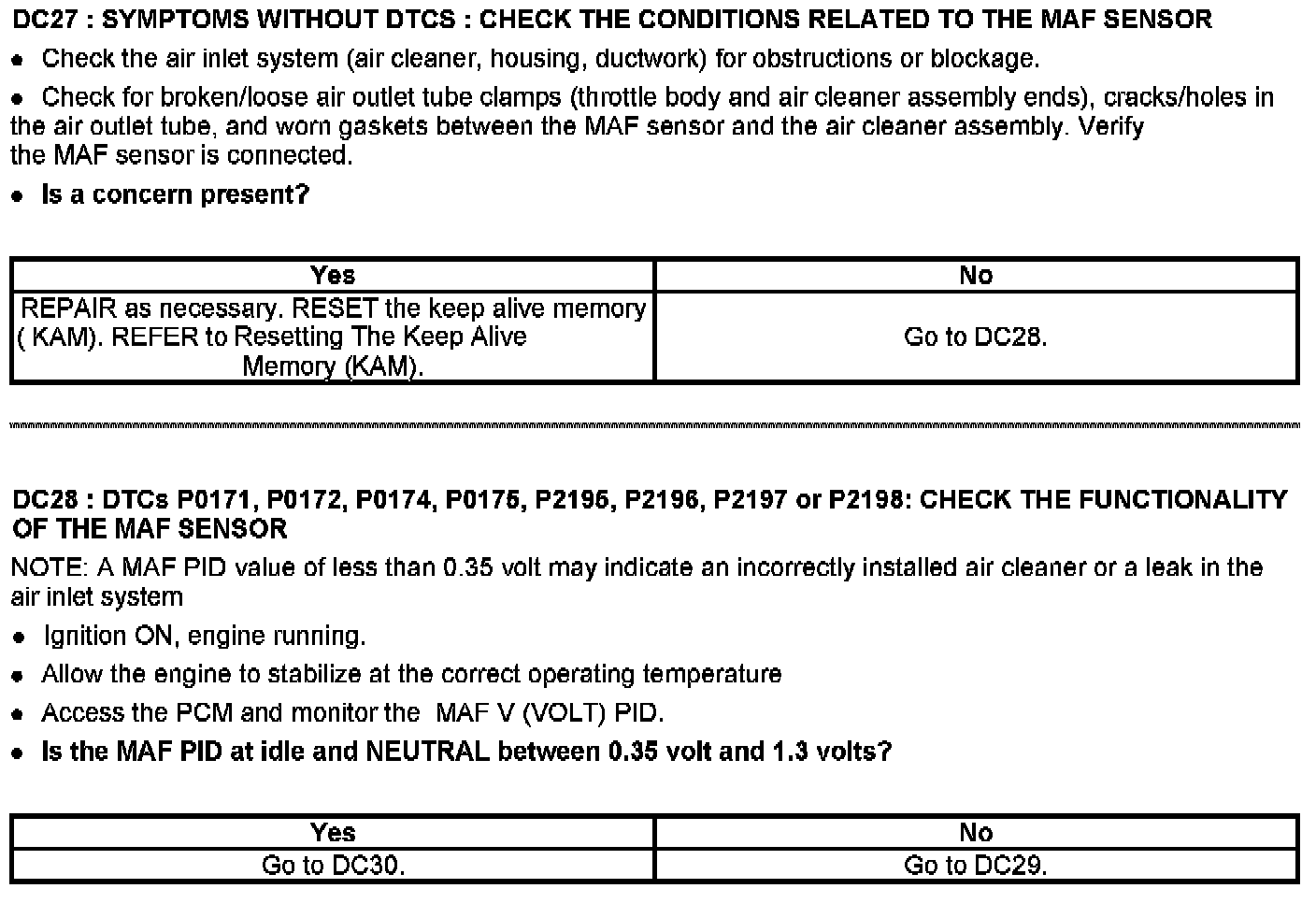

DC27 - DC28:
DC29 - DC30:

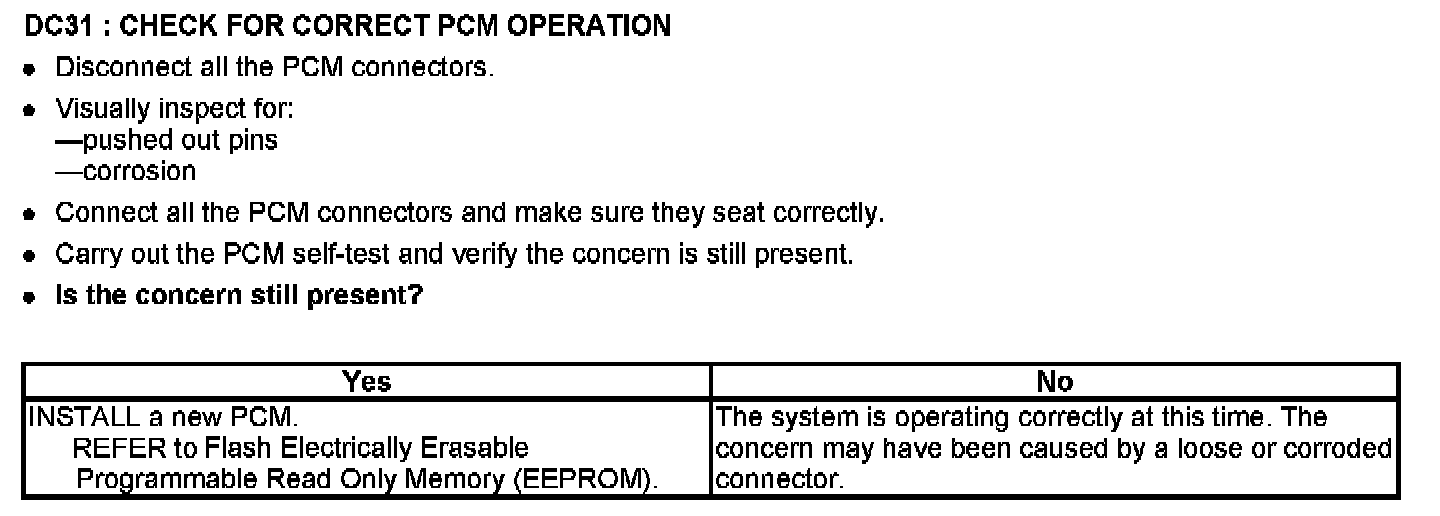

DC31:
