2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Power Steering Pressure (PSP) Switch
POWER STEERING PRESSURE (PSP) SWITCH
The PSP switch monitors the hydraulic pressure within the power steering system. The PSP switch is a normally closed switch that opens as the hydraulic pressure increases. The PCM provides a low current voltage on the PSP circuit. When the PSP switch is closed, this voltage is pulled low through the SIG RTN circuit. The PCM uses the input signal from the PSP switch to compensate for additional loads on the engine by adjusting the idle RPM and preventing engine stall during parking maneuvers. Also, the PSP switch signals the PCM to adjust the transmission electronic pressure control (EPC) pressure during increased engine load, for example during parking maneuvers.

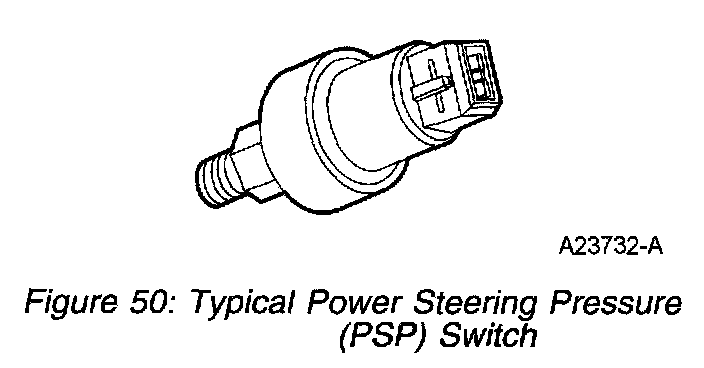

Typical Power Steering Pressure (PSP) Switch:
The PSP switch monitors the hydraulic pressure within the power steering system. The PSP switch is a normally closed switch that opens as the hydraulic pressure increases. The PCM provides a low current voltage on the PSP circuit. When the PSP switch is closed, this voltage is pulled low through the SIG RTN circuit. The PCM uses the input signal from the PSP switch to compensate for additional loads on the engine by adjusting the idle RPM and preventing engine stall during parking maneuvers. Also, the PSP switch signals the PCM to adjust the transmission electronic pressure control (EPC) pressure during increased engine load, for example during parking maneuvers.
