2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair

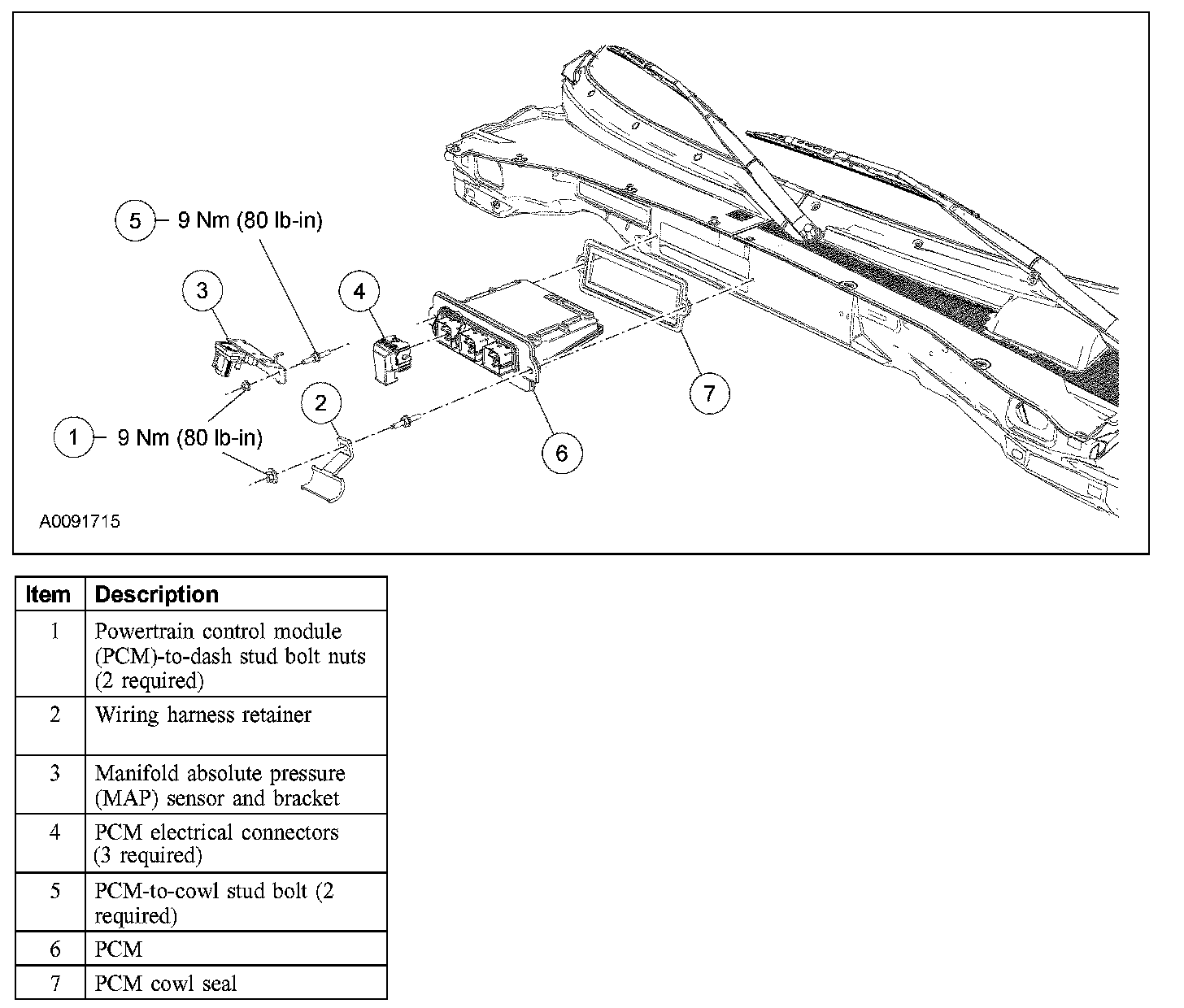

POWERTRAIN CONTROL MODULE (PCM)
Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the 2 powertrain control module (PCM) stud bolt nuts and position the wiring harness and the manifold absolute pressure sensor aside.
- To install, tighten to 9 Nm (80 lb-in).
3. Disconnect the 3 PCM electrical connectors.
4. Remove the 2 stud bolts and the PCM.
- To install, tighten to 9 Nm (80 lb-in).
5. Remove the PCM cowl seal.
6. To install, reverse the removal procedure.
Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the 2 powertrain control module (PCM) stud bolt nuts and position the wiring harness and the manifold absolute pressure sensor aside.
- To install, tighten to 9 Nm (80 lb-in).
3. Disconnect the 3 PCM electrical connectors.
4. Remove the 2 stud bolts and the PCM.
- To install, tighten to 9 Nm (80 lb-in).
5. Remove the PCM cowl seal.
6. To install, reverse the removal procedure.
