2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Temperature Control Switch
TEMPERATURE CONTROL SWITCH
Removal and Installation
1. NOTE: Place the temperature selector switch in the full cold position before disengaging the temperature blend door actuator.
Remove the instrument panel center finish panel.

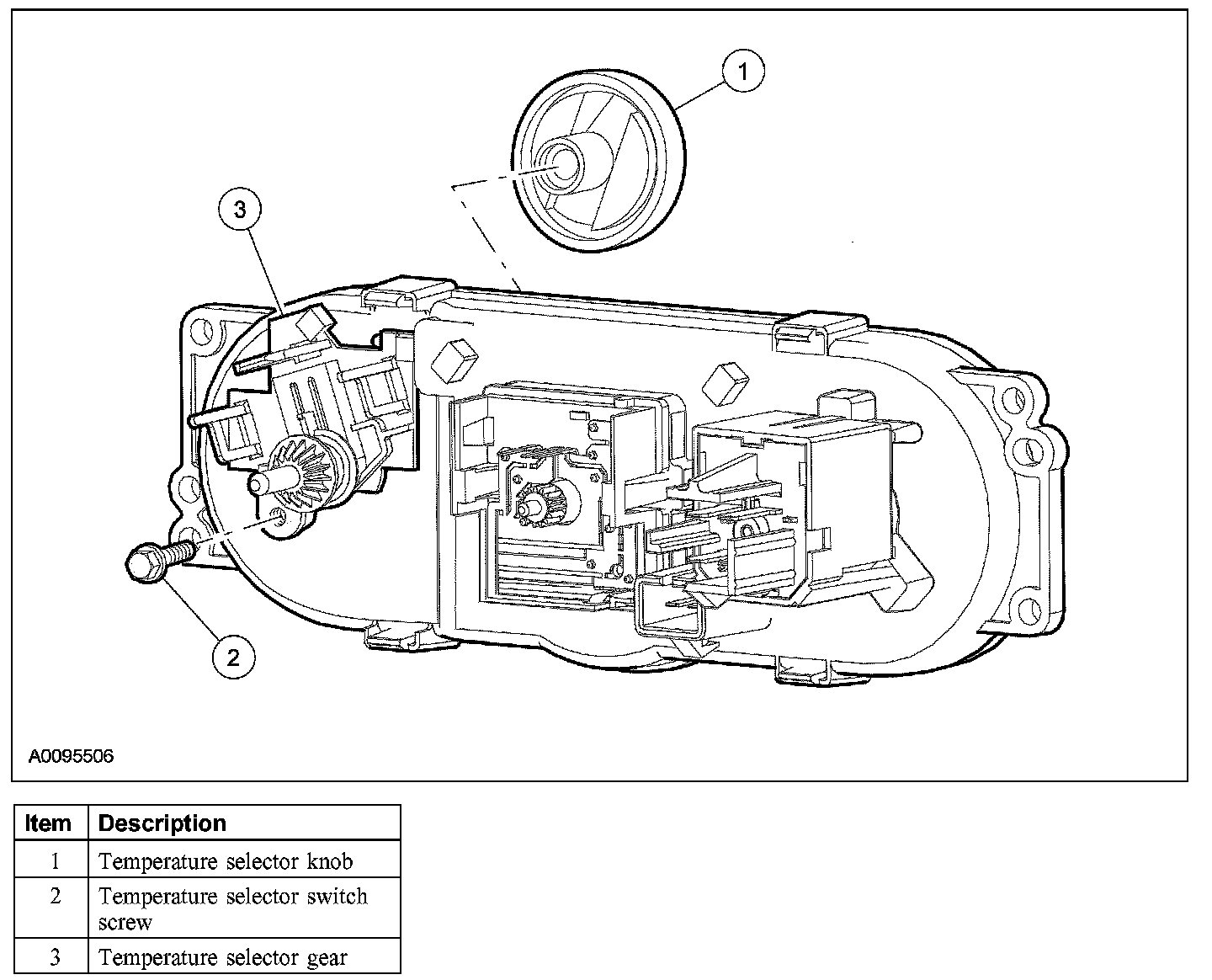

2. Remove the temperature selector switch knob.
3. Remove the temperature selector switch screw.

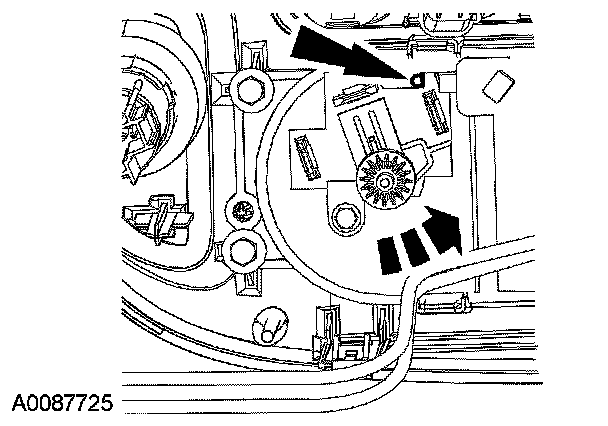

4. Press the tab and rotate the temperature selector switch counterclockwise.
- Remove the temperature selector switch.
5. To install, reverse the removal procedure.
- Place the temperature selector switch in the full cold position before installation.
Removal and Installation
1. NOTE: Place the temperature selector switch in the full cold position before disengaging the temperature blend door actuator.
Remove the instrument panel center finish panel.
2. Remove the temperature selector switch knob.
3. Remove the temperature selector switch screw.
4. Press the tab and rotate the temperature selector switch counterclockwise.
- Remove the temperature selector switch.
5. To install, reverse the removal procedure.
- Place the temperature selector switch in the full cold position before installation.
