2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Test I: Flash Code 4 - Clutch/Neutral Switch Circuit Failure
PINPOINT TEST I: FLASH CODE 4 - CLUTCH/NEUTRAL SWITCH CIRCUIT FAILURE
Normal Operation
When the speed control actuator carries out the self-test, it checks for continuity to ground through circuit 199 (LB/YE). This is accomplished by sending a voltage reference signal to the clutch pedal position (CPP) switch (manual transaxle) or the transmission range (TR) sensor (automatic transaxle).
When the clutch is applied, the signal is routed through circuit 359 (GY/RD) to the powertrain control module (PCM). The PCM provides an internal ground.
When the automatic transaxle is in NEUTRAL, the signal is routed through circuit 57 (BK) to ground.
Possible Causes
- Circuit 57 (BK) open
- Circuit 199 (LB/YE) open
- Circuit 359 (GY/RD) open
- CPP switch
- TR sensor
- Speed control actuator
- PCM

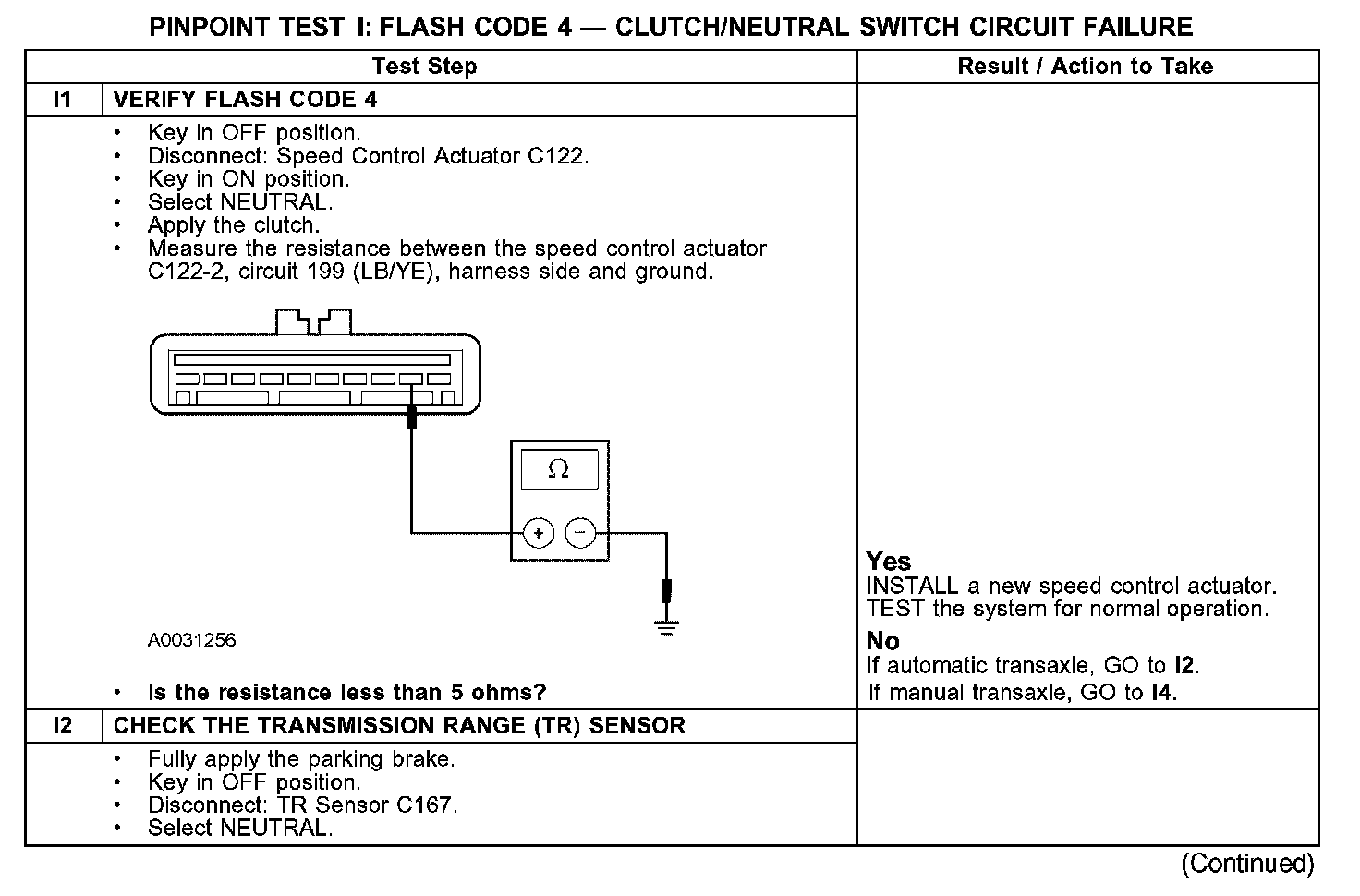

I1-I2:
I2-I4:

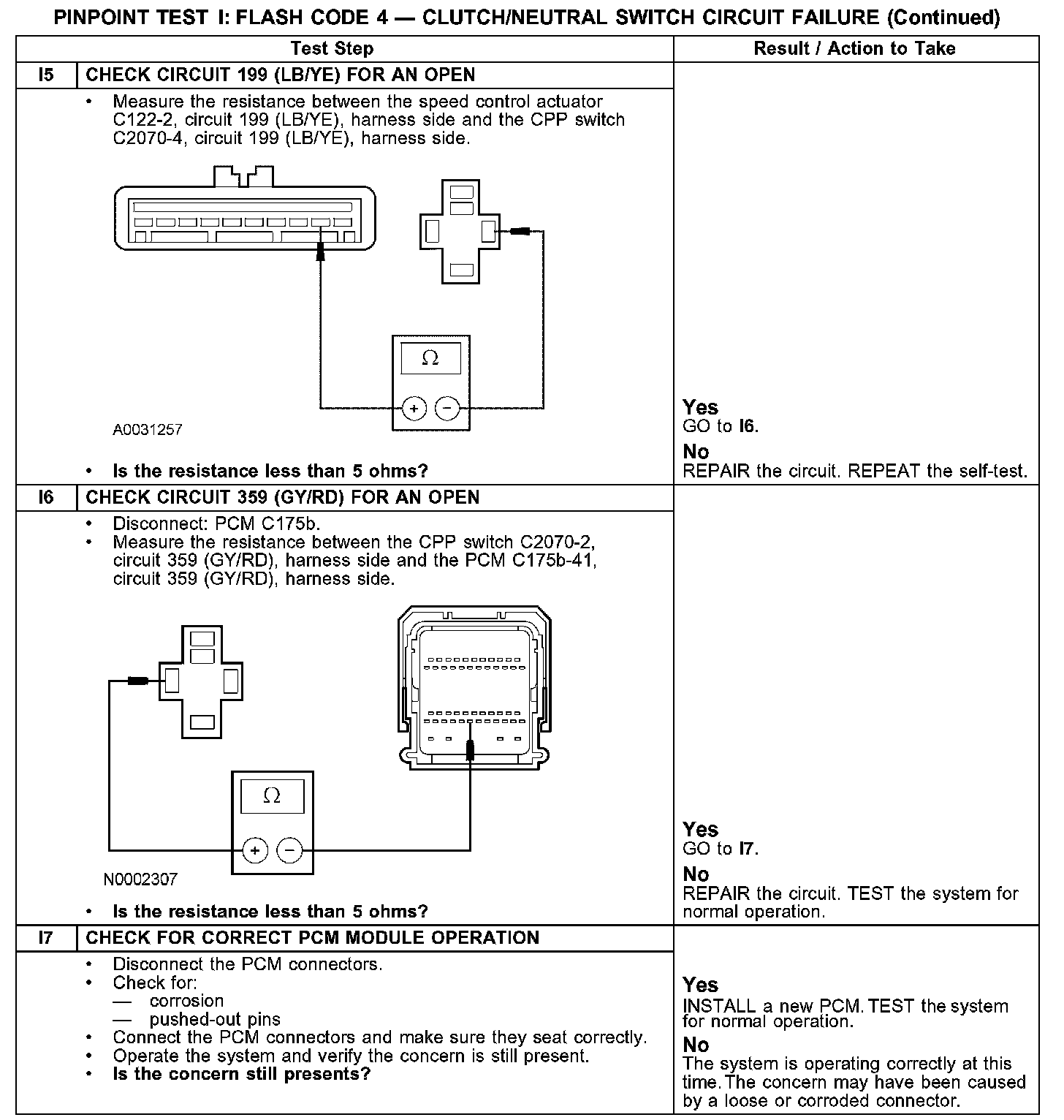

I5-I7:
Normal Operation
When the speed control actuator carries out the self-test, it checks for continuity to ground through circuit 199 (LB/YE). This is accomplished by sending a voltage reference signal to the clutch pedal position (CPP) switch (manual transaxle) or the transmission range (TR) sensor (automatic transaxle).
When the clutch is applied, the signal is routed through circuit 359 (GY/RD) to the powertrain control module (PCM). The PCM provides an internal ground.
When the automatic transaxle is in NEUTRAL, the signal is routed through circuit 57 (BK) to ground.
Possible Causes
- Circuit 57 (BK) open
- Circuit 199 (LB/YE) open
- Circuit 359 (GY/RD) open
- CPP switch
- TR sensor
- Speed control actuator
- PCM
