2006 Mercury Mariner 4WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Test D: The Doors Do Not Lock/Unlock Using The Remote Keyless Entry (RKE) Transmitter
PINPOINT TEST D: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER
Normal Operation
Remote locking and unlocking of the doors is accomplished by the smart junction box (SJB) receiving a command message from the RKE transmitter. The SJB processes the command and provides voltage and ground to the door lock actuators.
All remote transmitters must be present to begin diagnosis of the RKE system.
Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.
Possible Causes
- RKE transmitter battery
- RKE transmitter programming
- RKE transmitter
- aftermarket systems
- high power devices
- TV/radio transmission towers
- SJB

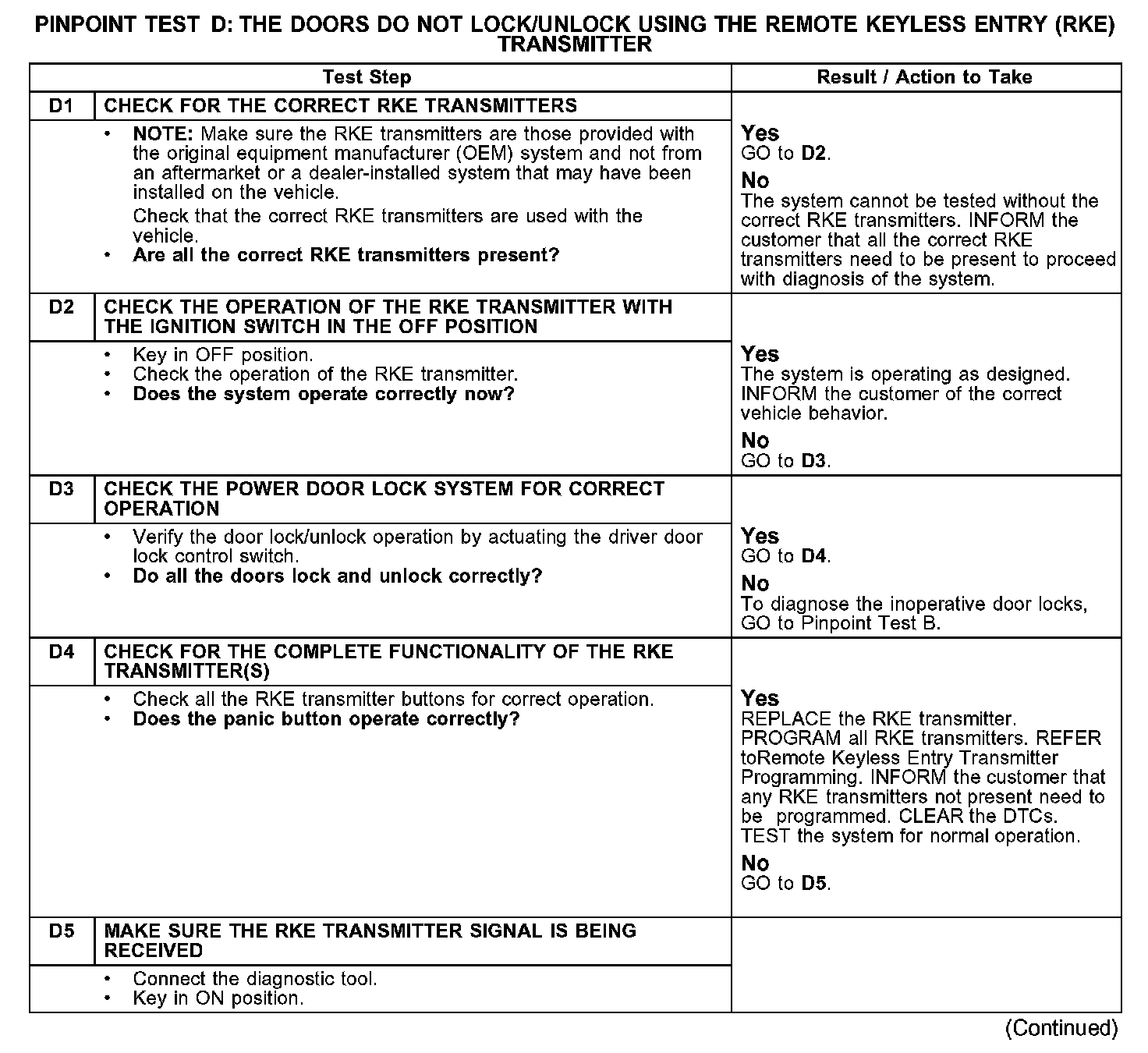

D1-D5:

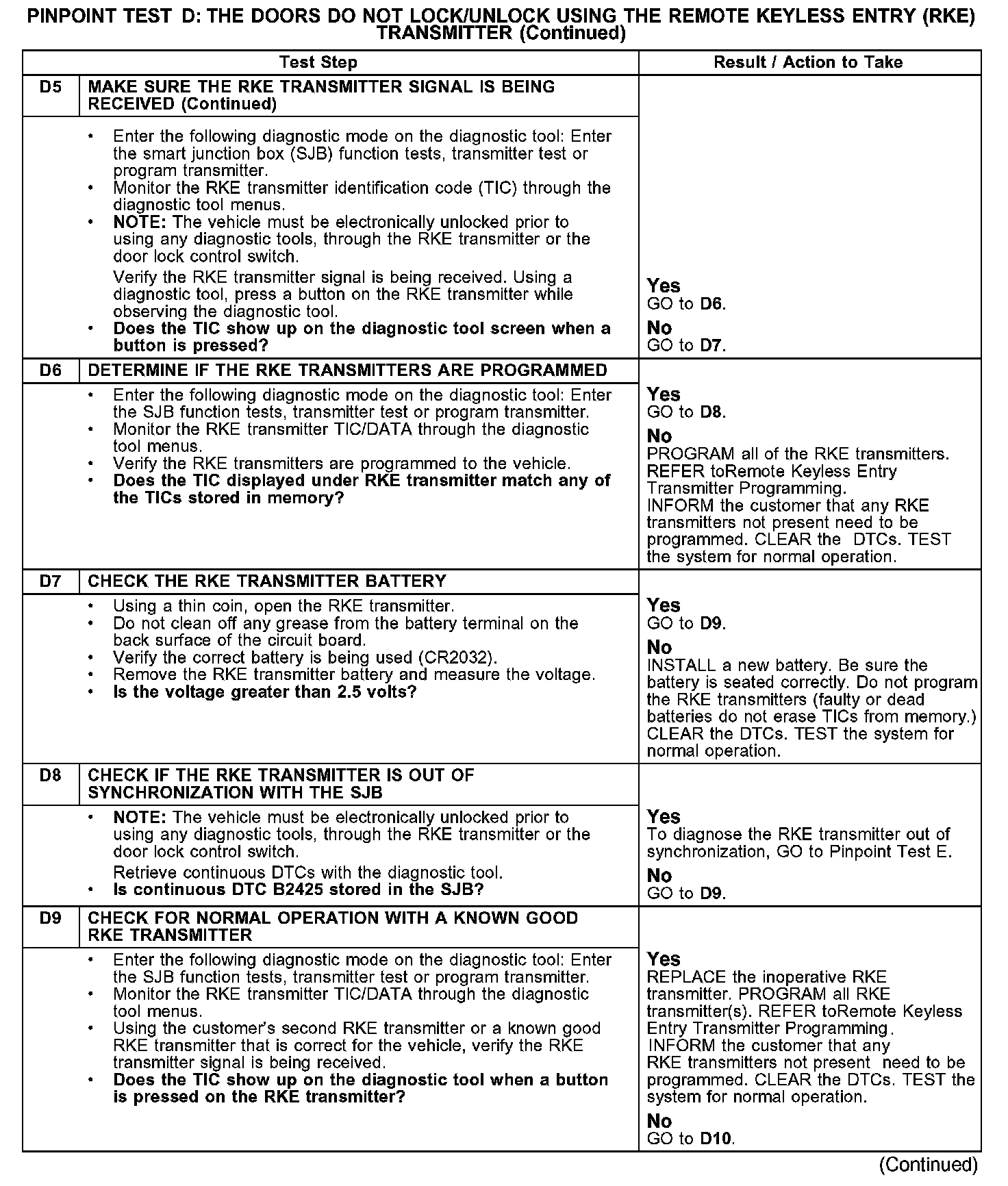

D5-D9:

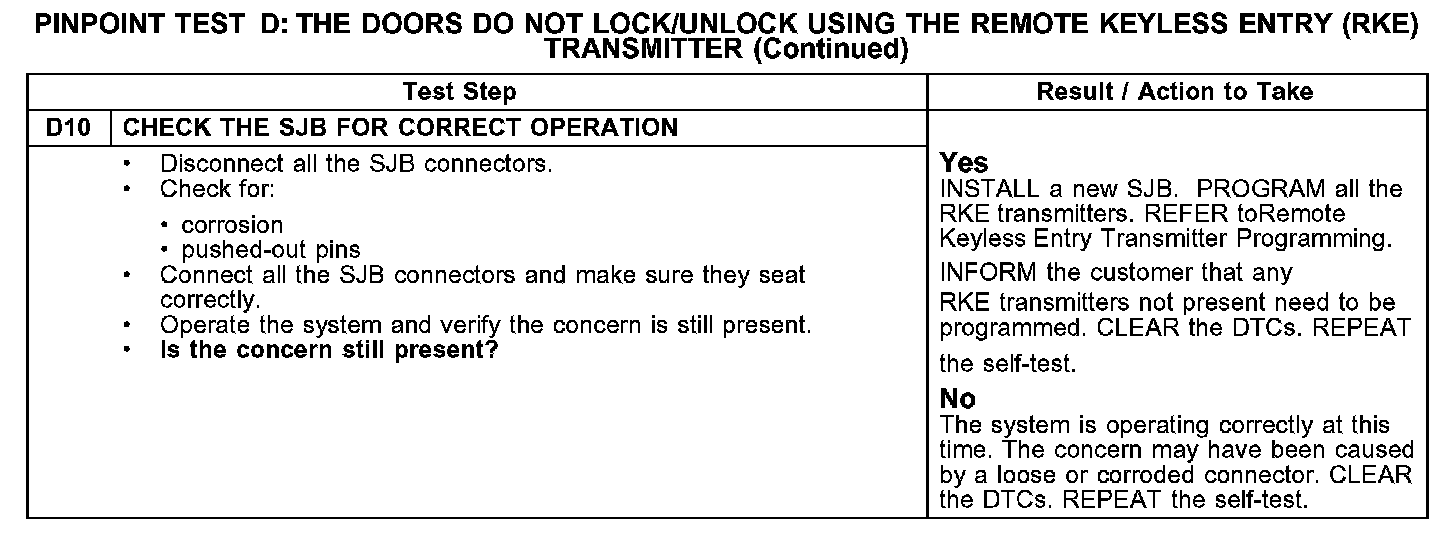

D10:
Normal Operation
Remote locking and unlocking of the doors is accomplished by the smart junction box (SJB) receiving a command message from the RKE transmitter. The SJB processes the command and provides voltage and ground to the door lock actuators.
All remote transmitters must be present to begin diagnosis of the RKE system.
Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.
Possible Causes
- RKE transmitter battery
- RKE transmitter programming
- RKE transmitter
- aftermarket systems
- high power devices
- TV/radio transmission towers
- SJB
