2005 Mercury MontereyFACTORY OEM SERVICE PROCEDURE
Removal and Installation
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the windshield wiper motor and wiper pivot arm. For additional information, refer to WIPERS AND WASHERS .
- Disconnect the spark plug wires from the ignition coil.
- Detach the spark plug wire retainers.

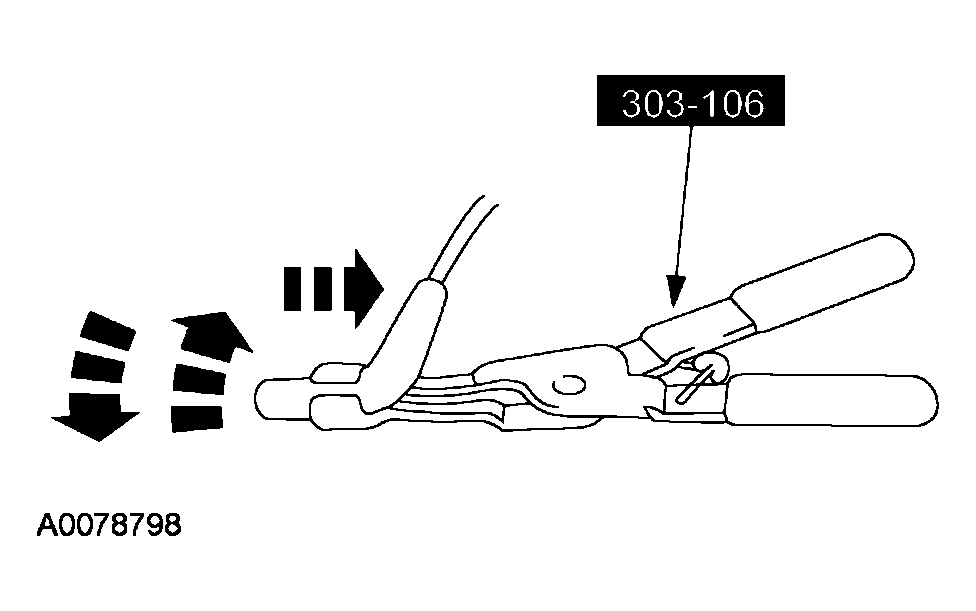

- Using the special tool, remove the spark plug wire from the spark plug using a twisting motion.
CAUTION:
Spark plug wires must be connected to the correct ignition coil terminal. Mark the spark plug wire locations before removing them.
CAUTION:
It is important to twist the spark plug wire boots while pulling along the axis of the spark plug to avoid possible damage to the spark plug wires.
