2005 Mercury Mariner 3.0 1, FWDFACTORY OEM SERVICE PROCEDURE

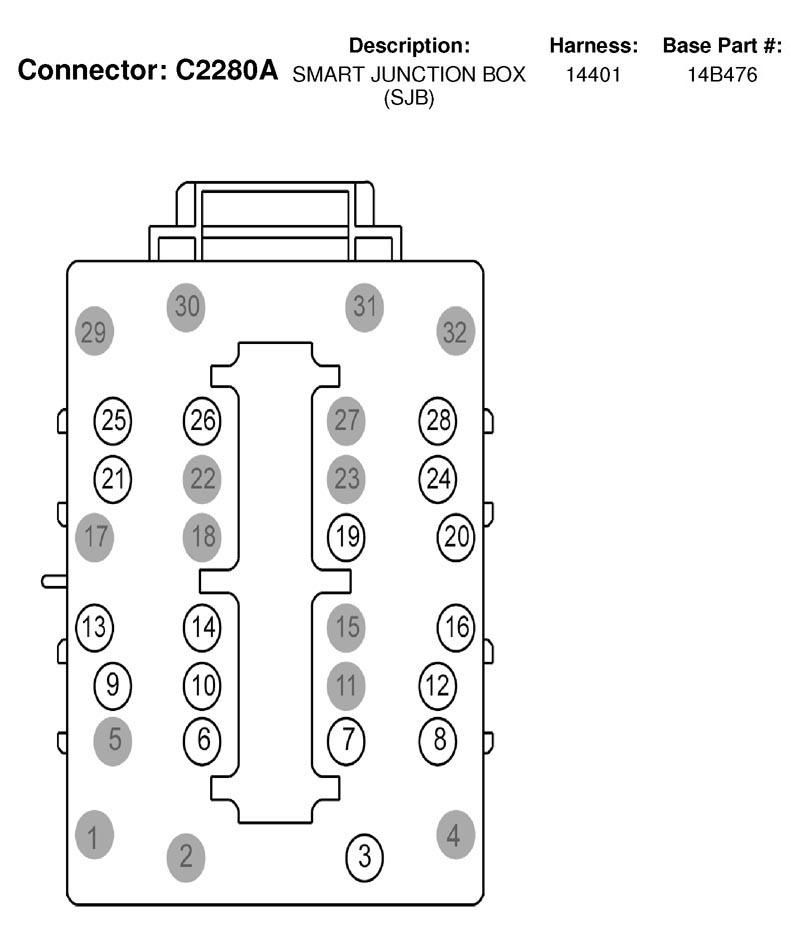

Smart Junction Box (SJB) Connector End View (C2280A)
C2280A CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | not used | |
| 2 | * | * | not used | |
| 3 | 956 (OG-LG) | 18 | Voltage supplied at all times (overload protected) | |
| 4 | * | * | not used | |
| 5 | * | * | not used | |
| 6 | 1715 (RD) | 18 | Voltage supplied at all times (overload protected) | |
| 7 | 1050 (LG-VT) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 8 | 41 (BK-LB) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 9 | 605 (RD) | 20 | Shift lock solenoid control | |
| 10 | 137 (YE-BK) | 20 | Accessory delay relay output | |
| 11 | * | * | not used | |
| 12 | 1002 (BK-PK) | 20 | Voltage in Run or Accessory (overload protected) | |
| 13 | 40 (LB-WH) | 16 | Voltage in Run or Accessory (overload protected) | |
| 14 | 6 (YE-LG) | 20 | Horn relay control | |
| 15 | * | * | not used | |
| 16 | 297 (BK-LG) | 18 | Voltage in Run or Accessory (overload protected) | |
| 17 | * | * | not used | |
| 18 | * | * | not used | |
| 19 | 3049 (BK-LG) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 20 | 1654 (OG-YE) | 20 | Voltage supplied in Start and Run (overload protected) | Early production |
| 20 | 937 (RD-WH) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 21 | 570 (BK-WH) | 18 | Ground | |
| 22 | * | * | not used | |
| 23 | * | * | not used | |
| 24 | 640 (RD-YE) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 25 | 1847 (WH-OG) | 20 | Medium speed CAN bus + | |
| 26 | 1848 (PK-OG) | 20 Medium speed CAN bus - | ||
| 27 | * | * | not used | |
| 28 | 601 (LB-PK) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 29 | * | * | not used | |
| 30 | * | * | not used | |
| 31 | * | * | not used | |
| 32 | * | * | not used |
