2005 Mercury Mariner 3.0 1, FWDFACTORY OEM SERVICE PROCEDURE

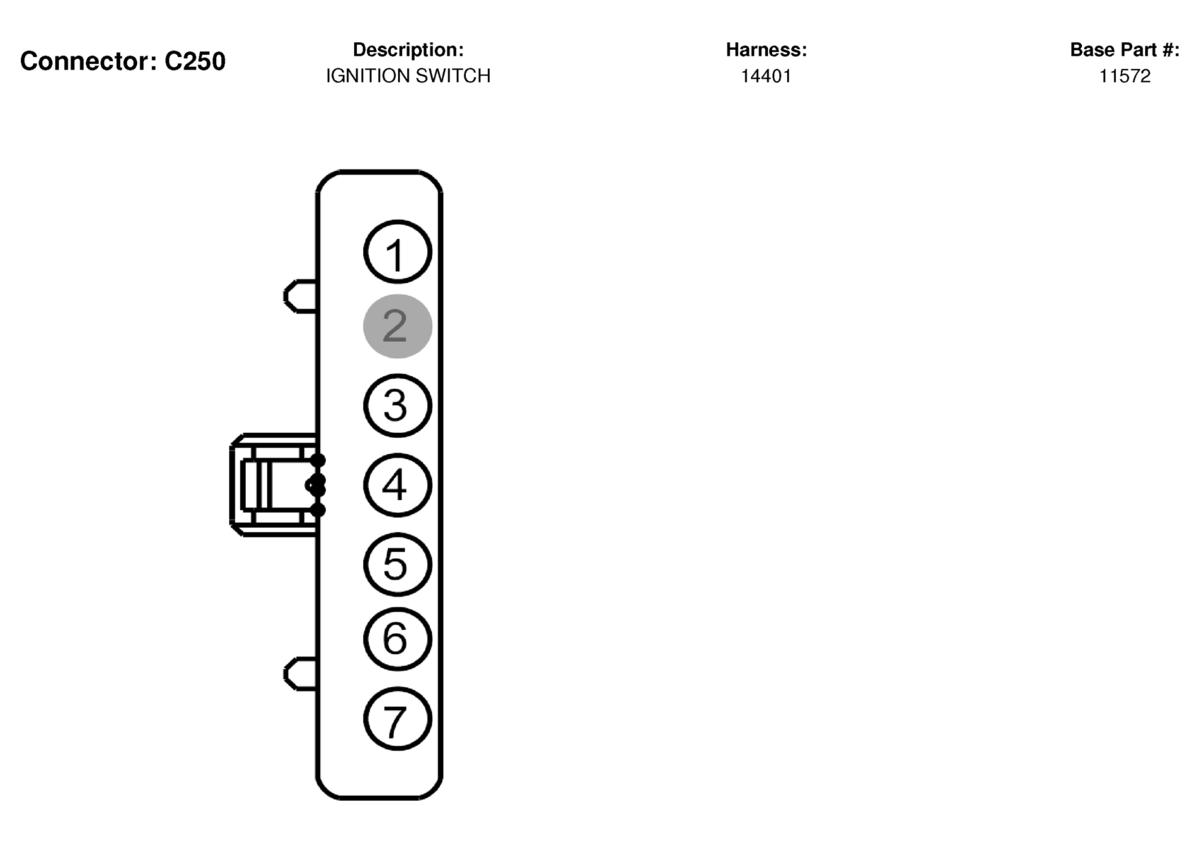

Ignition Switch Connector End View (C250)
C250 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 1050 (LG-VT) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 2 | * | * | not used | |
| 3 | 1151 (DG-OG) | 20 | Ignition key lock solenoid control | |
| 4 | 1715 (RD) | 18 | Voltage supplied at all times (overload protected) | |
| 5 | 158 (BK-PK) | 18 | Key in ignition switch signal | |
| 6 | 297 (BK-LG) | 18 | Voltage in Run or Accessory (overload protected) | |
| 7 | 306 (TN-LB) | 20 | Voltage supplied in Start (overload protected) |
