2005 Mercury Mariner 3.0 1, FWDFACTORY OEM SERVICE PROCEDURE

Data Link Connector (DLC) Connector End View (C251)

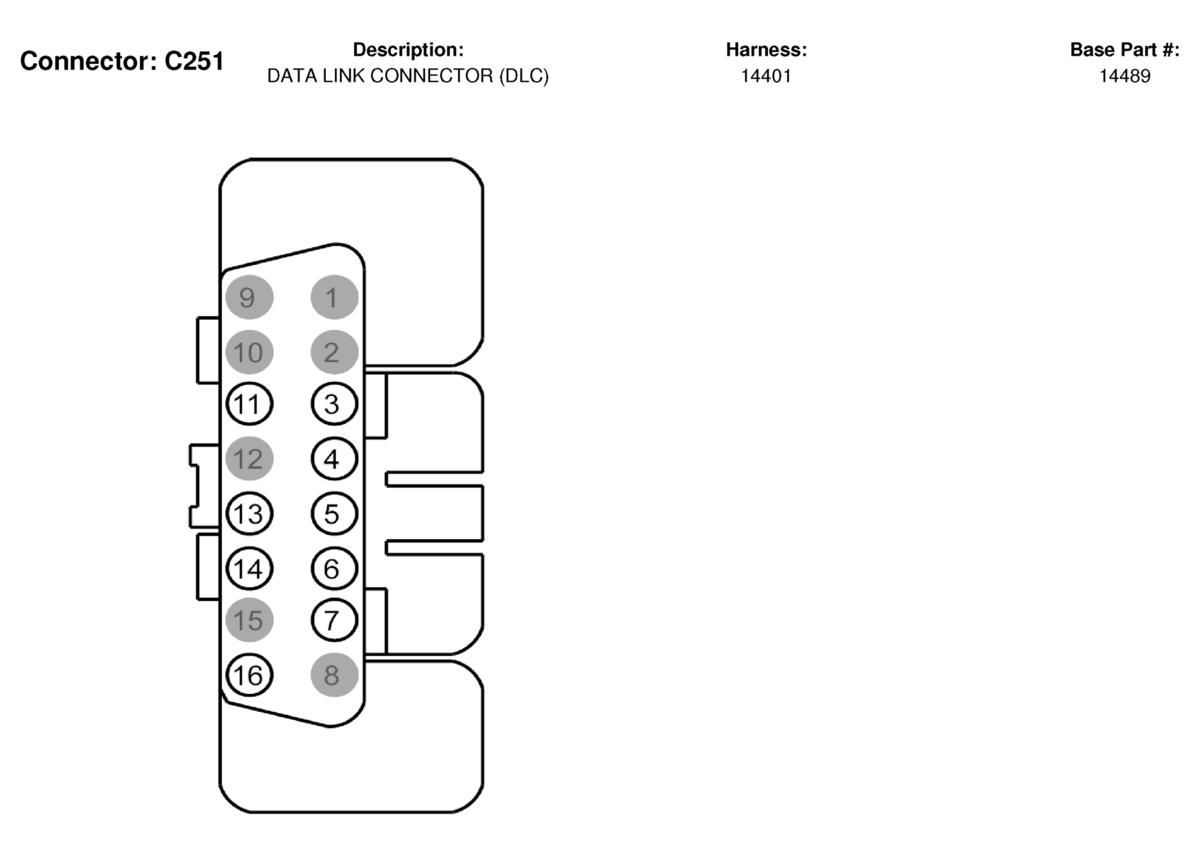

Fig 1: Data Link Connector (DLC) Connector End View (C251)

Courtesy of FORD MOTOR CO.

C251 CONNECTOR SPECIFICATION

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	1847 (WH-OG)	20	Medium speed CAN bus +
4	57 (BK)	20	Ground
5	570 (BK-WH)	20	Ground
6	1908 (WH)	20	High speed CAN bus +
7	70 (LB-WH)	20	ISO Bus
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	1848 (PK-OG)	20	Medium speed CAN bus -
12	*	*	not used
13	107 (VT)	20	Flash/EEPROM power supply
14	1909 (BK)	20	High speed CAN bus -
15	*	*	not used
16	956 (OG-LG)	20	Voltage supplied at all times (overload protected)
