2005 Mercury Mariner 3.0 1, FWDFACTORY OEM SERVICE PROCEDURE

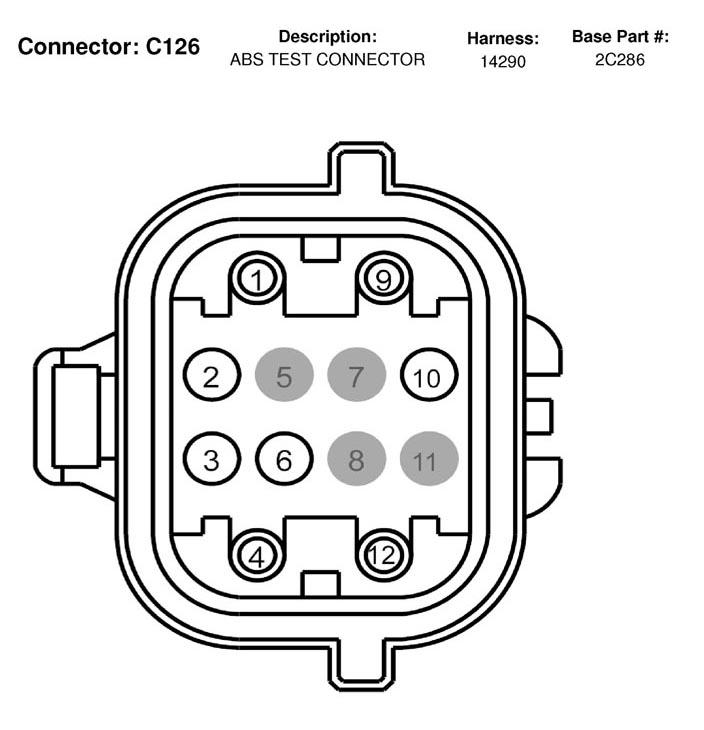

ABS Test Connector End View (C126)
C126 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 483 (RD) | 14 | Voltage supplied at all times (overload protected) | Female |
| 1 | * | * | not used | Male |
| 2 | 1909 (BK) | 20 | High speed CAN bus - | Female |
| 2 | * | * | not used | Male |
| 3 | 1908 (WH) | 20 | High speed CAN bus + | Female |
| 3 | * | * | not used | Male |
| 4 | 570 (BK-WH) | 12 | Ground | Female |
| 4 | * | * | not used | Male |
| 5 | * | * | not used | |
| 6 | 601 (LB-PK) | 20 | Voltage supplied in Start and Run (overload protected) | Female |
| 6 | 601 (LB-PK) | 20 | Voltage supplied in Start and Run (overload protected) | Male |
| 7 | * | * | not used | |
| 8 | * | * | not used | |
| 9 | 534 (YE-LG) | 10 | Voltage supplied at all times (overload protected) | Female |
| 9 | * | * | not used Male | |
| 10 | 677 (LB) | 20 | Voltage supplied in Start and Run (overload protected) | Female |
| 10 | 601 (LB-PK) | 20 | Voltage supplied in Start and Run (overload protected) | Male |
| 11 | * | * | not used | |
| 12 | 570 (BK-WH) | 12 | Ground | Female |
| 12 | * | * | not used | Male |
