2005 Mercury Mariner 3.0 1, FWDFACTORY OEM SERVICE PROCEDURE

Occupant Classification Sensor (OCS) Module Connector End View (C3159)

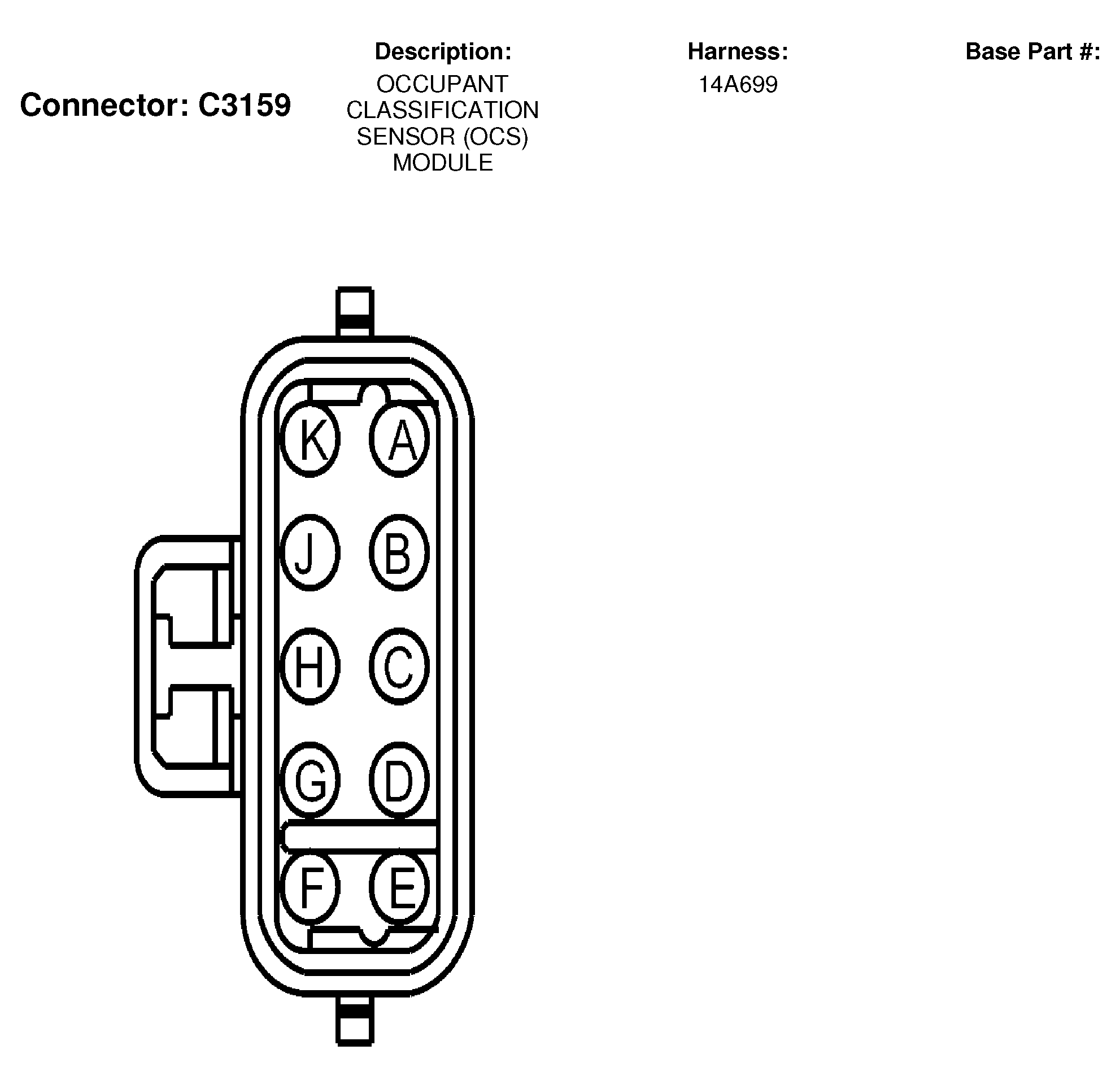

Fig 1: Occupant Classification Sensor (OCS) Module Connector End View (C3159)
G03993419Courtesy of FORD MOTOR CO.
C3159 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
A 2089 (OG-BK) 20 Seat belt tensioner, passenger seat, signal
B 2088 (TN-RD) 20 Seat belt tensioner, passenger seat, feed
C 1203 (BK-LB) 20 Ground
D 1203 (BK-LB) 20 Ground
E 1918 (BR-WH) 20 High speed CAN bus +
F 1919 (PK-OG) 20 High speed CAN bus -
G 937 (RD-WH) 20 Voltage supplied in Start and Run (overload protected)
H 1569 (GY-LB) 20 Seat pressure sensor, signal return
J 1568 (RD-WH) 20 Seat pressure sensor, input
K 1570 (TN-BK) 20 Seat pressure sensor, output
