2005 Mercury Mariner 3.0 1, FWDFACTORY OEM SERVICE PROCEDURE

Message Center Switch Connector End View (C253A)

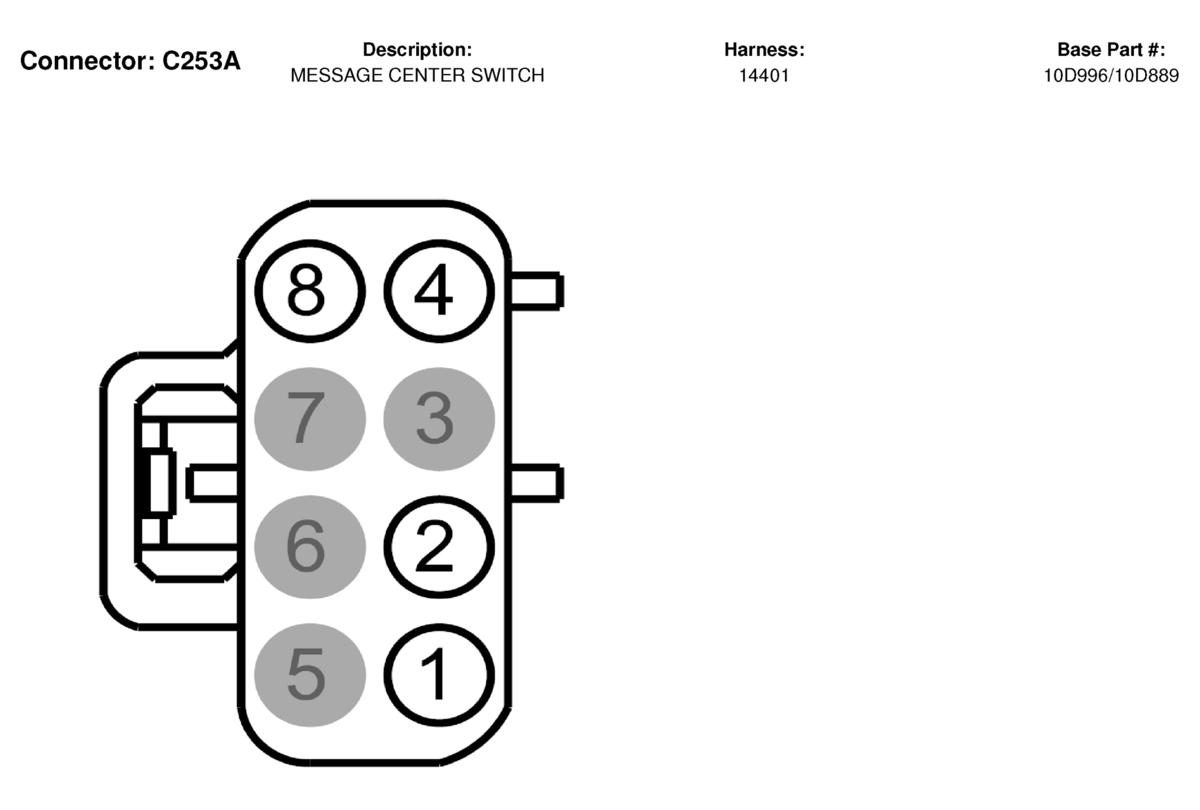

Fig 1: Message Center Switch Connector End View (C253A)

Courtesy of FORD MOTOR CO.

C253A CONNECTOR SPECIFICATION

Pin	Circuit	Gauge	Circuit Function
1	570 (BK-WH)	20	Ground
2	1411 (GY-OG)	20	Message Center Information 1 signal
3	*	*	not used
4	57 (BK)	20	Ground
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	19 (LB-RD)	20	Instrument illumination feed
