2004 Mercury MontereyFACTORY OEM SERVICE PROCEDURE

Restraint Control Module (RCM) C310a

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

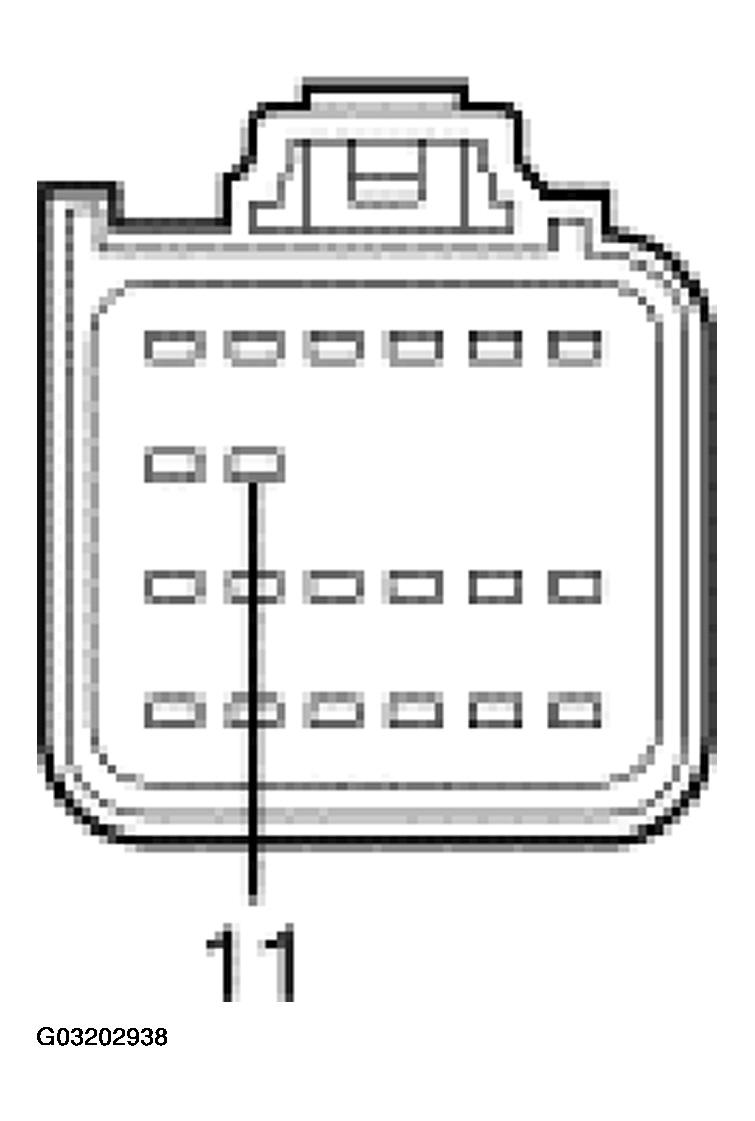

Fig 1: Identifying Restraint Control Module (RCM) C310A Connector Pins

Courtesy of FORD MOTOR CO.

RESTRAINT CONTROL MODULE (RCM) C310A PINS DESCRIPTION

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
11	4-EE1 (GY/RD) ISO 9141 communication circuit.	Less than 5 ohms between the DLC and the RCM. Greater than 10,000 ohms to ground with all network modules disconnected.
