2004 Mercury MontereyFACTORY OEM SERVICE PROCEDURE
Navigation System Module C4209
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

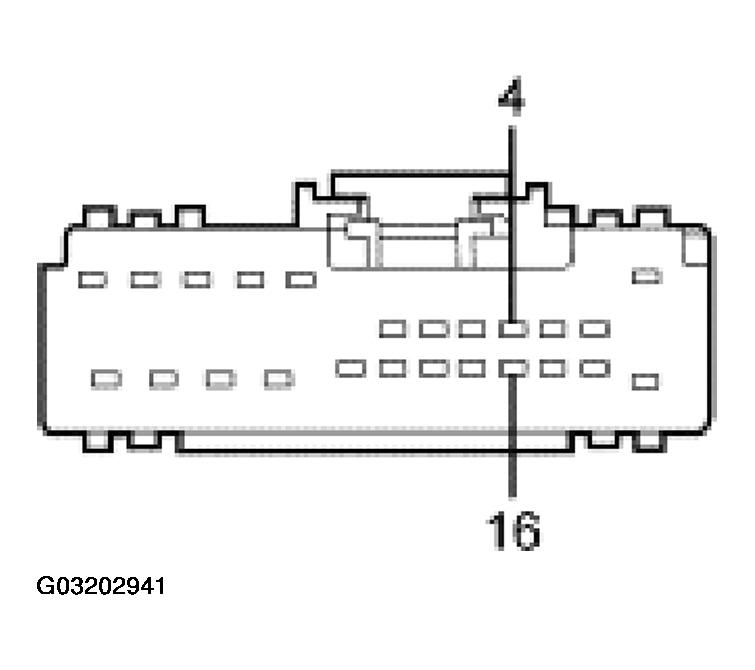

NAVIGATION SYSTEM MODULE C4209 PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 4 | 4-EG17 (GY/BK) SCP communication circuit | Less than 5 ohms between the navigation system module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
| 16 | 5-EG17 (BU/YE) SCP communication circuit | Less than 5 ohms between the navigation system module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
