Audio Control Module (ACM) C29c
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

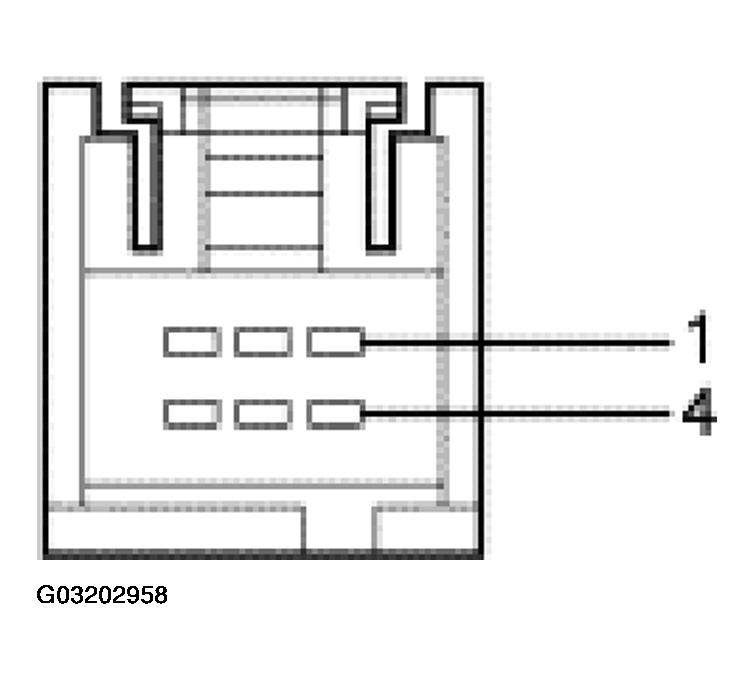

AUDIO CONTROL MODULE (ACM) C29C PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 4-EG10 (GY/BK) standard corporate protocol (SCP) | Less than 5 ohms between the audio unit and data link connector. Greater than 10,000 ohms between the audio unit and ground. |
| 4 | 5-EG10 (BU/YE) standard corporate protocol (SCP) | Less than 5 ohms between the audio unit and data link connector. Greater than 10,000 ohms between the audio unit and ground. |
