2002 Mercury Villager BaseFACTORY OEM SERVICE PROCEDURE

Transmission Control Module (TCM): Removal

Disconnect the battery ground cable.
Disconnect the module electrical connectors.
1. Disconnect the smart entry control/timer (SEC) timer module connectors.
2. Disconnect the TCM connectors.

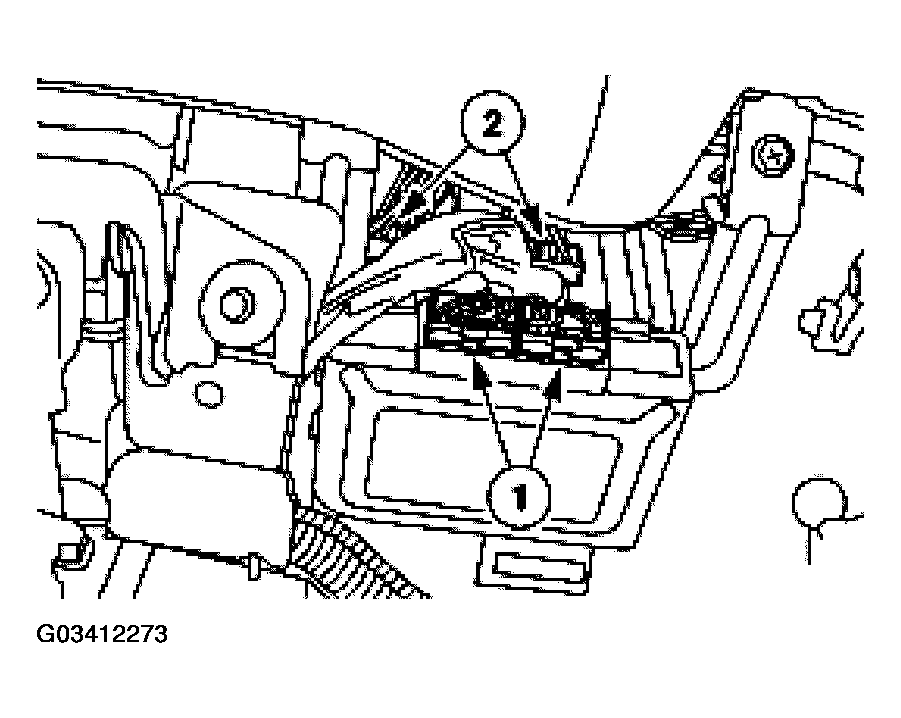

  Fig 1: Disconnecting TCM Connectors
  Courtesy of FORD MOTOR CO.
Remove the TCM bracket bolts.

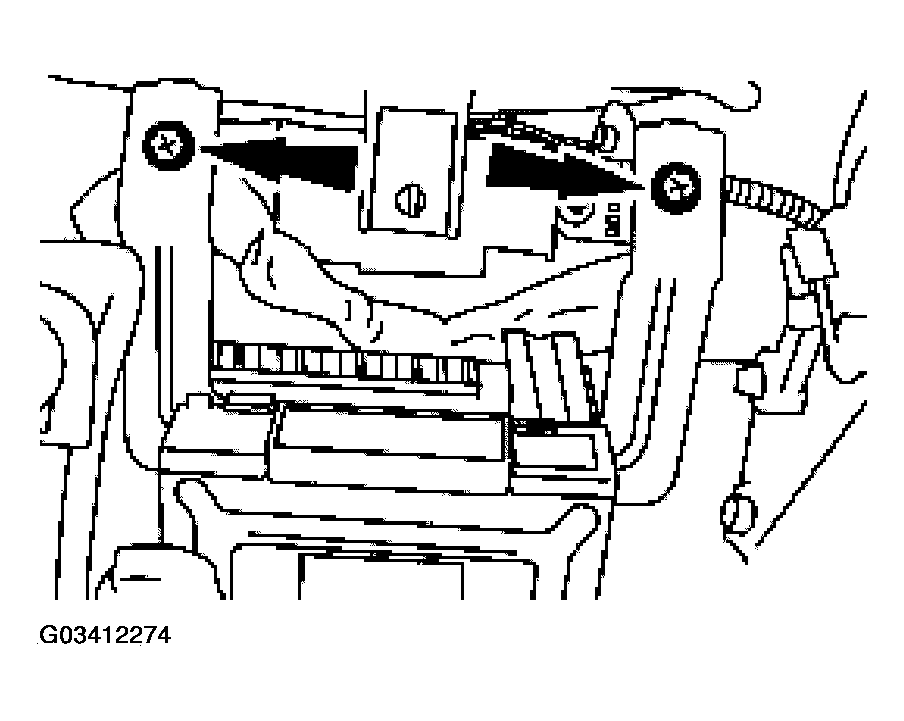

Fig 2: Removing TCM Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove the TCM/SEC Timer module assembly.
- Disconnect the harness clip.

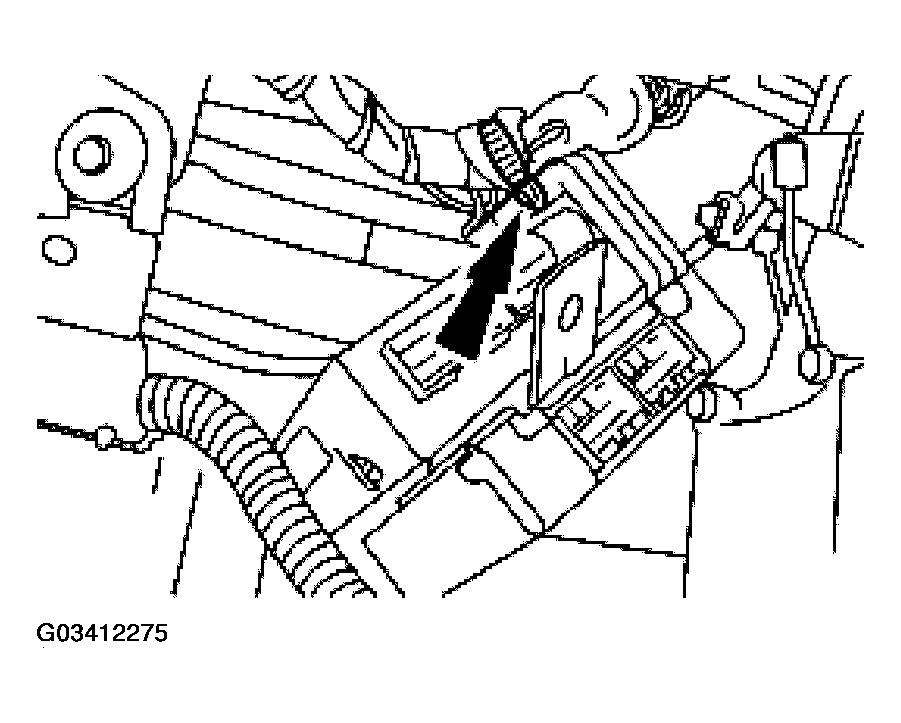

  Fig 3: Disconnecting Harness Clip
  Courtesy of FORD MOTOR CO.
Remove the SEC timer module from the TCM.

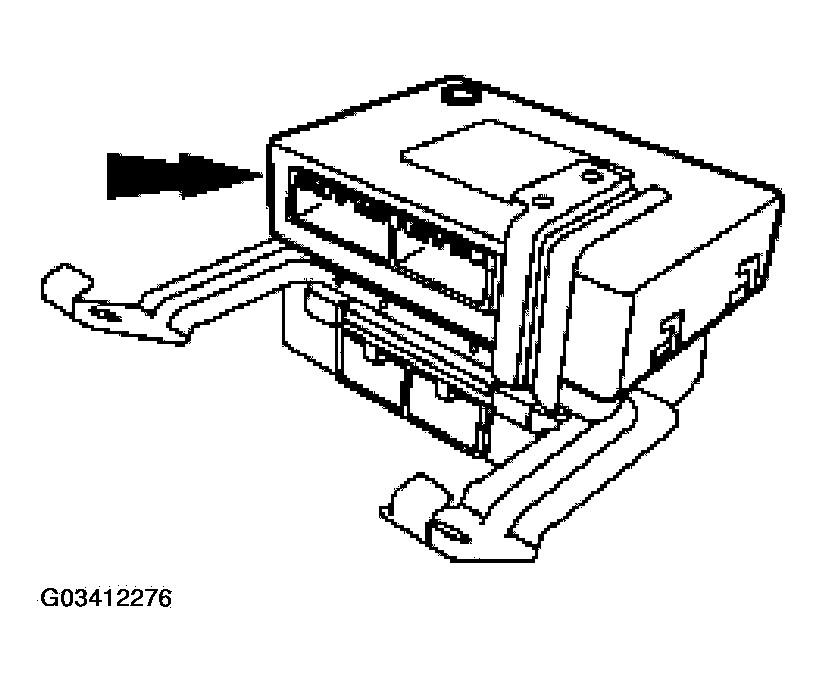

Fig 4: Removing SEC Timer Module From TCM
Courtesy of FORD MOTOR CO.
