2002 Mercury Villager BaseFACTORY OEM SERVICE PROCEDURE
Pump Assembly: Assembly

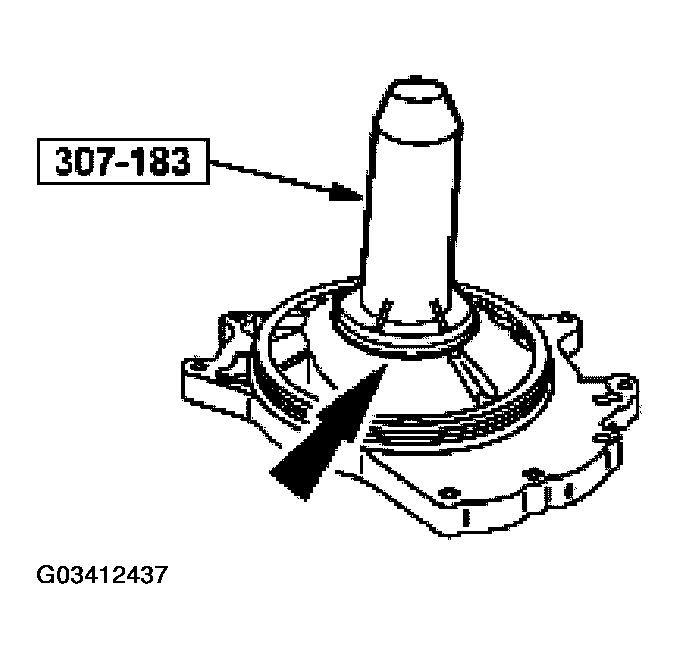

- Using the special tool, install the front oil pump seal.

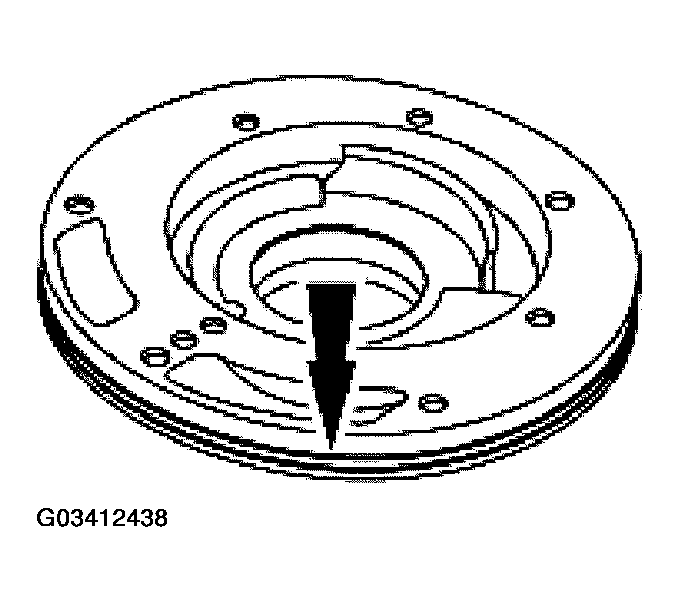

- Install the oil pump housing O-ring.
- Lubricate the O-ring with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.
- Fill the oil pump housing with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON® to prime the pump.
- Install the oil pump cover.

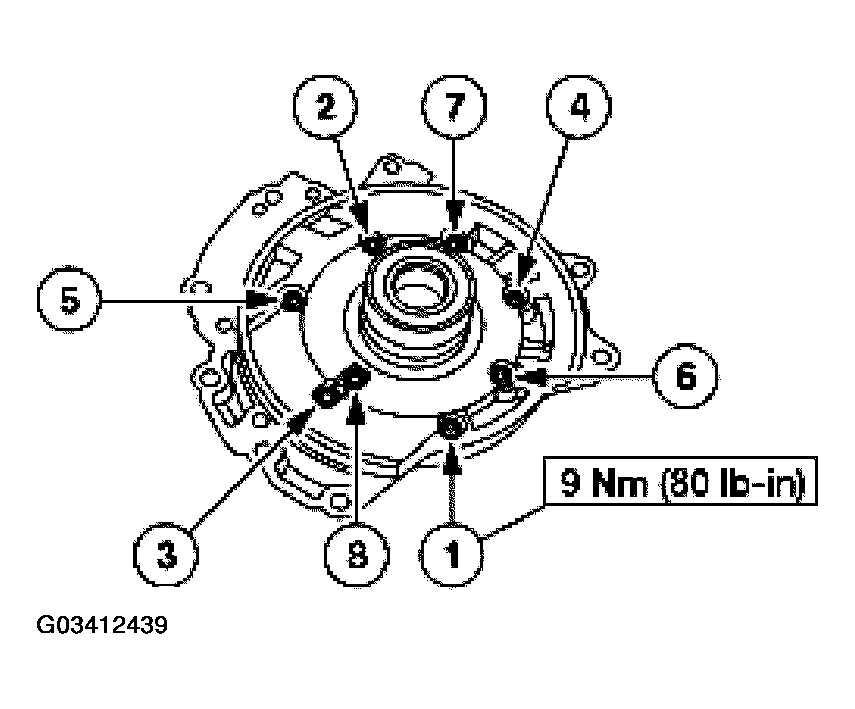

- Tighten the bolts in the indicated sequence.
CAUTION:
Do not allow the splines of the oil pump to damage the oil pump cover seal. Wrapping of the splines may be necessary.
