2002 Mercury Villager BaseFACTORY OEM SERVICE PROCEDURE
Sensor -Rear: Removal
- Disconnect the battery ground cable.
- Raise and support the vehicle. .

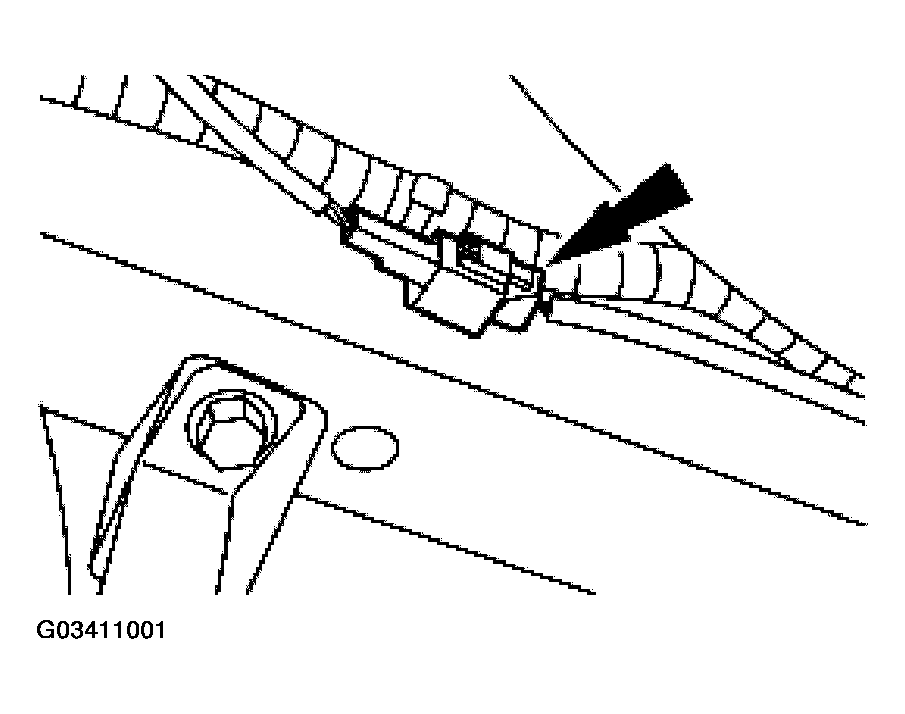

- Disconnect the anti-lock brake sensor electrical connector.

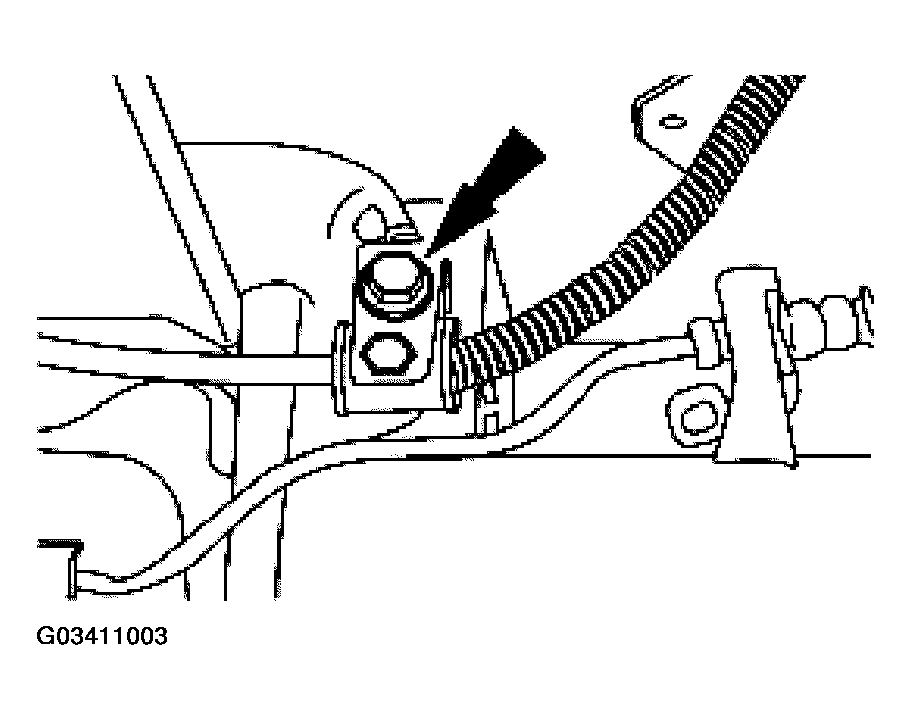

- Remove the anti-lock brake sensor cable upper bracket bolt.

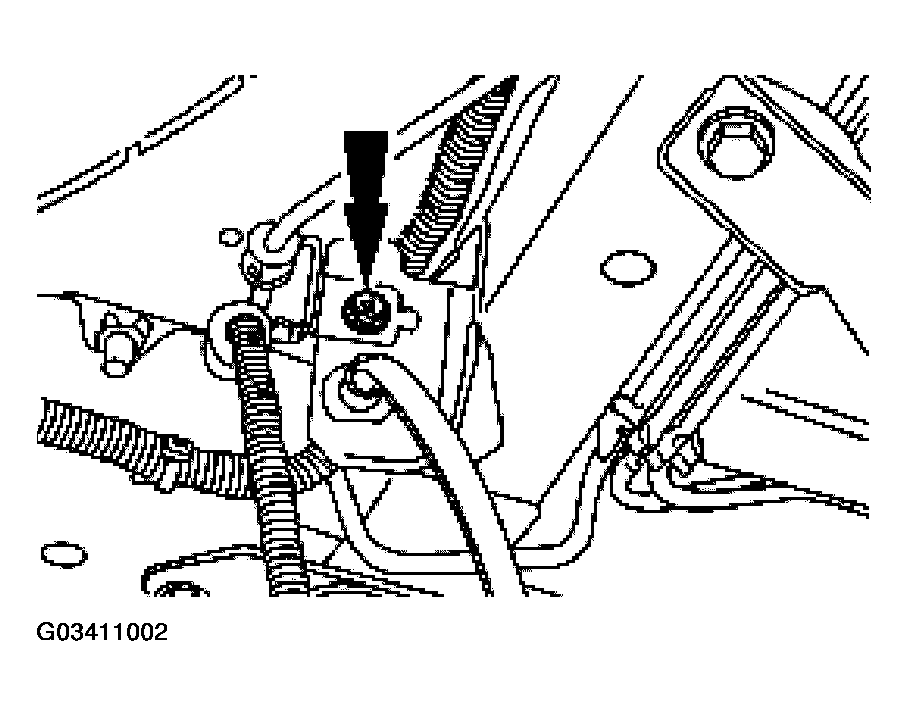

- Remove the anti-lock brake sensor cable lower bracket bolt.

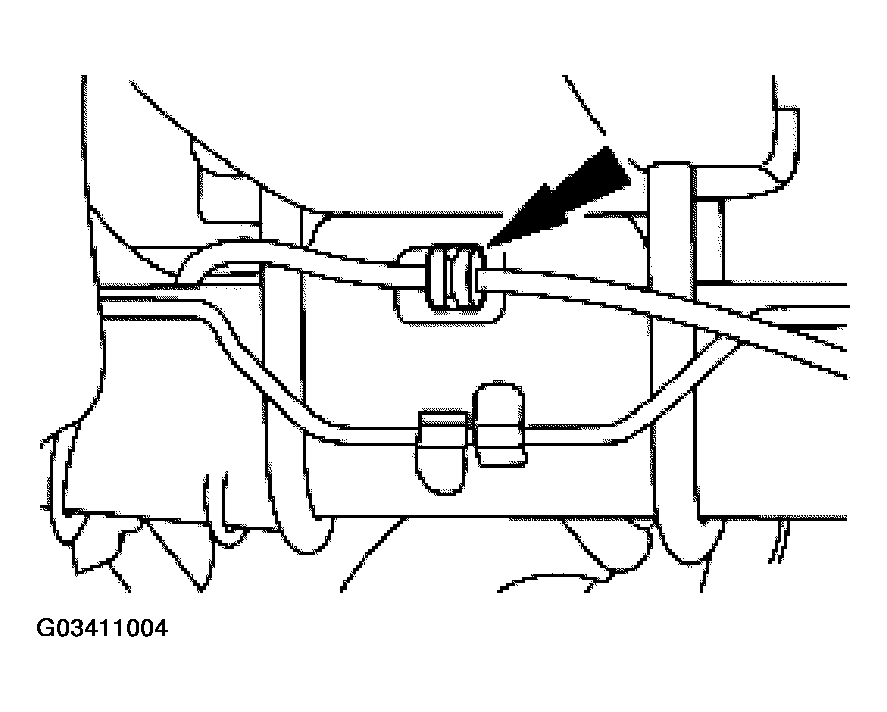

- Remove the anti-lock brake sensor cable bushing from the axle housing bracket.
- Remove the anti-lock brake sensor.

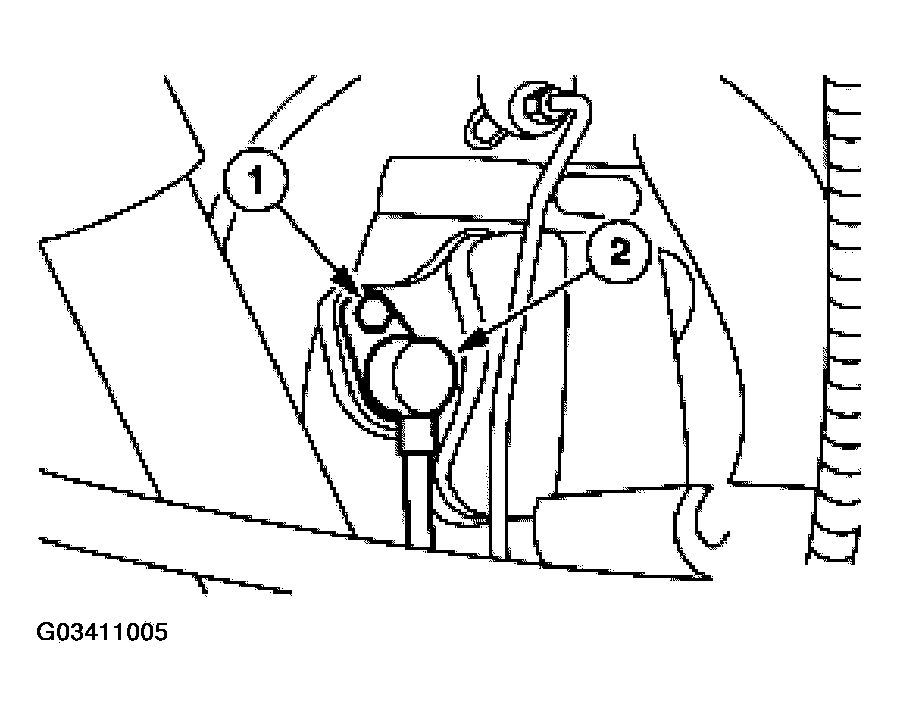

- Remove the bolt.
- Remove the anti-lock brake sensor.
