Removal And Installation: Column: Installation

Vehicles with console shift

1. Position the steering column and connect the shift lock actuator.
   Fig 1: Connecting Shift Interlock Actuator

   Courtesy of FORD MOTOR CO.

   Vehicles with column shift

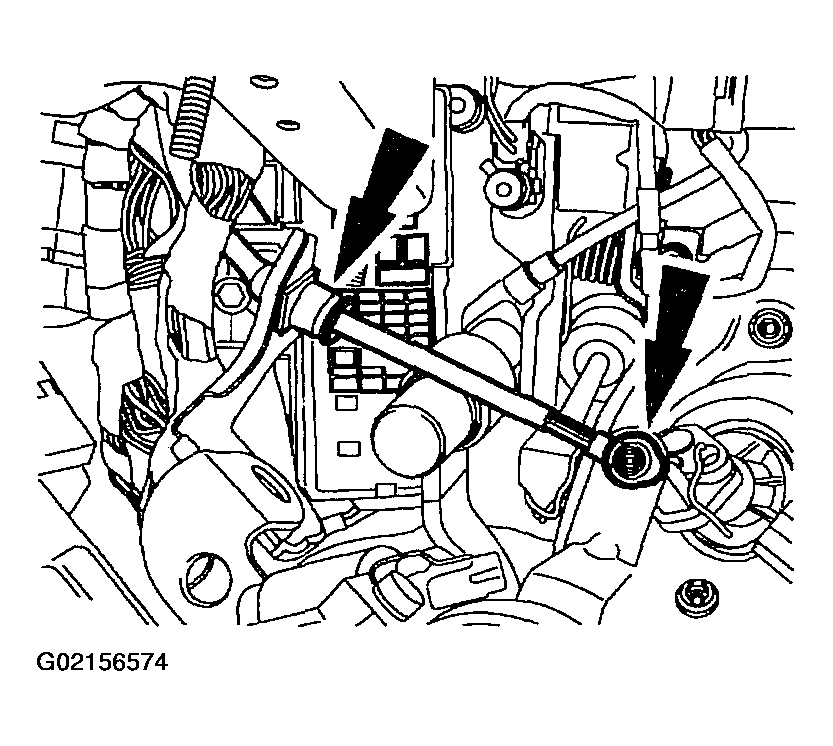

2. Position the steering column and connect the shift cable.
   Fig 2: Connecting Shift Cable

   Courtesy of FORD MOTOR CO.
3. Connect the brake shift interlock electrical connector.

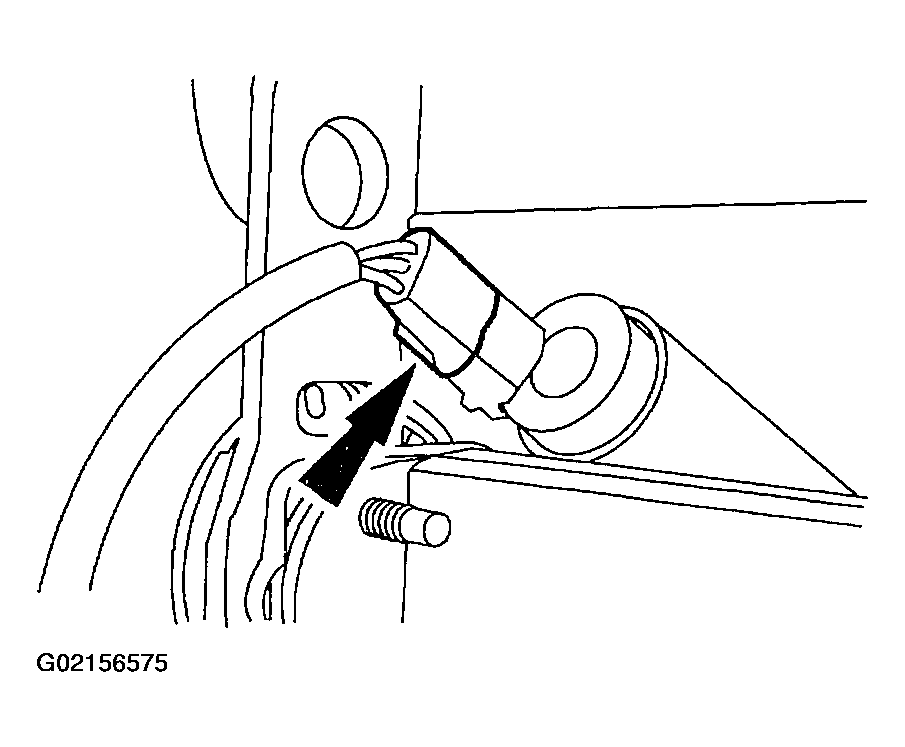

   Fig 3: Connecting Brake Shift Interlock Electrical Connector

   Courtesy of FORD MOTOR CO.

   All Vehicles

4. Position the steering column and install the four nuts.

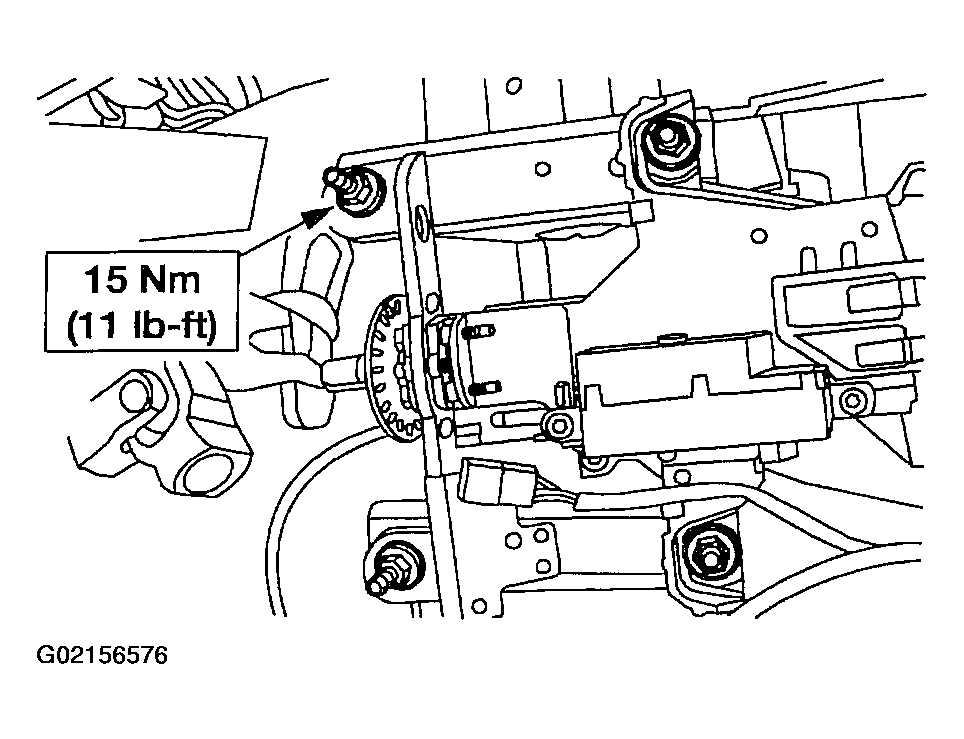

   Fig 4: Installing Steering Column Nuts

   Courtesy of FORD MOTOR CO.

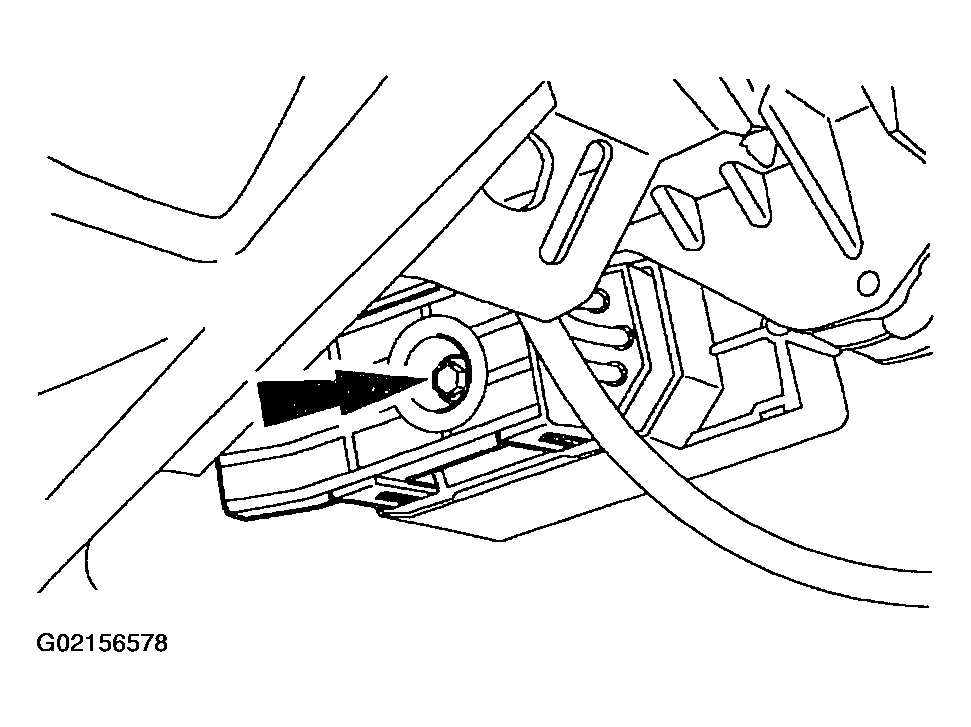

5. Connect the steering column coupling and install the bolt.

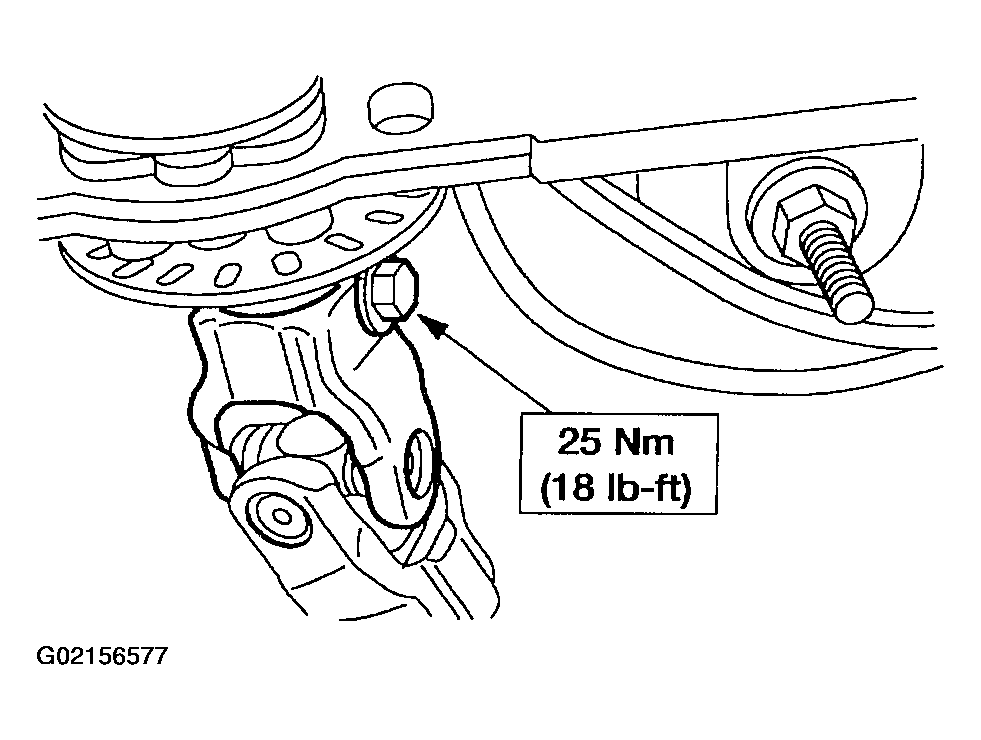

   Fig 5: Installing Steering Column Shaft Bolt

   Courtesy of FORD MOTOR CO.
6. Connect the ignition switch electrical connector.
   Fig 6: Connecting Ignition Switch Electrical Connector

   Courtesy of FORD MOTOR CO.

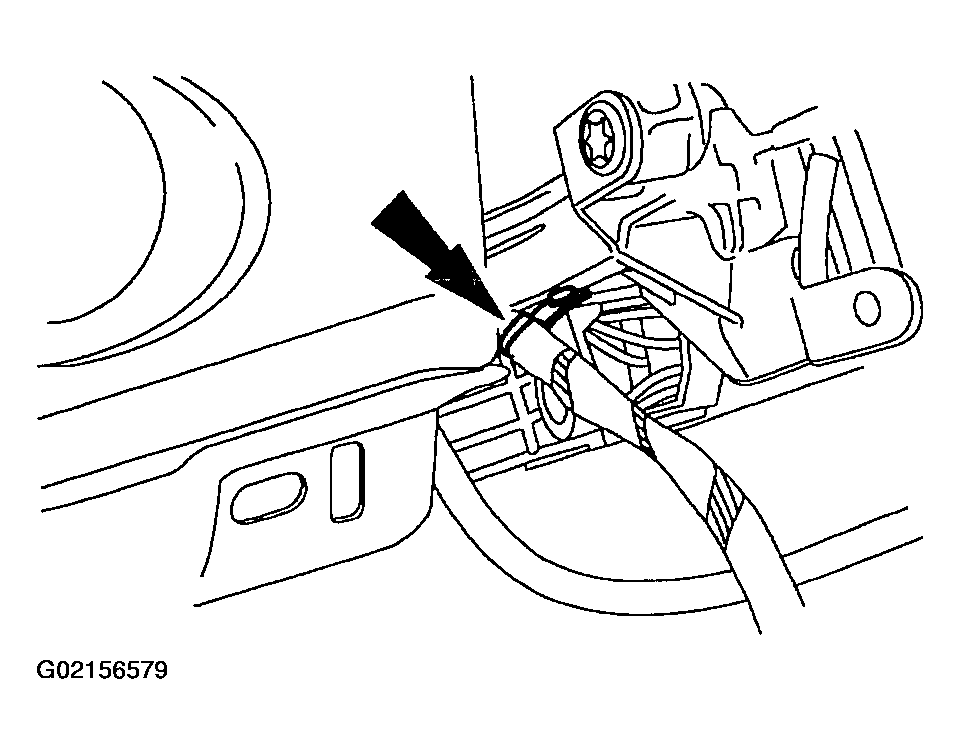

7. Attach the wiring routing pin to the steering column.

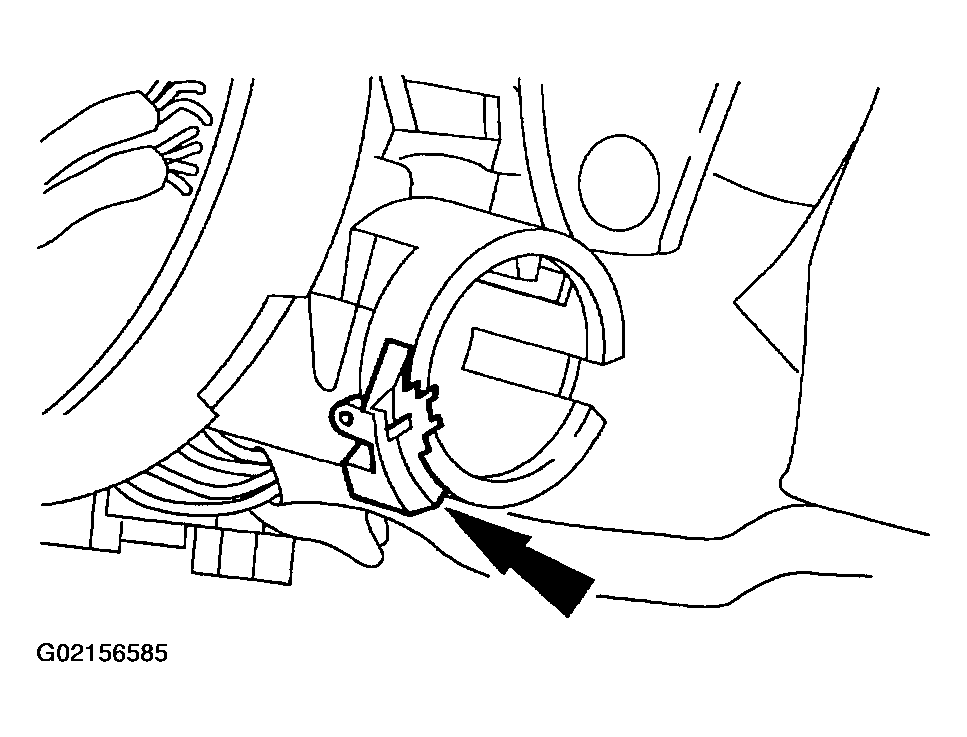

   Fig 7: Attaching Wiring Routing Pin To Steering Column

   Courtesy of FORD MOTOR CO.
8. Position the wiring.
   1. Connect the electrical connector.
   2. Attach the wiring routing pin to the steering column.

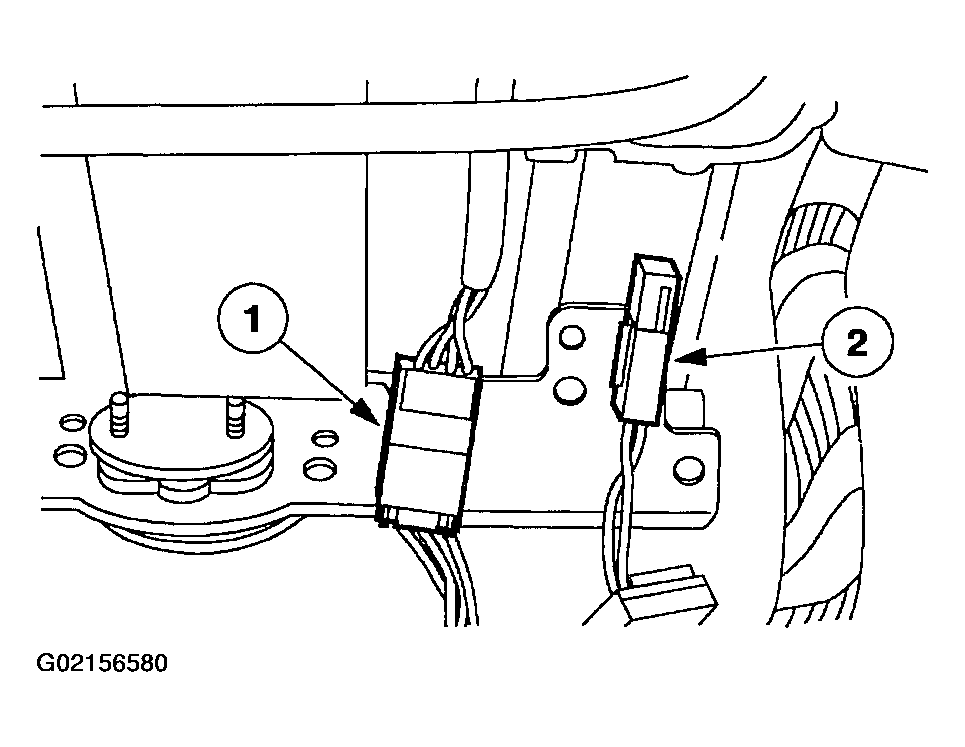

   Fig 8: Connecting Electrical Connectors

   Courtesy of FORD MOTOR CO.

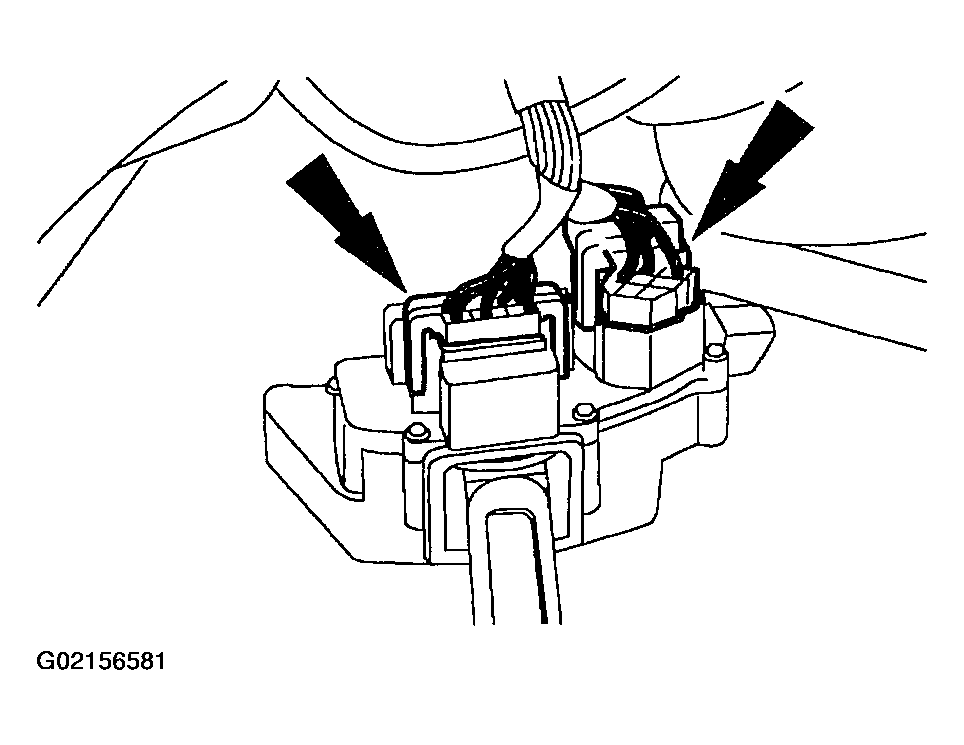

9. Connect the electrical connectors.
   Fig 9: Connecting Multi-Function Switch Connectors

   Courtesy of FORD MOTOR CO.
10. Position the multi-function switch and install the screws.

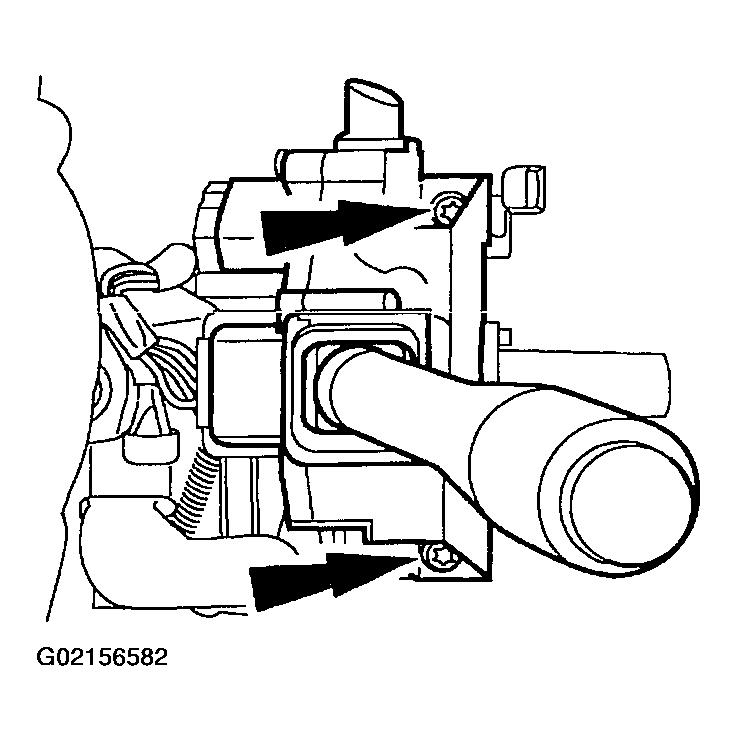

    Fig 10: Installing Multi-Function Switch

    Courtesy of FORD MOTOR CO.

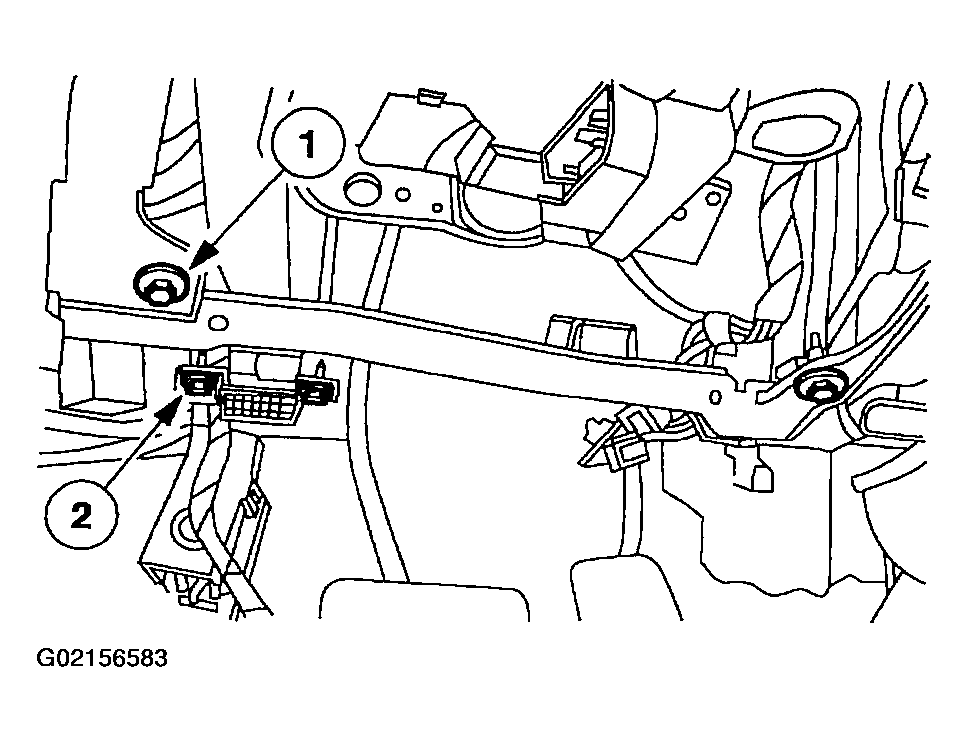

11. Install the reinforcement.
    1. Position the reinforcement and install the bolts.
    2. Position the data link connector and install the bolts.
    Fig 11: Installing Reinforcement.

    Courtesy of FORD MOTOR CO.
12. Install the clockspring. Refer to CLOCKSPRING .

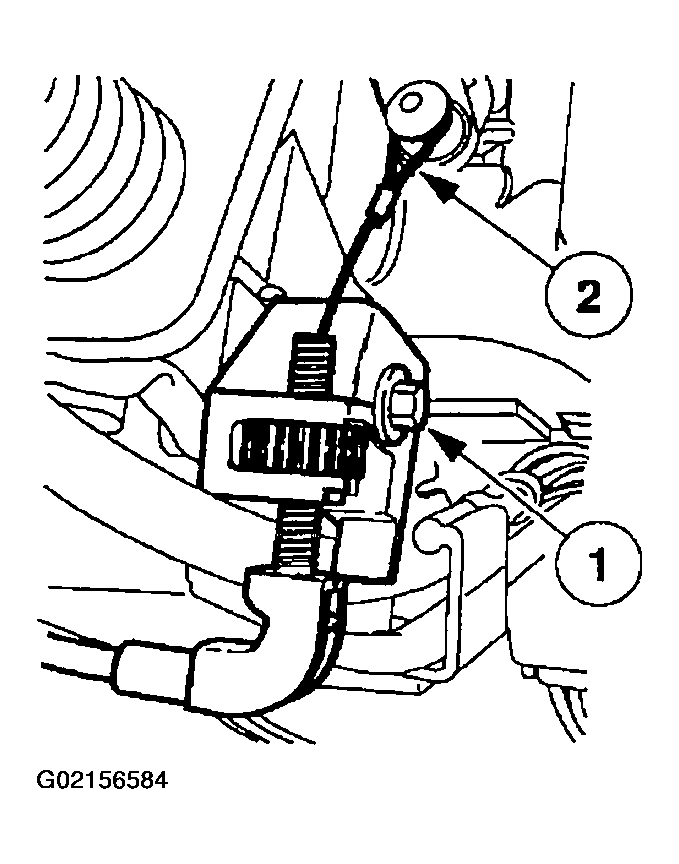

13. If equipped with a column shift, reposition the shift indicator tube.
    1. Reposition the shift indicator tube and install the screw.
    2. Attach the shift indicator cable.
    Fig 12: Installing Shift Indicator Tube

    Courtesy of FORD MOTOR CO.
14. Install the key-in-ignition warning indicator switch.
    Fig 13: Installing Key-In-Ignition Warning Indicator Switch

    Courtesy of FORD MOTOR CO.

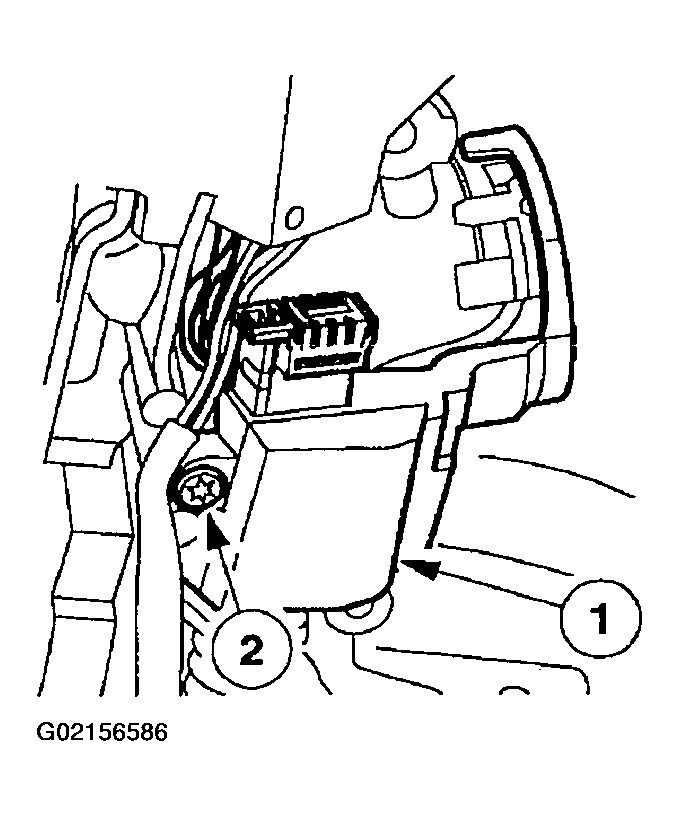

15. Install the passive anti-theft system (PATS) transmitter.
    1. Position the PATS transmitter to the steering column.
    2. Install the PATS transmitter retaining screw.
    Fig 14: Installing PATS Transmitter

    Courtesy of FORD MOTOR CO.
16. Install the tilt wheel handle and shank.
    Fig 15: Installing Tilt Wheel Handle & Shank

    Courtesy of FORD MOTOR CO.
17. If using the same clockspring, remove the tape.

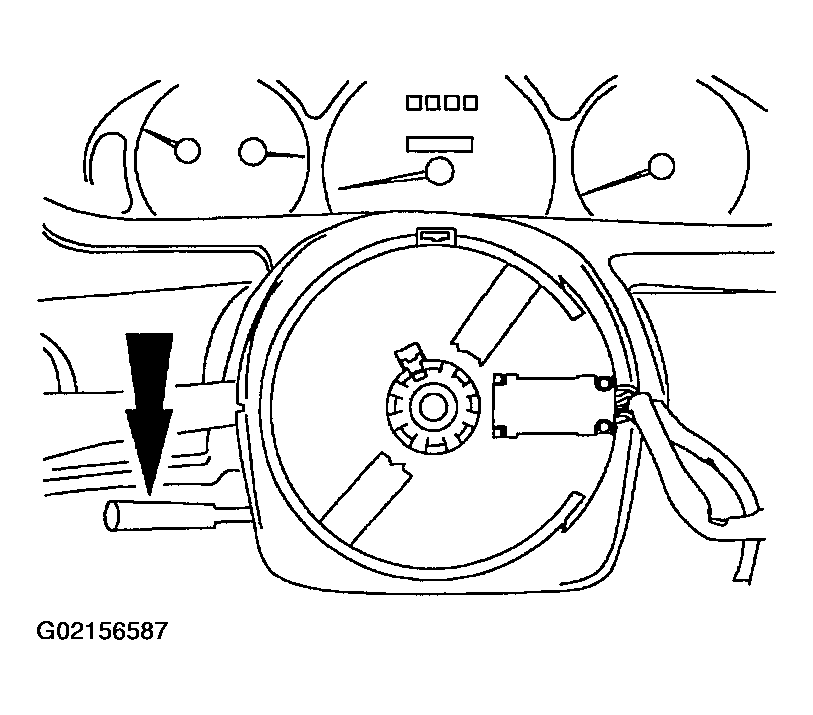

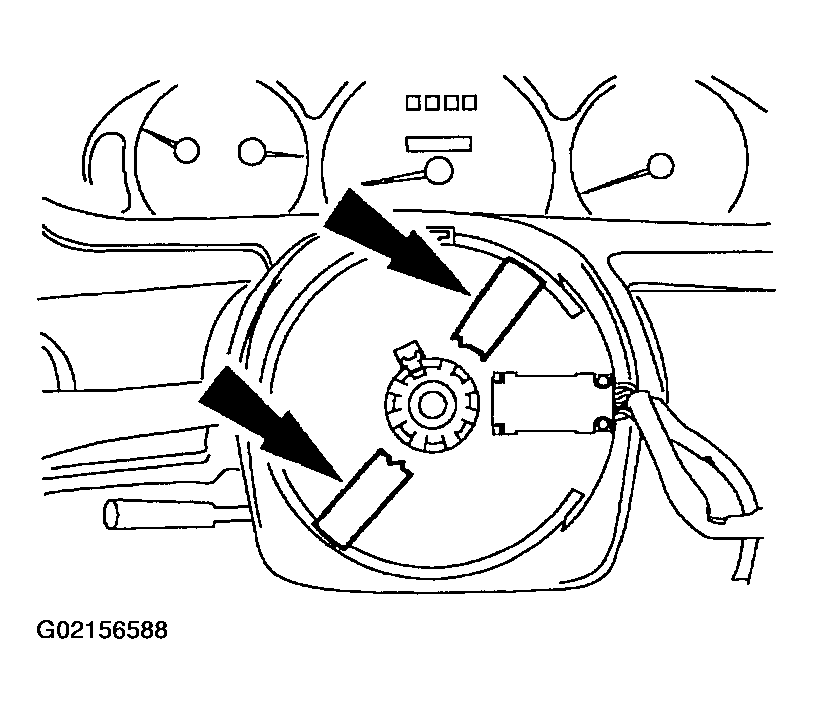

    Fig 16: Removing Tape

    Courtesy of FORD MOTOR CO.
WARNING: To avoid the risk of serious personal injury, read and follow all warnings, notes and instructions in the reactivation procedure.
18. Reactivate the supplemental restraint system (SRS). Refer to REACTIVATION .
