2002 Mercury Sable LS PremiumFACTORY OEM SERVICE PROCEDURE
Steering Column-Console Shift: Disassembly
- Remove the steering column (3C529). Refer to COLUMN .

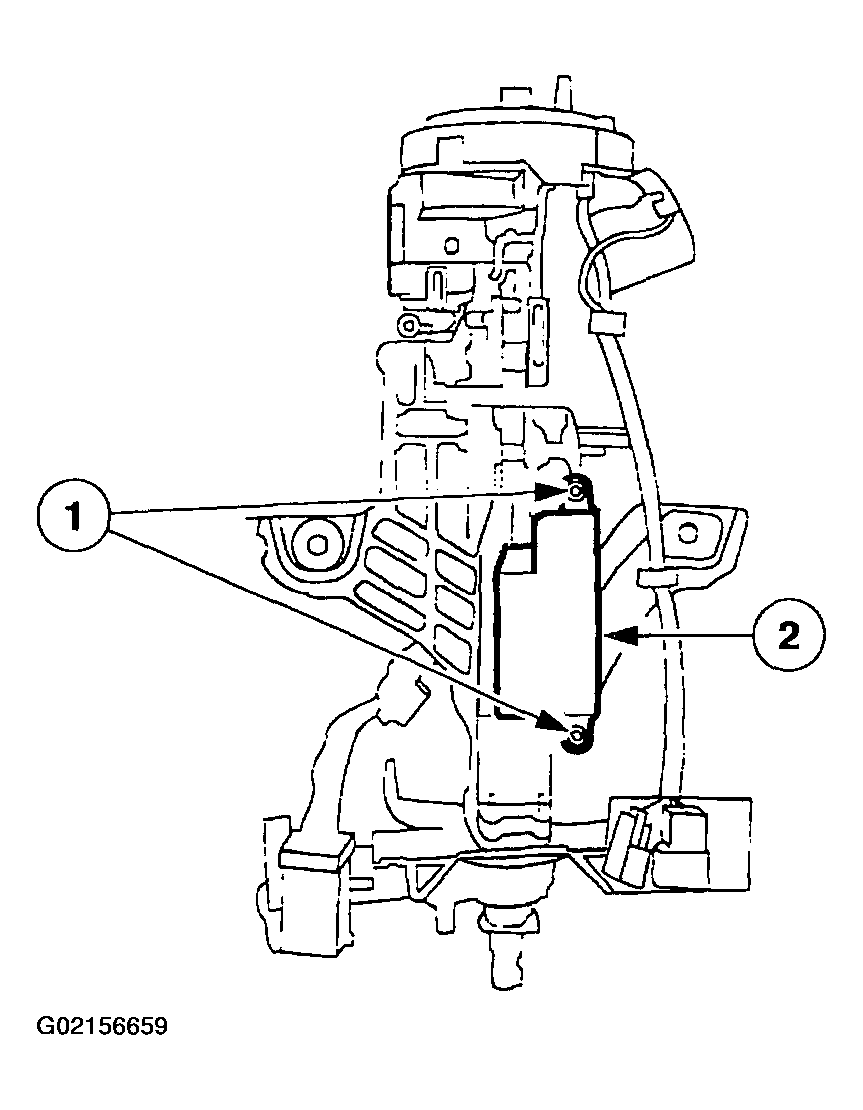

- Remove the ignition switch (11572).
- Remove the screws.
- Remove the ignition switch.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the steering column removal and installation procedure.
CAUTION:
Carefully note the position of the steering column lock gear, bearing and retainer prior to removal.
