2002 Mercury Sable LS PremiumFACTORY OEM SERVICE PROCEDURE

General Procedures: Sprockets

    WARNING: To avoid the possibility of personal injury or damage to the vehicle, do not operate the engine with the hood open until the fan blade has been examined for possible cracks and separation.

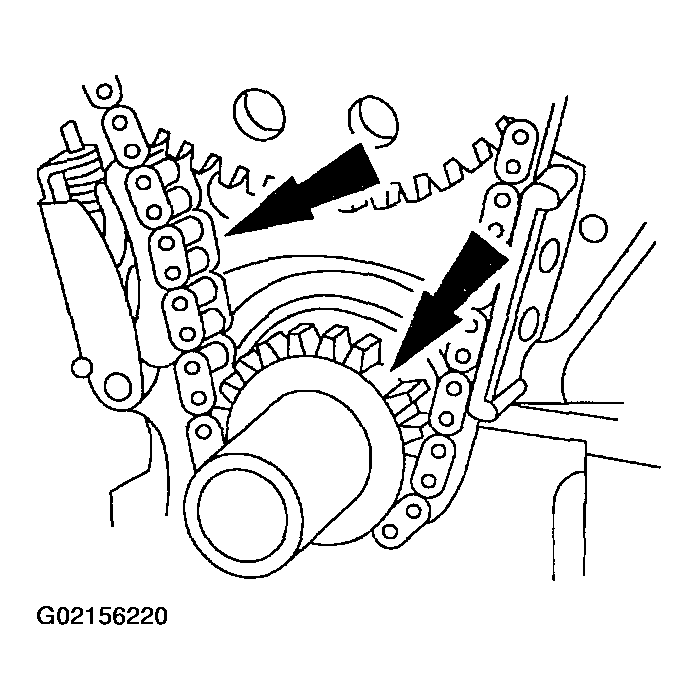

    Fig 1: Inspecting Timing Chain & Sprockets
    G02156220Courtesy of FORD MOTOR CO.

    If a component fails to meet the specifications, it is necessary to install a new component or refinish. If the component can be refinished, wear limits are provided as an aid to making a decision. A new component must be installed for any component that fails to meet specifications and cannot be refinished.
  1. Inspect the timing chain/belt and the sprockets.
