Power Window Master Switch

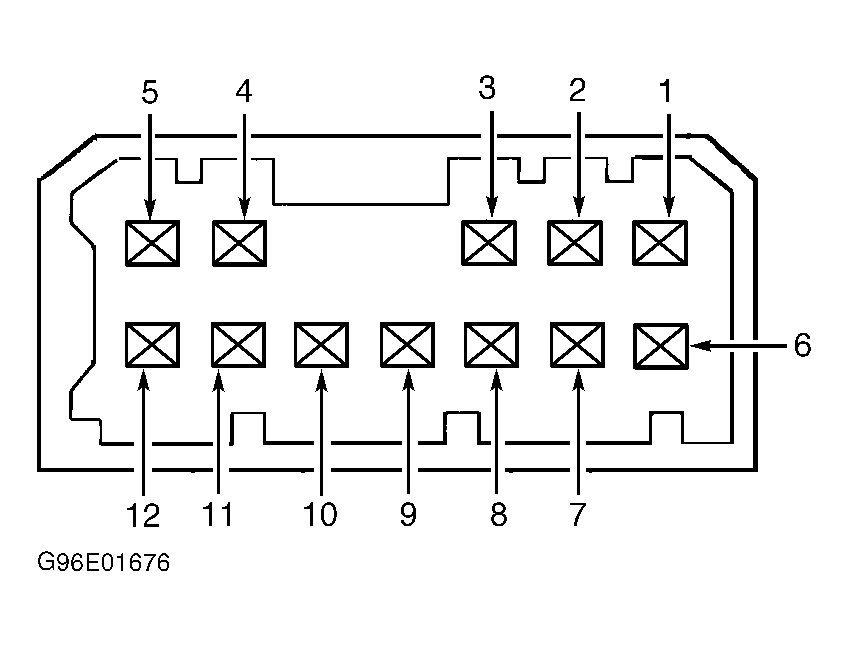

Disconnect power window master switch connector. Using an ohmmeter, measure resistance between indicated terminals with switch in specified position. See POWER WINDOW MASTER SWITCH RESISTANCE (FRONT POWER) or POWER WINDOW MASTER SWITCH RESISTANCE (FRONT & REAR POWER) table. See Fig 1 or Fig 2 . If resistance is not as specified, replace power window master switch.
| Switch Position | Terminals No. | Ohms | |
|---|---|---|---|
| Left Window Switch | |||
| Up | 1 & 2; 6 & 7 | Less Than 5 | |
| Down | 1 & 7; 2 & 6 | Less Than 5 | |
| Right Window Switch | |||
| Up | 1 & 12; 6 & 11 | Less Than 5 | |
| Down | 1 & 11; 6 & 12 | Less Than 5 | |
| Switch Position | Terminals No. | Ohms | |
|---|---|---|---|
| Left Front Window Switch | |||
| Up | 8 & 16; 13 & 15 | Less Than 5 | |
| Down | 8 & 13; 15 & 16 | Less Than 5 | |
| Right Front Window Switch | |||
| Up | 9 & 16; 10 & 13 | Less Than 5 | |
| Down | 9 & 13; 10 & 16 | Less Than 5 | |
| Left Rear Window Switch | |||
| Open | 5 & 16; 7 & 13 | Less Than 5 | |
| Closed | 5 & 13; 7 & 16 | Less Than 5 | |
| Right Rear Window Switch | |||
| Open | 1 & 16; 2 & 13 | Less Than 5 | |
| Closed | 1 & 13; 2 & 16 | Less Than 5 | |
