Passenger's Power Window Switch

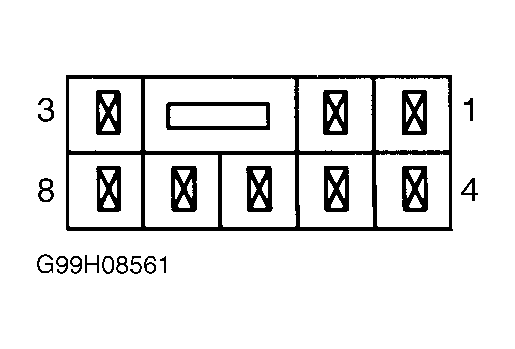

Disconnect passenger's power window switch connector. Using an ohmmeter, measure resistance between indicated terminals with switch in specified position. See PASSENGER'S POWER WINDOW SWITCH RESISTANCE table. See Fig 1 . If resistance readings are not as specified, replace passenger's power window switch.
| Switch Position | Terminals No. | Ohms |
|---|---|---|
| Up | 2 & 3; 7 & 8 | Less Than 5 |
| Down | 2 & 3; 6 & 7 | Less Than 5 |
