2000 Mercury Villager BaseFACTORY OEM SERVICE PROCEDURE
Test A: Locks Inoperative Using Key
- Lock and unlock door locks using master window/door lock switch. If door locks operate properly, go to next step. If door locks do not operate properly, see POWER DOOR LOCKS - VILLAGER article for further testing information.
- Lock doors using driver and passenger key lock switch. If all doors lock from each key lock switch, go to step 6 . If doors do not lock from both key lock switches, go to next step. If doors do not lock from only one key lock switch, go to step 4 .

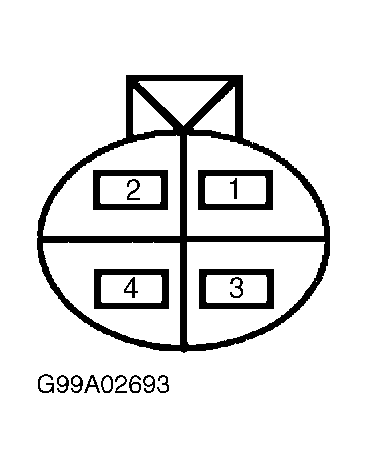

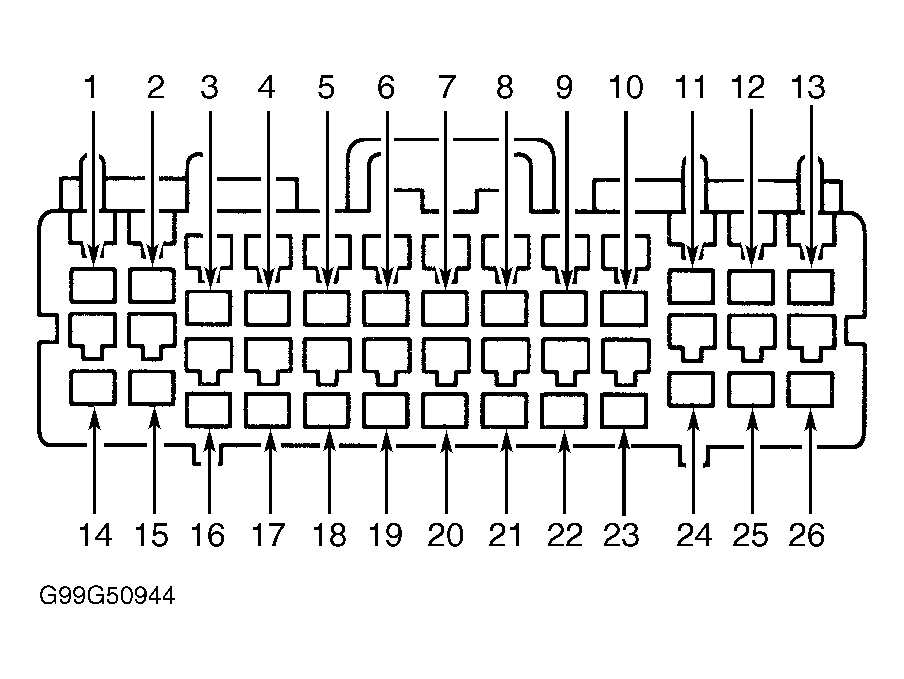

- Turn ignition off. Disconnect Smart Entry Control (SEC)/timer module Gray 26-pin connector C2032B located behind top center of dash. Remove driver door trim panel. Disconnect driver key lock switch Gray 4-pin connector C515 located in driver door. Measure resistance of Red wire between driver key lock switch connector C515 terminal No. 1 and SEC/timer module connector C2032B terminal No. 8. See Fig 1 and Fig 2 . If resistance is less than 5 ohms, replace SEC/timer module. Recheck system operation. If resistance is greater than 5 ohms, repair open in Red wire. Recheck system operation.
