1992 Mercury Tracer Base, 4D Wagon, Automatic
Removal (Spring Lock Coupling)
1992 Mercury Tracer Base, 4D Wagon, AutomaticSECTION Removal (Spring Lock Coupling)

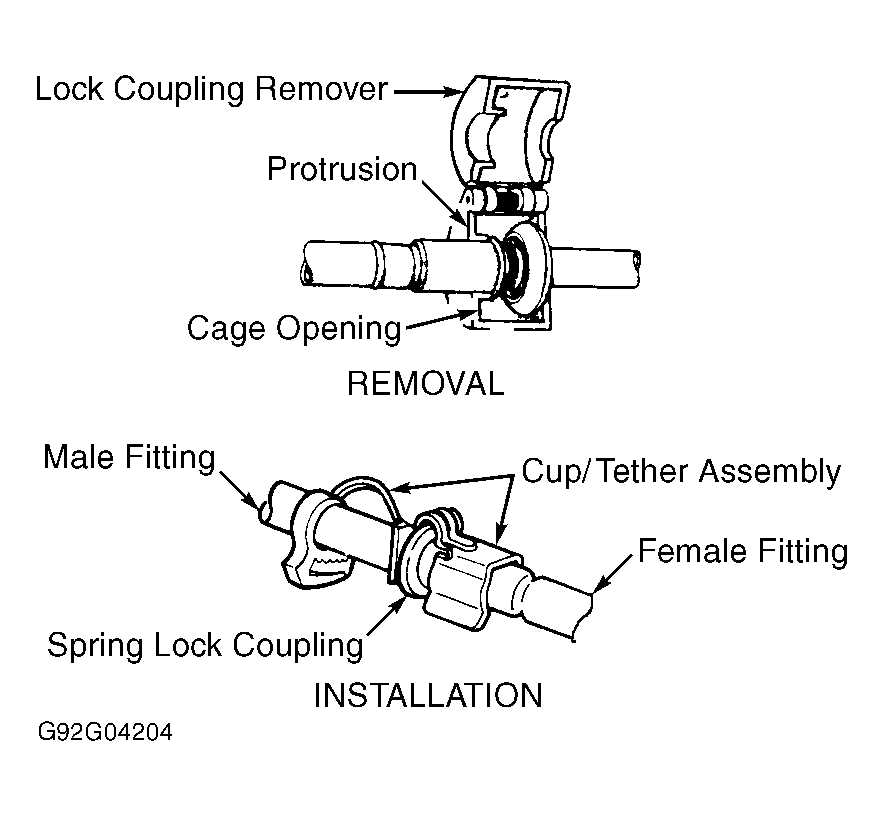

- Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE. Using Spring Lock Coupling Remover (D87L-9280-A for 3/8" or D87L-9280-B for 1/2"), remove retaining clip from coupling. Place remover over coupling so protrusion is positioned on cage opening side of coupling. See Fig 1 .
- Close remover over coupling. Push remover into cage opening to release female fitting from garter spring. Separate male and female halves of coupling. Remove tool from disconnected spring lock coupling.
