A7: Check Power Window Main Switch

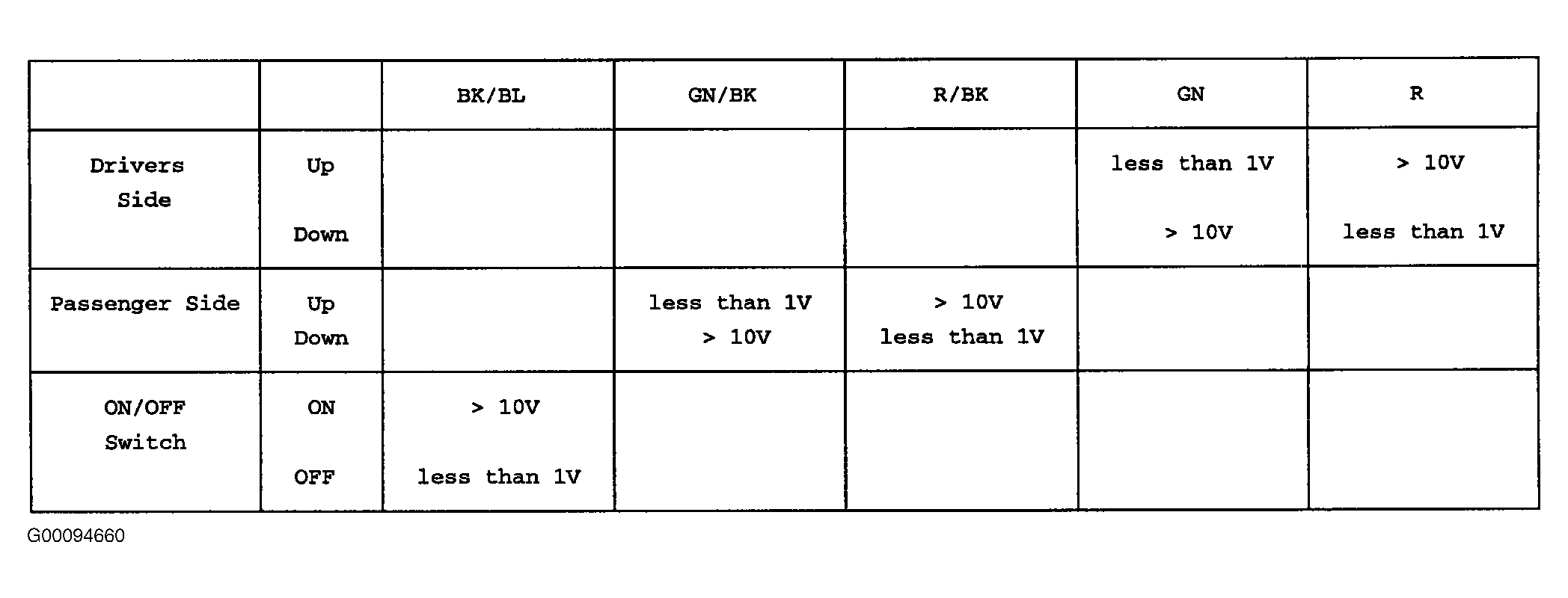

Turn ignition on, with engine off. Locate power window main switch. Check voltages between Black wire and and other terminals. See WIRING DIAGRAMS . See Figure . If all voltages are not correct, replace power window main switch. If all voltages ARE correct, and driver's windows does not work, go to A11: Check Power Window Motor Circuit Continuity . If all voltages ARE correct and passenger's window does not work, go to A8: Check Wire To Passenger Switch .
