1987 Mercury Lynx XR3FACTORY OEM SERVICE PROCEDURE
Inertia Switch: Notes
- In event of a collision, electrical contacts in inertia switch open and fuel pump automatically shuts off. Fuel pump will shut off even if engine does not stop running. Engine will stop due to lack of fuel.

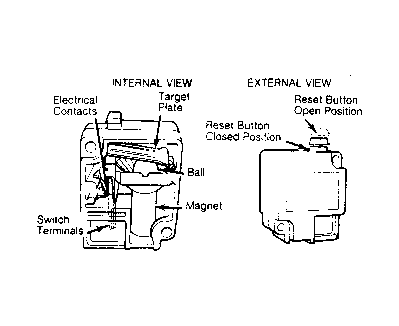

- It is not possible to restart engine until inertia switch is manually reset. Inertia switch is located behind trim panel on the left side of the trunk. To reset inertia switch, depress button on switch. See Fig 1 .
CAUTION:
DO NOT
reset inertia switch until fuel system has been inspected for leaks.
