1986 Mercury Sable LS, 4D SedanFACTORY OEM SERVICE PROCEDURE
Chain Cover: Reassembly
- Using arbor press and Sprocket Bearing Replacer (T86P-70043-B), install sprocket support needle bearing. Install manual valve detent spring and position tab in hole. Tighten bolt to specifications. Start bi-metallic retaining pins in cover.

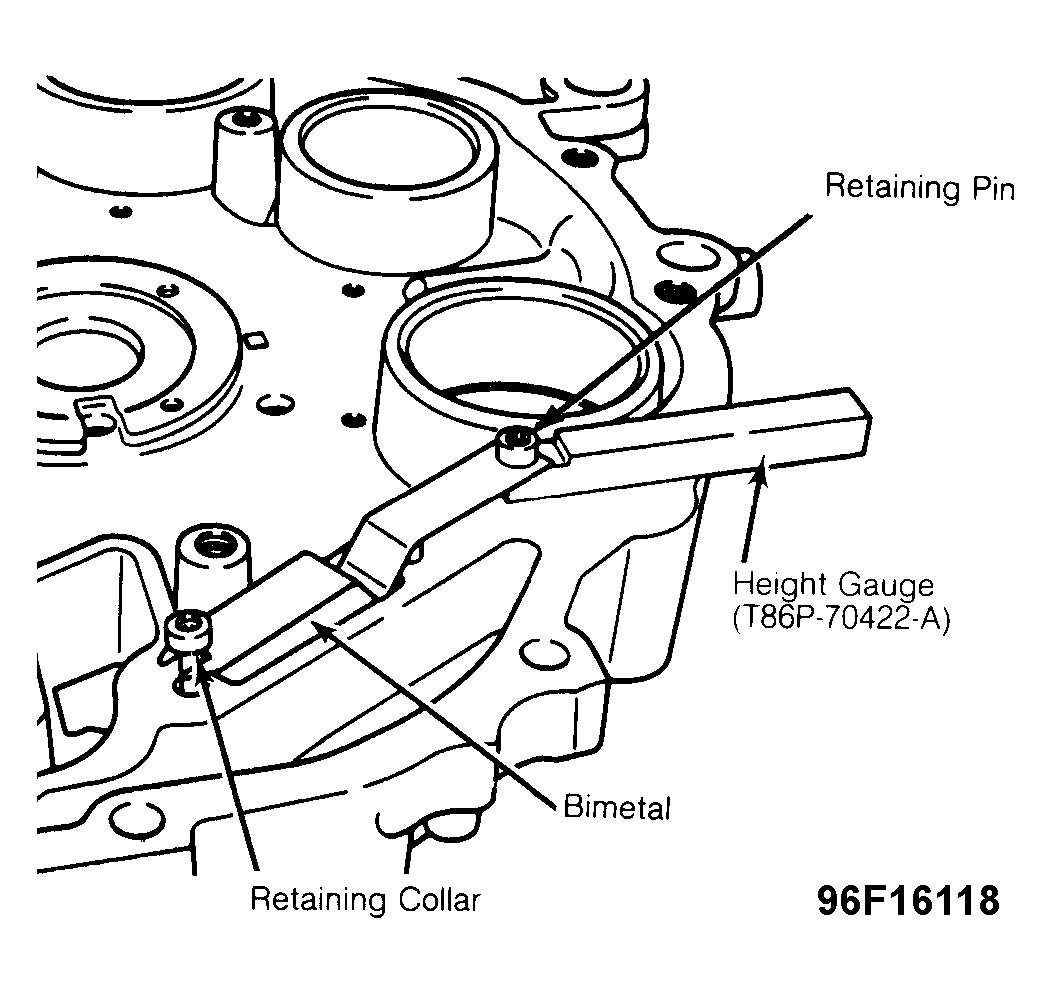

- Place end of bi-metallic with hole, over front retaining pin. Install retaining collars. Place Height Gauge (T86P-70422-A), against pin and under bi-metallic. Gently tap collar onto pin until it seats against gauge. See Fig 1 .
- Engage slotted end of bi-metallic under rear retaining pin. Use gauge and gently tap collar onto pin. Remove slotted end of bi-metallic and set center retaining pin height with gauge. Position slotted ends of plate onto rear and middle pins.
