1986 Mercury Sable LS, 4D SedanFACTORY OEM SERVICE PROCEDURE

Description & Preliminary Information

Ensure battery is fully charged. Disconnect and reconnect battery to reset system. If any of the specific complaints that follow seem to be the problem, go to the appropriate Pinpoint Test. If none of the following complaints are the problem, go to step 1).

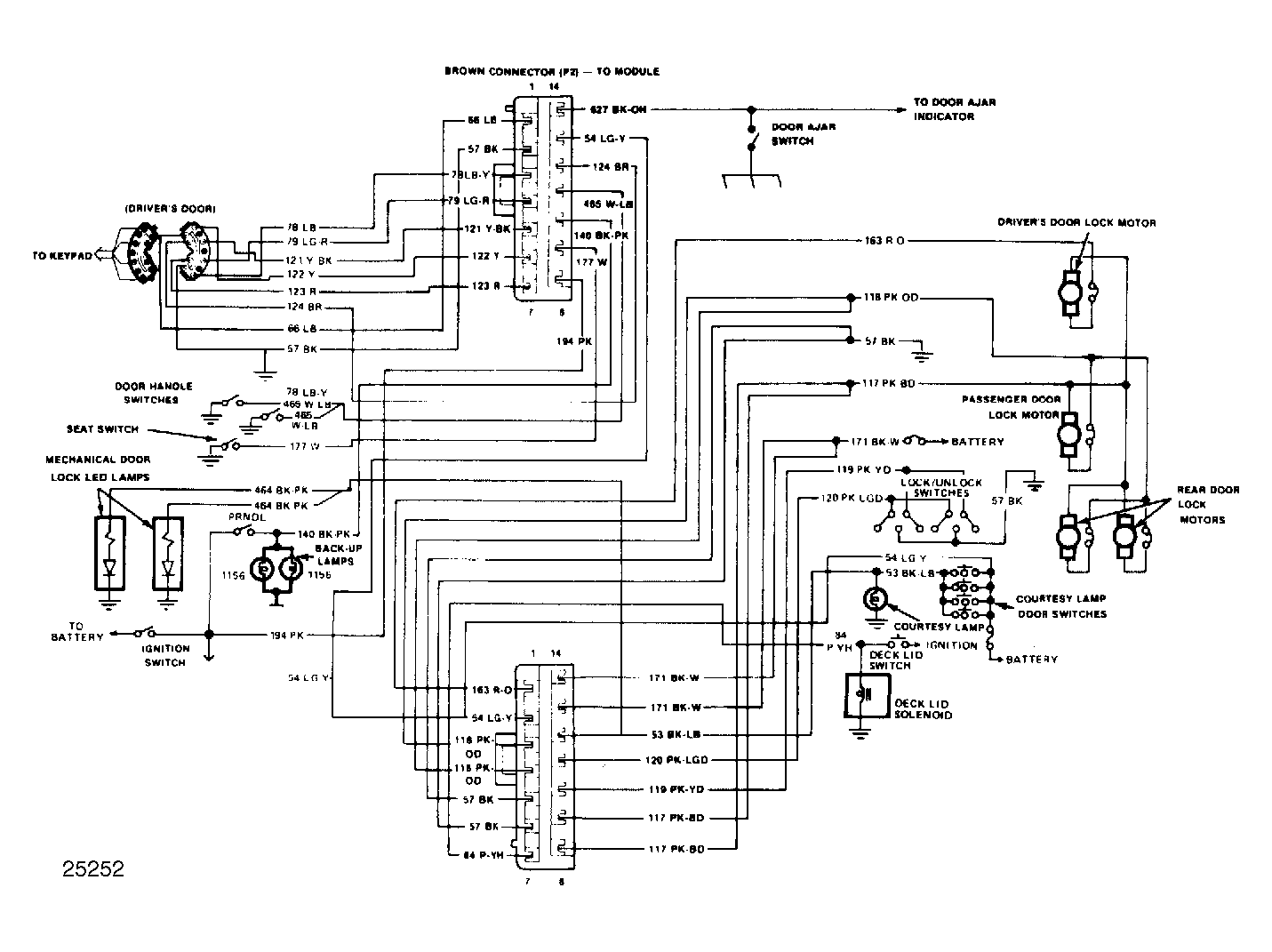

Fig 1: Ford Motor Co. Keyless Entry System Wiring Diagram
G25252
KEYLESS ENTRY PROBLEMS & TESTS

Complaint Pinpoint Test/Step
Locks bind when manually operated E/1)
No operation in freezing temperatures E/7)
Operates only with engine running E/8)
Operates intermittently E/6)
No illuminated entry manually, but operates w/Keyless Entry D/1)
